Description
This Analog to Digital Audio Converter is designed for either home or professional audio switching. It convert analog stereo audio signal from R/L input to Coaxial and Toslink outputs simultaneously. The output digital audio signal is 2-channel uncompressed LPCM (Linear Pulse Code Modulation) with sampling rate at 48 KHz. This Converter is small in size and quite easy to install.
Features:
- Convert your analog stereo audio signal from R/L input to Coaxial and Toslink outputs simultaneously.

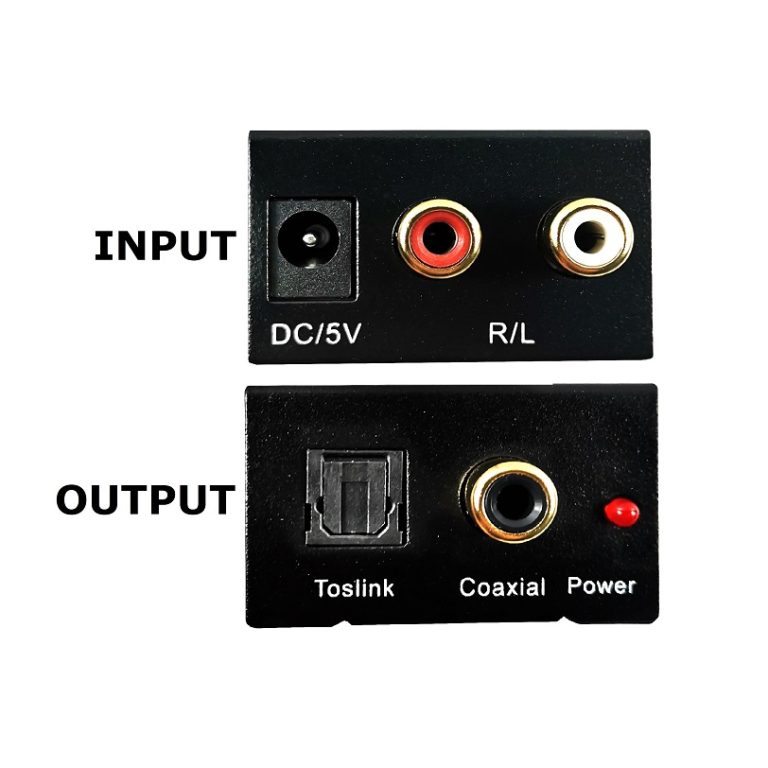

- Inputs: Left and Right (Red/White) RCA Stereo Analog Connections.
- Outputs: S/PDIF Digital Coaxial RCA and/or Optical Toslink Connections.
- Supports uncompressed 2-channel LPCM digital audio signal output.
- Supports output sampling rate at 48 KHz.
- Provides electromagnetic-noise-free transmission.
- Easy to install and simple to operate.
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 10 x 10 x 5 cm |
- Signal Input Audio: Stereo R/L
- Signal Output Audio: LPCM
- Input Audio Connector: 2 x RCA (R/L)
- Output Audio Connector: Toslink, 1 x RCA (Coaxial)
- Audio Connector: Toslink Audio and Digital Audio
- Operating Frequency: 48KHz
- Dimension (mm): 50 (L) x 40 (W) x 35 (H)
- Weight: 78g
- Operating Temperature: 0 Celsius to 70 Celsius
- Operating Humidity: 10% to 85% RH (no condensation)
- Storage Temperature: -10 Celsius to 80 Celsius
- Storage Humidity: 5% to 90% RH (no condensation)
- Power Supply: 5V DC @ 1A
- Power Consumption (max): 0.5w
