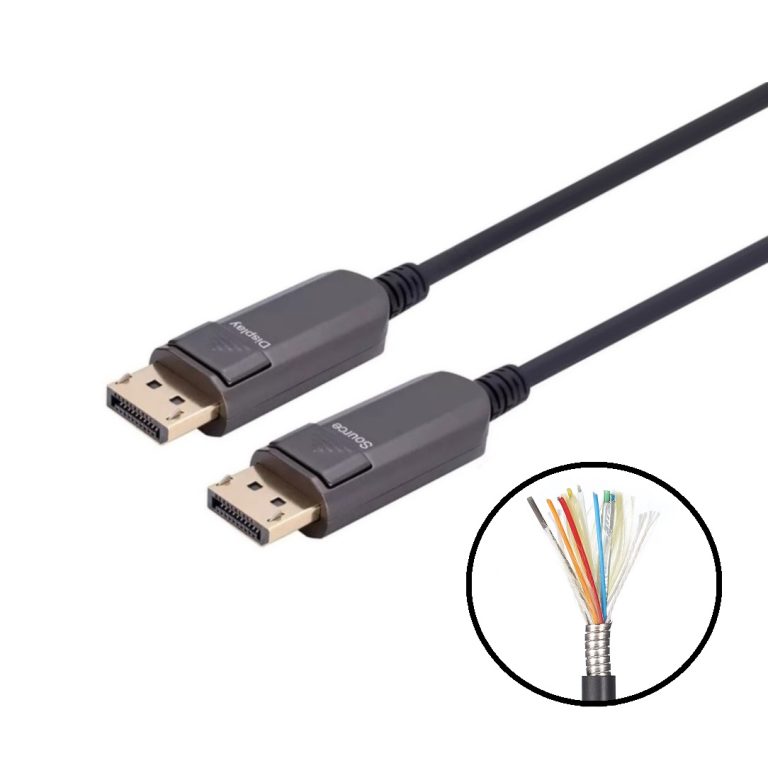

This is a hybrid Armored DP 1.4 AOC Audio/Video cable, able to transmit UHD signal through optical fiber, over long lengths up to 100m, with no RFI, EMI interference, giving stable and better signal quality, supporting 32.4Gbps bandwidth, 8K@60 video resolution in DP 1.4 Standard.
It is a mature & competitive solution in the high speed data transmission market. Plug and play, with no need for external power. This Hybrid cable can be applied to outdoor Displays, staging and rental projects.
Features:
- Support 8K@60H , Supports HBR3, HDCP 1.4 / 2.2; very good compatibility;
- Support DP 1.4 standard, bandwidth can reach 32.4Gbps (8.1 Gbps per channel)
- Support length up to 100m max, length custom is available;
- Hybrid fiber and copper, much more slim and light;
- Cable OD 5.8 mm, stainless steel reinforced.
- Low RFI / EMI profile for sensitive applications
- Plug and play.

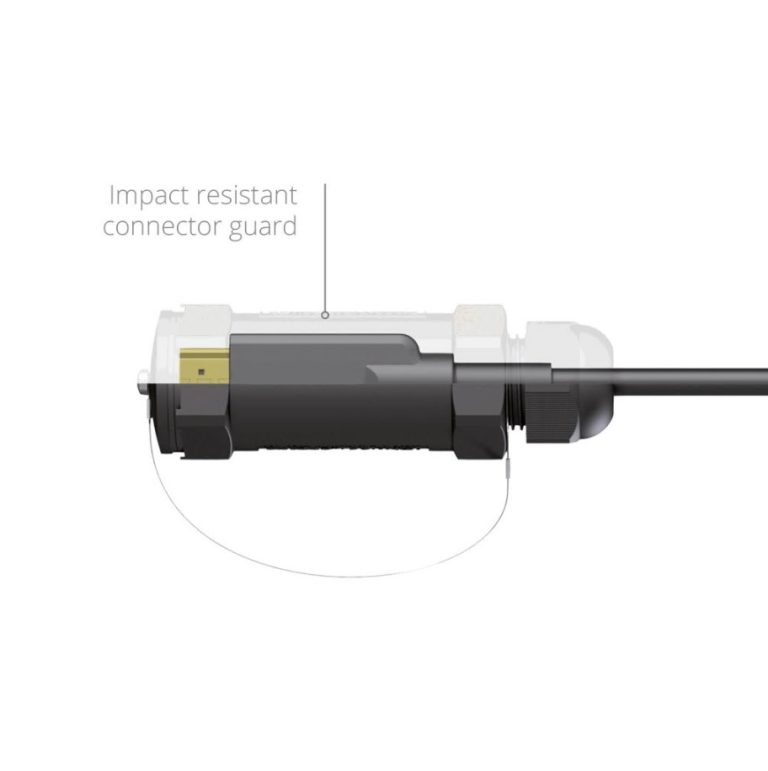

- Both DP connectors are protected by IP68-rated waterproof hood and caps. with no damage or decline in performance.
Applications:
- Medical Imaging Equipment;
- Airplane On-board Video System;
- Car Service Center big screen show Video System;
- TV Broadcast Station;
- Conference room Video System;
- Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer;
- Digital Home Theatre;
- LED signboards and panel information displays for Airports, Stadiums and Outdoor;
- Advertising, Auditorium, and Kiosk;
- Traffic control;
- Factory Automation Systems.
*Remarks: This is a uni-directional cable. Please ensure correct connection with connector ends labelled with “source” and “display”. The cable will not be damaged, nor will it cause the connected devices to be damaged, due to wrong connection.
