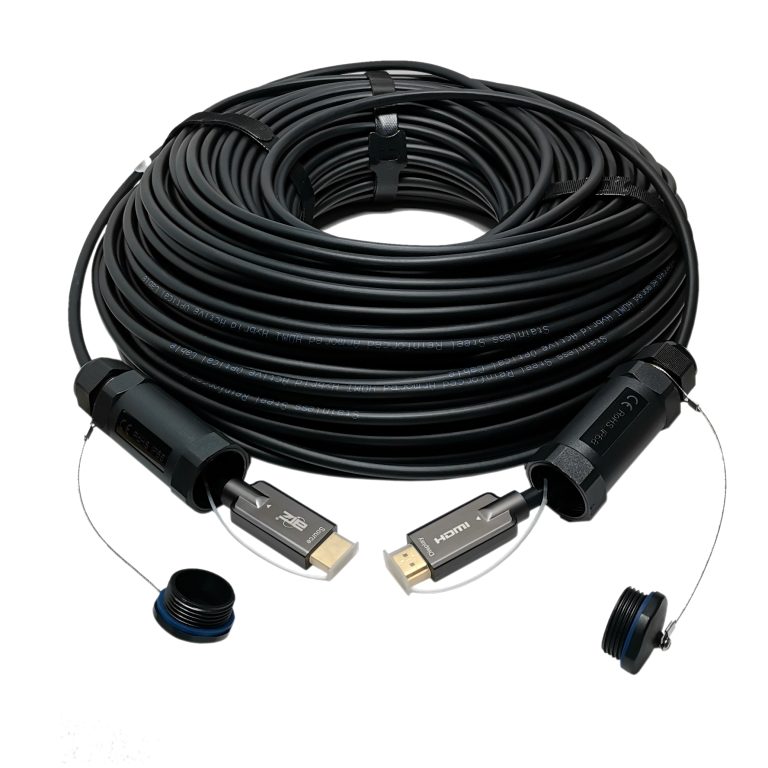

This armored HDMI Active Hybrid Cable is the most competitive long reach HDMI interconnection solution on the market. It supports HDMI Data Rate of 18Gbps with light weight, flexible and ultra-small long-term bending radius (45mm). It is reinforced with a stainless steel and Kevlar armour to protect the fibers, with heavy-duty connectors with covers, this cable is perfectly suited for the harshest use and abuse at all environmental and surrounding conditions.

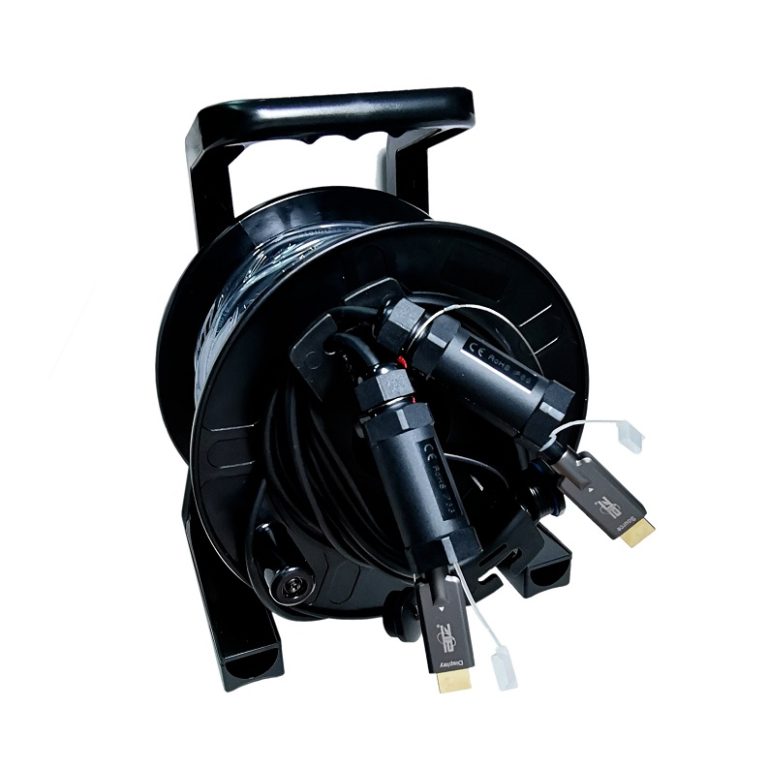

*Optional: Cable Reel & Waterproof cap
Features:
- Low Power Consumption: 250mW (max);
- Plug and Play;
- Compatible with HDMI 2.0 standard;

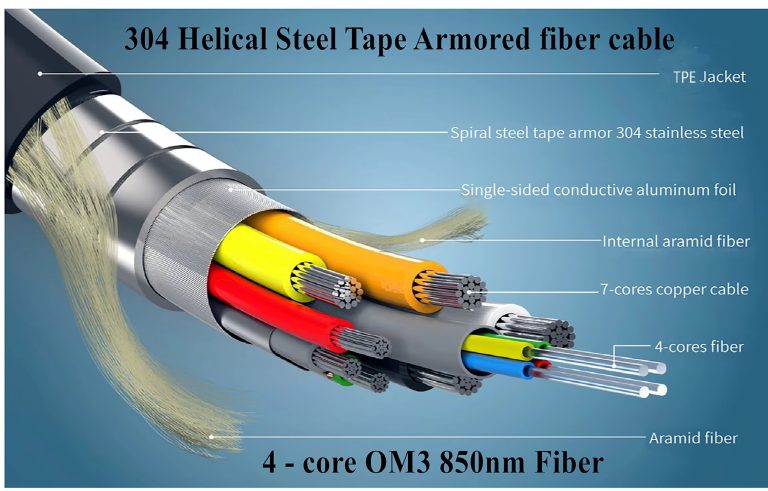

- Hybrid 4-core optical fiber transmits TMDS signals, 7-core tinned copper transmits signalling protocol. Anti-electromagnetic interference, No attenuation.
- Support long transmission distance, the longest over 150 meters. (custom length available)
- Imported Photoelectric conversion chip to improve compatibility, stability and service life.
- Support HDCP2.3;
- Self-detecting function for EDID information;
- No loss of signal – delivering crystal clear digital images instantly;
- Supports computer resolutions to 1080P and 4K2K(60P);
- Supports 16bit/24bit (RGB/YCbCr) Deep Color depth, HDR, CEC, 3D and ARC

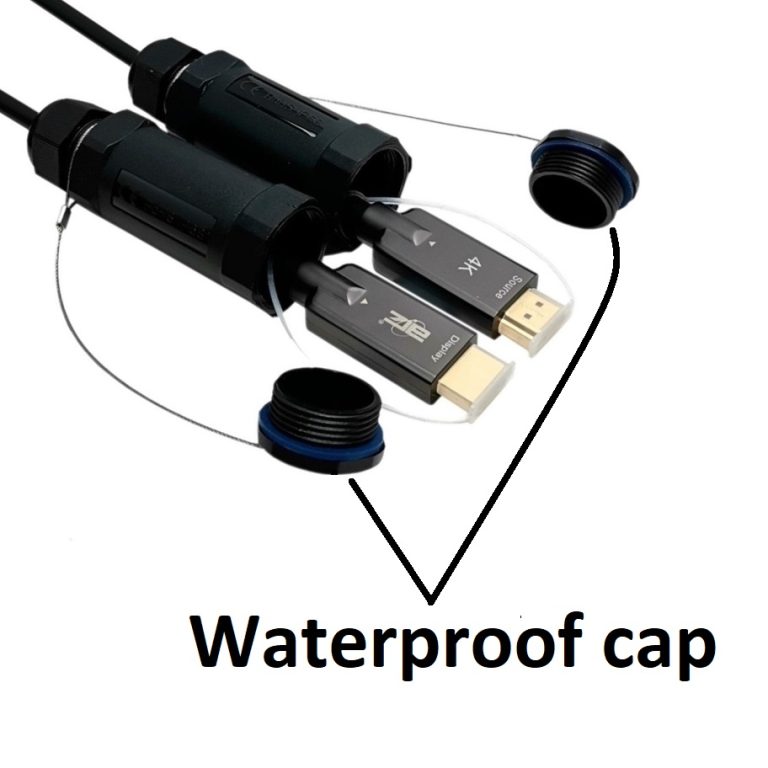

- Both HDMI connectors can be further protected by IP68-rated waterproof hood and caps.
- Crush Resistance: Long term100kg; Short term 200kg.
- Zinc alloy shell Anti-electromagnetic interference increase wear resistance and improve service life.
*Remarks: This is a uni-directional cable. Please ensure correct connection with connector ends labelled with “source” and “display”. The cable will not be damaged, nor will it cause the connected devices to be damaged, due to wrong connection.
Applications:
- Digital Signage
- LED signboards in streets and in stadiums
- Medical Imaging Equipment
- Airplane On-board Video System
- Home Theater
- Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer
- TV Broadcast Station
- Conference Room Video Equipment
- Security systems
Optional: Cable Reel & Waterproof cap
