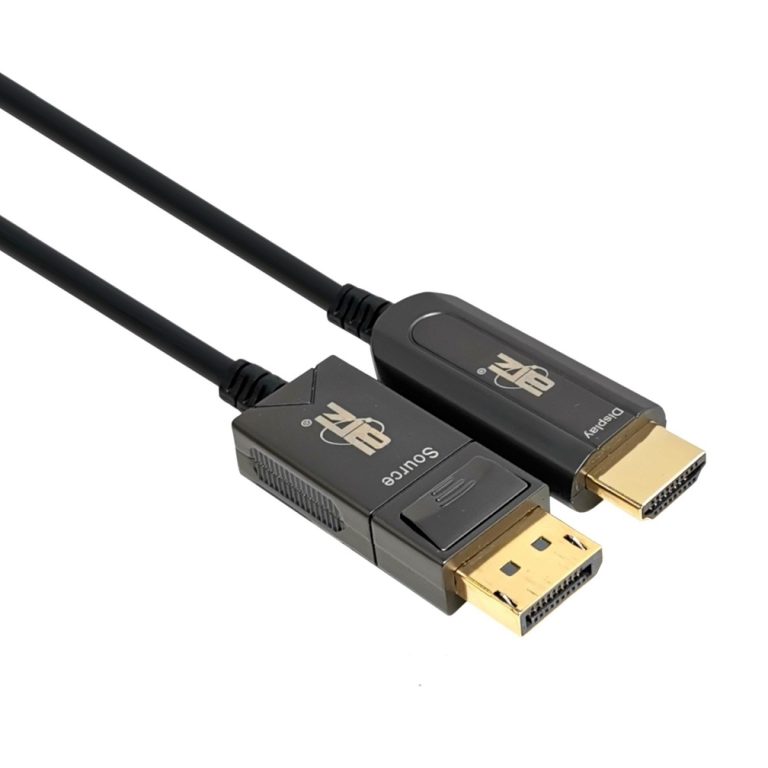

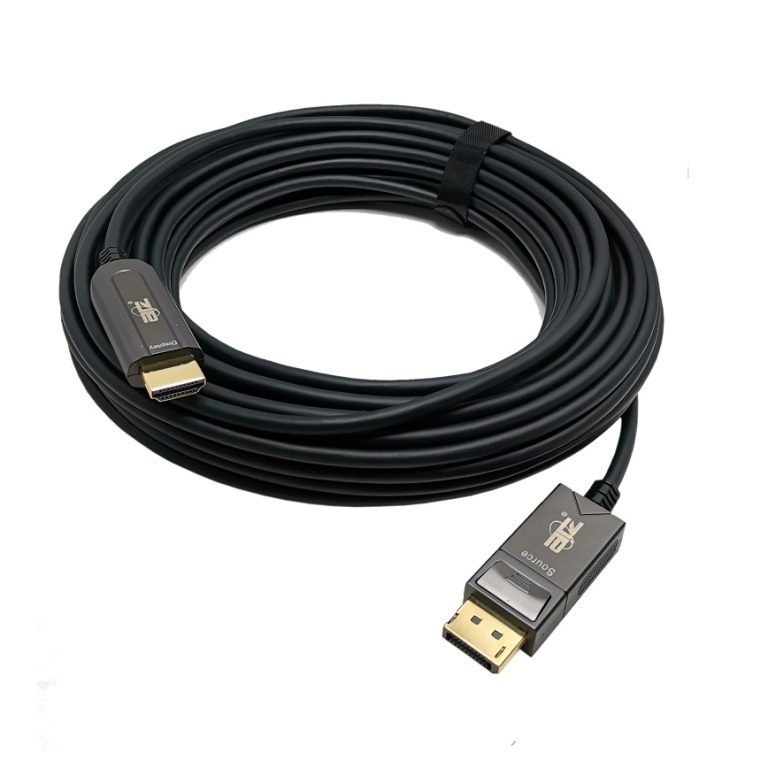

ATZ DP1.4 to HDMI2.0 Active Hybrid Cable is the most competitive long reach Displayport interconnection solution on the market. It supports 18Gbps bandwidth with light-weight, flexible and ultra-small long-term bending radius (10mm) hybrid cable. With our advanced optical engine embedded. This DP to HDMI Hybrid Cable provides full DP to HDMI signal integrity, support up to 60m maximum length, plug and play. No external power required.
*Remarks: This is a uni-directional cable. Please ensure correct connection with connector ends labelled with “to source” and “to display”.
The cable however will not be damaged, nor will it cause the connected devices to be damaged, due to wrong connection.
Features:
- Up to 60m Maximum Length.(Custom Length Available)
- Low Power Consumption: <0.5W each end
- Plug and Play.
- Compatible with HDMI 2.0 standard.
- Support HDCP.
- Self-detecting function for EDID information
- No loss of signal – delivering crystal clear digital images instantly.
- Supports computer resolutions to 1080P and 4K2K(60P).
- Hybrid optical cable with fiber and copper wire
- Length: 10m/15m/20m/25m/30m/40m/50m/60m
Applications:
- Digital Signage
- LED signboards in streets and in stadiums
- Medical Imaging Equipment
- Airplane On-board Video System
- Home Theater
- Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer
- TV Broadcast Station
- Conference Room Video Equipment
- Security systems
Absolute Maximum Rating
| Parameter | Symbol | Min | Max | Unit |
| Power Supply Voltage | VCC | 3.0 | 3.3 | V |
| Operating Temperature | Top | 0 | 50 | °C |
| Storage Temperature | Ts | -40 | 70 | °C |
| Relative Humidity | Hs | 10 | 80 | %RH |
Recommended Operating Conditions
| Parameter | Symbol | Min | Typical | Max | Unit |
| Power Supply Voltage | VCC | 3.0 | 3.3 | 3.4 | V |
| Operating Temperature | Top | 0 | 50 | °C |
