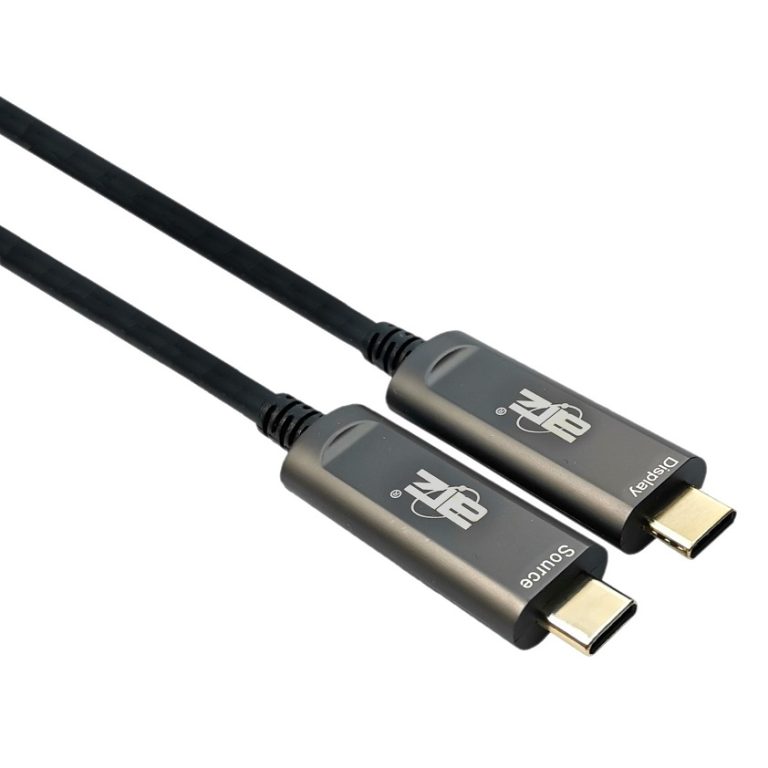

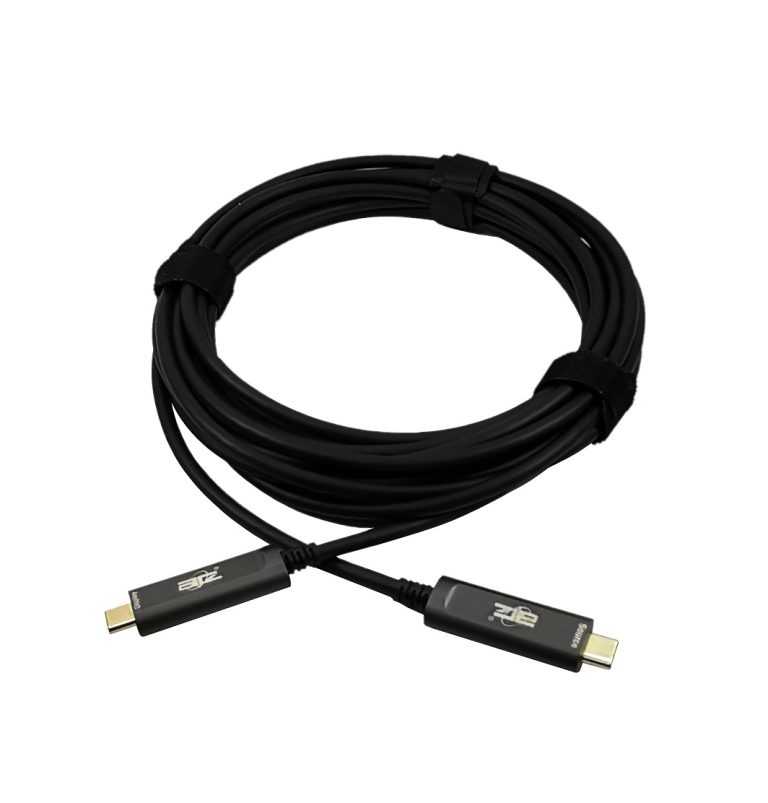

ATZ AOC-UC3100V-xxM


USB Type-C AOC -Video only DP1.4, 4k@60 21.6Gbps (5M/8M/10M/15M/20M/25M/30M)


Share it:

ATZ USB3.1 Type-C AOC (video only) not only support lengths up to 30m, but produces stable signal quality, with no worry about EMI. It supports 21.6Gbps super speed, meets DP1.2 standard, and is the latest mature & state of art solution in the high speed video transmission market. This Active Optical fiber cable can be used with a computer with USB type C interface, wearable tech, TV, Display, Projectors…among them, any other audio/video transmission equipment.

Features:

  • Meet DP1.2 Standard, bandwidth can reach to 21.6Gbps super speed and is compatible with DP Alternate Mode;
  • Support length up to 30m.(Custom length is available);
  • Support 4K@60Hz/4K@30Hz/1080p/1080i/720p;
  • Support HDCP/EDID/CEC/3D;
  • Support two sides plug and play, support charging within 10m;
  • No RF interference, working stable in complex environments.
  • Lengths: 5M/8M/10M/15M/20M/25M/30M
tem Description
Connector Type USB Type C
Bandwidth 21.6Gbps
Power Consumption ≤0.5W
Supported Distance 30m
Operating Temperature -20℃~+70 ℃
Flammability UL13 Standard
Environment Protection ROHS

Absolute Maximum Ratings

Parameter Symbol Minimum Maximum Units
Supply Voltage VCC -0.5 5.5 V
Operating Temperature Top 0 70 °C
Storage Temperature Ts -40 85 °C
Storage Relative Humidity Hs 10 85 %RH

Recommended Operating Conditions

Parameter Symbol Minimum Typical Maximum Units
Supply Voltage VCC 4.75 5 5.25 V
Operating Temperature Top 0 50 °C
