ATZ USB 3.2 Type C-to-Type C AOC is hybrid copper and fiber cable in the market. Support 10Gbps super speed , meets USB3.2 Gen 2 standard, can downward compatible with USB 2.0/1.1, support max 50m. It is a mature & competitive solution in the high speed data transmission market.It is popularly used for VR gaming and camera where Super speed data transmission is required for longer transmission distances of up to 50m max. It allows for more stable signal quality, no EMI issues, support 10Gbps super speed, meets USB3.1 standard, and downward compatible with USB 2.0/1.1 (≥20m, downward compatible to USB2.0 only) It is a mature & state of art solution in the high speed data transmission market.
Features:
- Meet USB 3.2 Gen2 Standard, reach up to 10Gbps bandwidth super speed.
- Downward Compatible to USB2.0/1.1 (for ≥20m, downward compatible to USB2.0 only)
- Uncompressed signal and the image quality is not distorted.
- Hybrid copper and fiber cable, anti-interference, no radiation, strong resistance to EMI
- Standard USB Type C interface
- 850nm VCSEL and PIN photodetector
- Plug and play, support hot plug
- Cable OD less than Φ4.5 mm (4 fiber + 5 copper wire) for lighter application
- No external power supply required
- Support all major operating systems

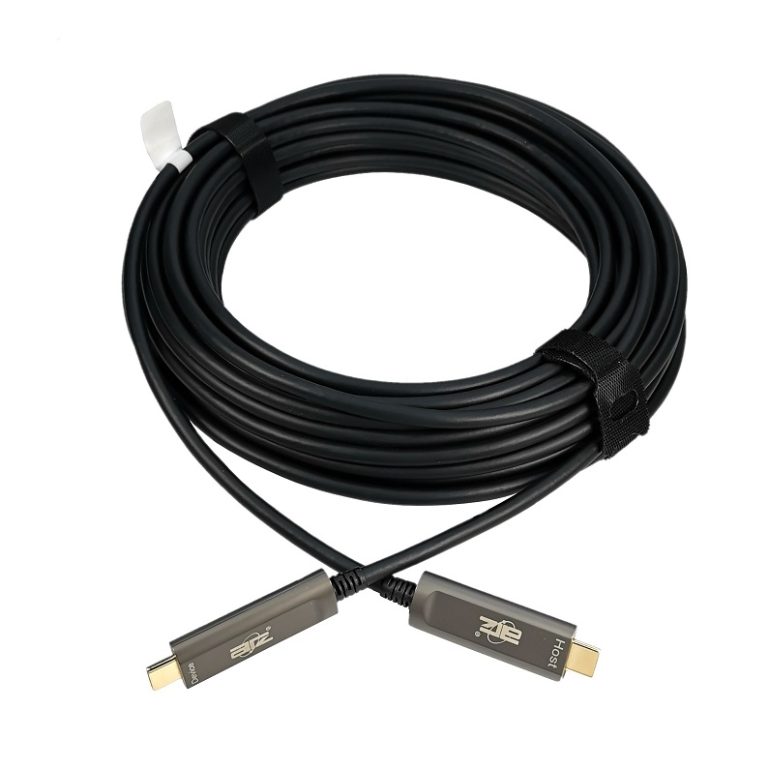

- Support max 50meters support customization.
- Support 5V 1.5A power maximum to the remote device. (≥20m, 5V/900mA)
Applications:
- Mobile Phone, PC, Cameras;
- VR,Mobile terminal
- Home Theatre;
- Medical Imaging Equipment;
- LED signboards in streets and in sports stadiums;
- TV broadcast Station;
- Airplane On-board Video System;
- Conference Room;
- Digital Signage;
- Advertising, Auditorium, and Kiosk;

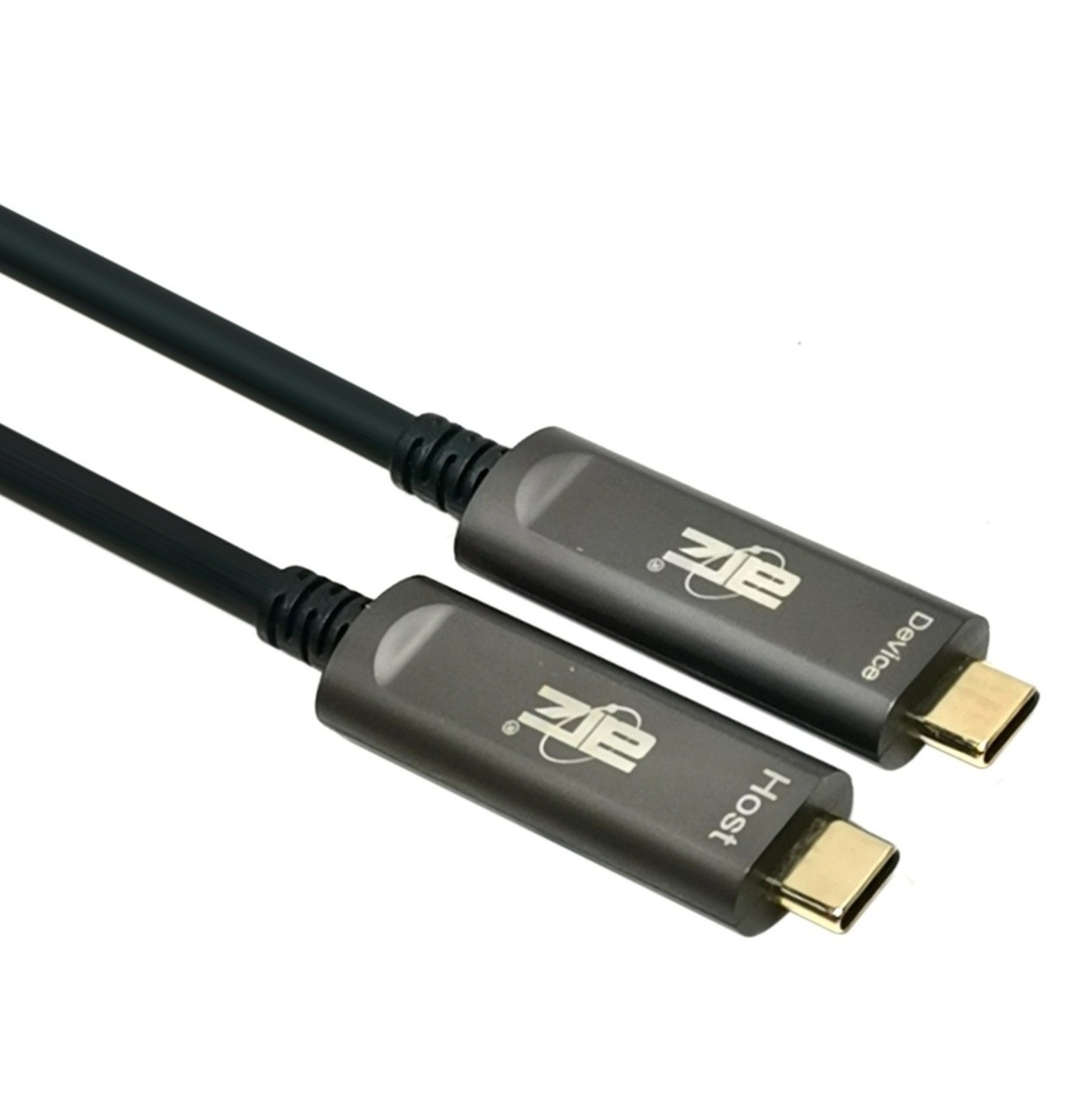

*Remarks: This is a uni-directional cable. Please ensure correct connection with connector ends labelled with “Host” and “Device”
