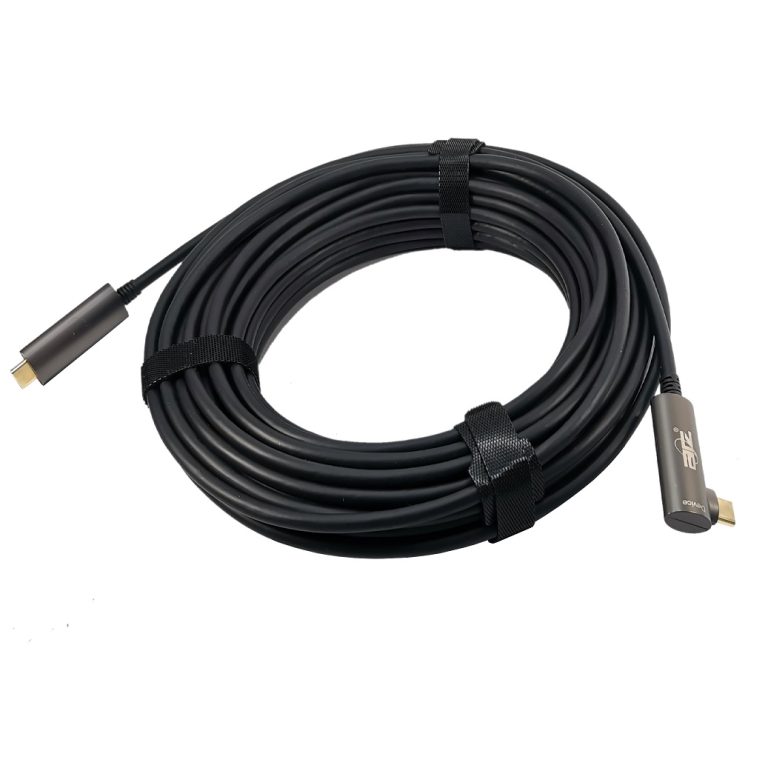

ATZ AOC-UC3120DRA-15M

Description

ATZ USB 3.2 Gen2 Type-C Active Optical cable with 90° right-angle end is popularly used for VR gaming and camera where Super speed data transmission is required for longer transmission distances of up to 15m max. It allows for more stable signal quality, no EMI issues, support 10Gbps super speed, meets USB3.2 standard, and downward compatible with USB 2.0/1.1. It is a mature & state of art solution in the high speed data transmission market.

Features:

• Meet USB 3.1 Gen2 Standard, reach up to 10Gbps bandwidth super speed
• Uncompressed signal and the image quality is not distorted.
• Hybrid copper and fiber cable, anti-interference, no radiation, strong resistance to EMI
• Standard USB Type C interface
• 850nm VCSEL and PIN photodetector
• Plug and play, support hot plug
• Cable OD less than Φ4.5 mm, lighter application
• No external power supply required
• Support 5V 1.5A power maximum to the remote device
• Applicable length: 0.2-15 meters, support other distance customization.

Applications:

• Mobile Phone, PC, Cameras;
• Home Theatre;
• Medical Imaging Equipment;
• LED signboards in streets and in sports stadiums;
• TV broadcast Station;
• Airplane On-board Video System;
• Conference Room;
• Digital Signage;
• Advertising, Auditorium, and Kiosk;

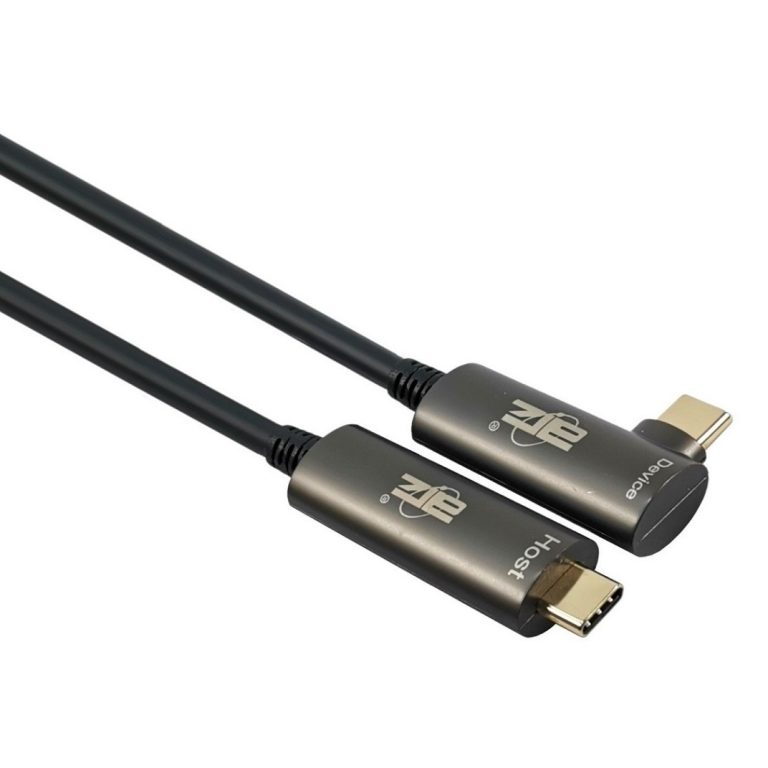

*Remarks: This is a uni-directional cable. Please ensure correct connection with connector ends labelled with “Host” and “Device”. The cable will not be damaged, nor will it cause the connected devices to be damaged, due to wrong connection.
