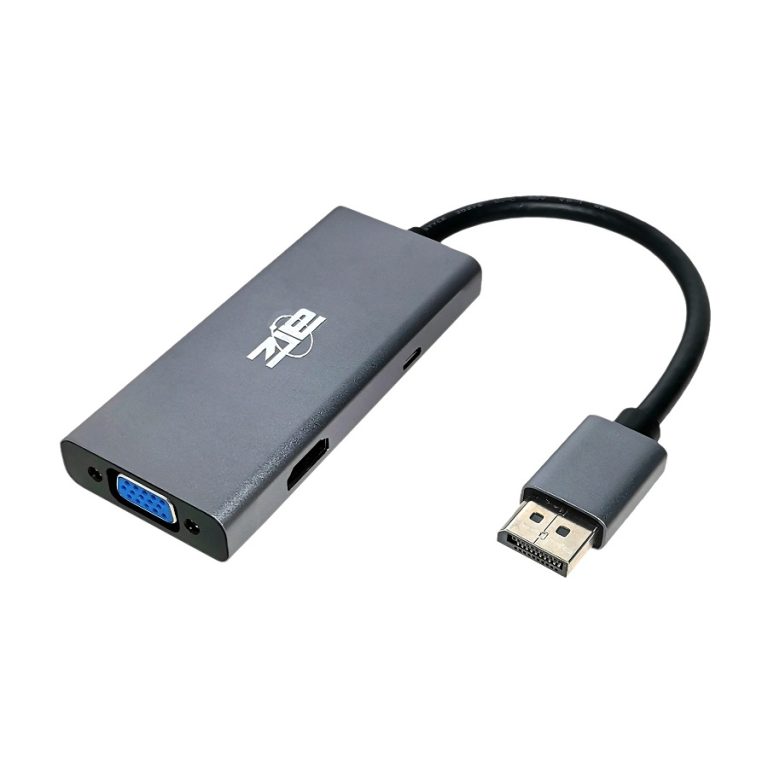

This ATZ 1 to 4 display hub/docking station convert DisplayPort source to DisplayPort + HDMI + VGA display signal.
The DisplayPort MST hub can separately or simultaneously connect up to four screen display, using either of the 2 DisplayPort, 1 HDMI and 1 VGA port. MST will support them in Mirror mode and Extended Desktop mode.
Connect DisplayPort input devices such as Desktop (compatible with HP, Dell optiplex/Precision/xps, Lenovo), Laptop (compatible with HP ProBook Elite-Book, Lenovo ThinkPad), GPU and other source device to any output display like monitor, projector or TV/HDTV.
The docking station supports up to 4K@60Hz maximum resolution for DP and HDMI, 1080p@60Hz for VGA. Final throughput of resolution will depend on your GPU power, Display setting and number of display used.
Docking station is plug and play without any additional of any software installation.
Come with USB Type A cable to micro USB for optional power supply if there is an insufficient power source coming from the DisplayPort input. USB can be connected to either USB power adapter / any source device USB port to draw additional power. Thus minimizes the signal loss and potential failure points to achieve best performance and compatibility.
Ideal for home, office usage, for multitasking program, data analysis, video streaming/production and more.
Features:

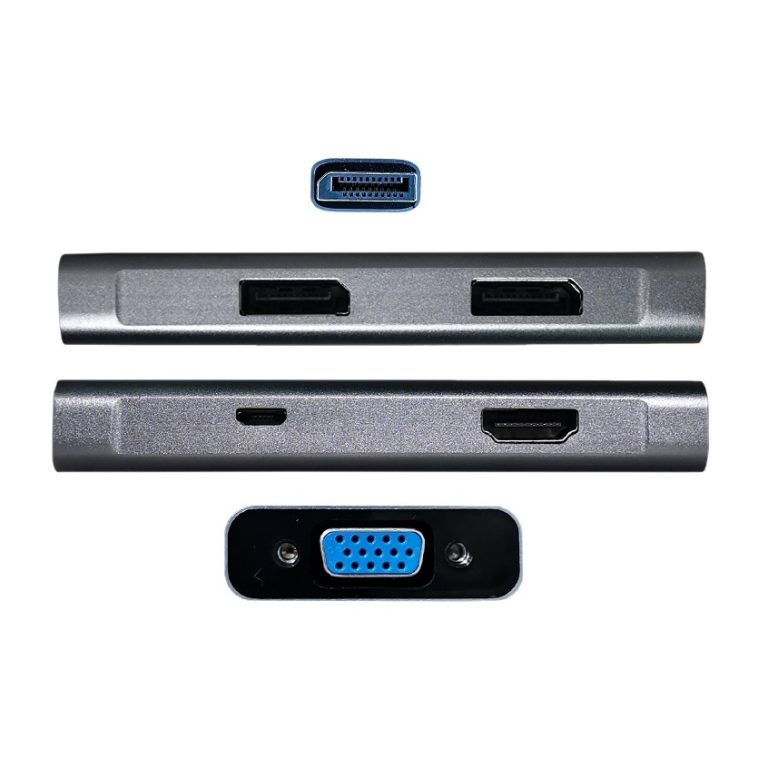

- Display out to multiple display signal (2 DisplayPort, 1 HDMI, 1 VGA)
- MST adapter support Mirror mode and Extended Desktop mode
- Support Superior video quality up to 4K@60hz resolution for DP/HDMI, 1080p@60hz for VGA
- Supports Dual DP and HDMI UHD audio and video data transfer from PC/laptop
- Plug and play, No driver or software installation required
- Allow additional power source through micro USB Connector port
