100Mbps Coaxial Cable EOC Converter, 1x 10/100M auto-sensing RJ45 ports, 1X Coaxial Input/Output BNC port. 1 RJ45 ports support Power-over-Ethernet (PoE), meet PoE standard IEEE802.3af and IEEE802.3at, total PoE power is 60W. Power input: 48V, 1.25A.
Through coaxial cable transmission, can provide 100Mbps network flow with regular video cable or twisted pair; support 32-way 720P image (a million images) transmission, 24-way 960P image (1.3 million images) transmission, and 16 way 1080P image (two millions images) transmission. Built-in transmitting circuit and receiving circuit , and each converter is capable of transmitting and receiving function. Simple to use, no hardware or software debugging, no IP setting, just connecting the video cable to work normally.

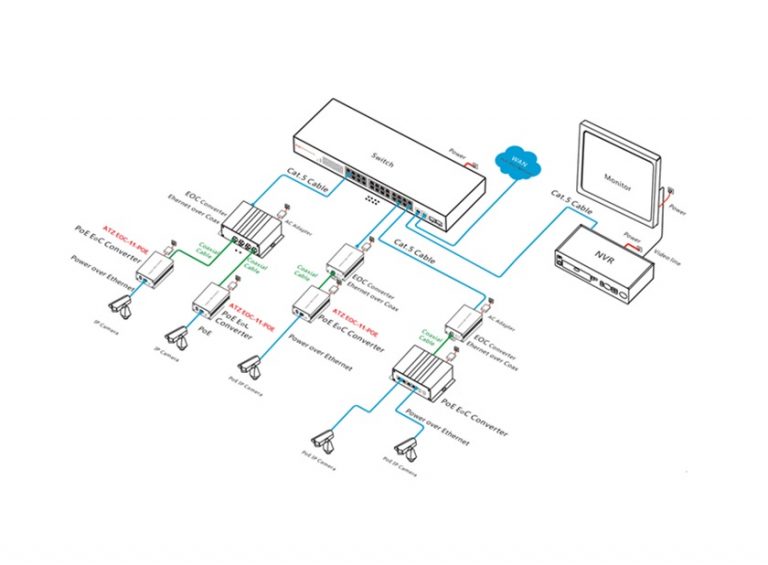

Has the advantage of long distance transmission, high-speed communication, supporting multimedia services and flexing networking, etc. Widely applied for upgrading the original analog system to HD system, building new long-distance transmission systems, etc. Due to the wires selection diversity, all the original wires in the analog camera can be used as the transmission medium, no need re-wiring. Thus, just replacing the front camera, plus EOC transmitter device, you can upgrade the analog systems to HD digital network, save wiring time, manpower and material resources.
Features:
- Analog monitoring surveillance and HD network upgrading without replacing the coaxial cable
- Long distance network extend that can be up to 1200 meters
- Support multi-point access, one point to multi-point access
- 1 RJ45 port support Power-over-Ethernet (PoE), meet PoE standard IEEE802.3af and IEEE802.3at, total PoE power is 60W
- Long distance centralized power supply, the effect is equivalent to PoE power supply
- Transmission via coaxial cable, twisted pair, telephone line and other transmission media
- There must be two or more transmissions, the same link(within the same physical coaxial or twisted pair) just set up the master device to support multiple devices work simultaneously
