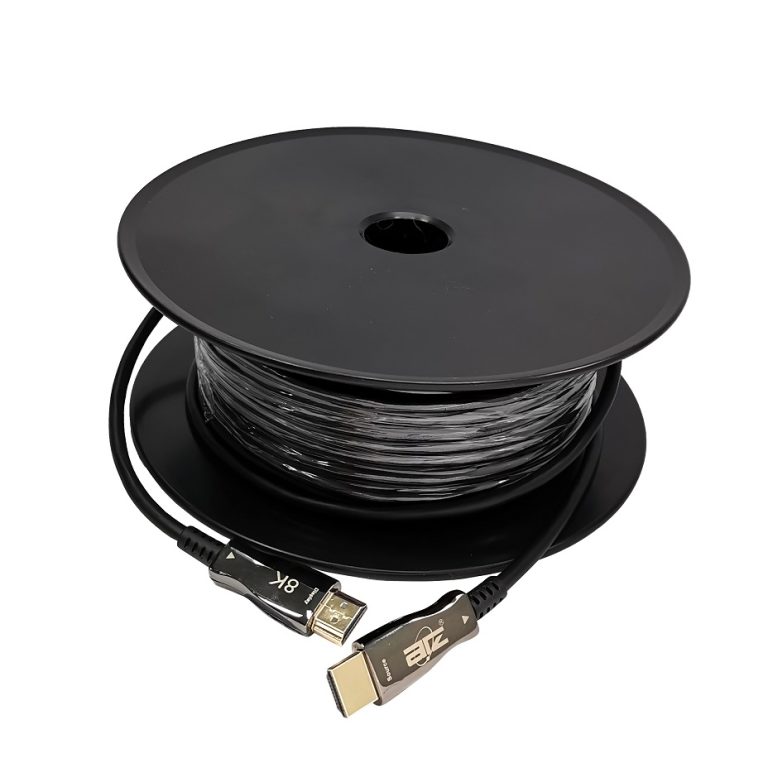

HDMI AOC V2.1 – 8K@60Hz, 48Gbps (10m/15m/20m/25m/30m/40m/50m/60m/70m/80m/90m/100m)
Description
Our HDMI Active Hybrid Cable is the most competitive long reach HDMI interconnection solution on the market. It supports HDMI Maximum Data Rate 12Gbps total 48Gbps bandwidth with light weight, flexible and ultra-small long-term bending radius (45mm) hybrid cable. With our advanced optical engine embedded.
Features:
- Up to 100m Maximum Length.(Custom Length Available)
- Plug and Play
- Compatible with HDMI 2.1 standard.
- Backward compatible with HDMI2.0/HDMI1.4
- Hybrid 4-core optical fiber transmits TMDS signals, 7-core tinned Copper transmits signalling protocol. Anti-electromagnetic interference, No attenuation.
- Support HDCP2.3
- Support 48G Bandwidth with 4Kp50/60/100/120 and 8Kp50/60
- Supports 16bit/24bit (RGB/YCbCr) Deep Color depth, HDR, CEC, 3D and eARC.
- Self-detecting function for EDID information.
- Zinc alloy shell Anti-electromagnetic interference increase wear resistance and improve service life.
- No loss of signal – delivering crystal clear digital images instantly.
- Dynamic HDR formats is supported.

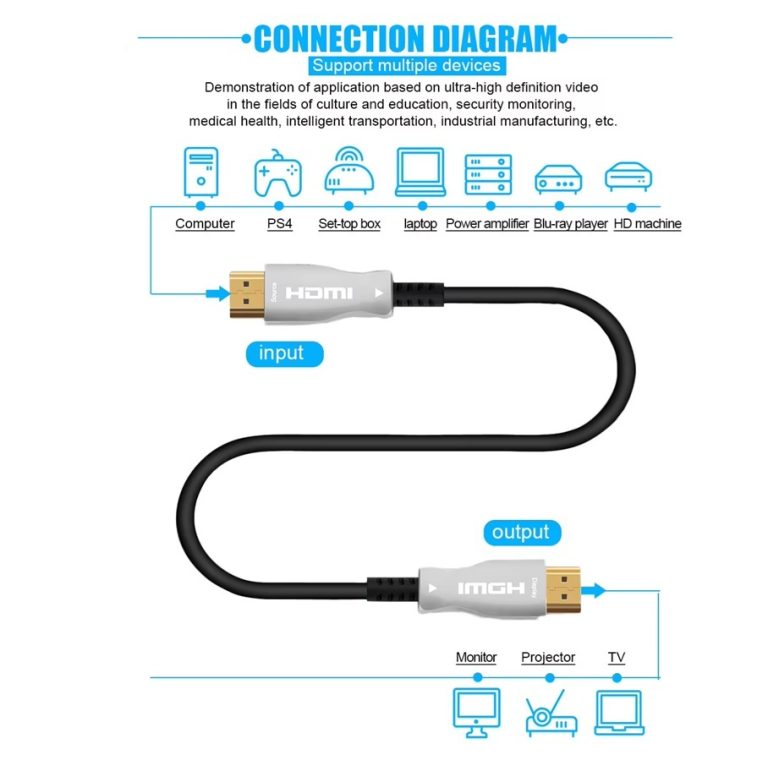

*Remarks: This is a uni-directional cable. Please ensure correct connection with connector ends labelled with “to source” and “to display”. The cable will not be damaged, nor will it cause the connected devices to be damaged, due to wrong connection.
Application:
- Digital Signage
- LED signboards in streets and in stadiums
- Medical Imaging Equipment
- Airplane On-board Video System
- Home Theater
- Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer
- TV Broadcast Station
- Conference Room Video Equipment
- Security systems
| Units | Transmitter (Source) | Receiver (Sink) |
| HDCP & DDC | HDCP 2.3 Fully Support bi-directional EDID and HDCP communication | |
| Video Bandwidth | 48Gbps (12Gbps/ x4 Channel ) | |
| Supported
Resolution & Distance |
480p, 720p, 1080i and 1080p deep colour, 4Kp50/60/100/120 and 8Kp50/60 up to 100m | |
| O/E Converter | 4 channel 850 nm VCSEL array | 4 CH GaAs PD array |
| Connector Type | HDMI type A | |
| Cable Type | Hybrid type with OM3 fiber and copper wire | |
| Cable Length | 10m/15m/20m/30m/40m/50m/60m/70m/80m/90m/100m (with +/-30cm tolerance) Custom length available. | |
| Cable Outer Diameter | 4.5mm | |
| Jacket Outer Material | PVC/TPU(Custom) | |
| Cable Weight TBD | Cable Weight TBD | |
| Cable Colour TBD | Cable Colour TBD | |
| Differential Input | 100 ohm (typ) | |
| Power Consumption | 250mW (max) | |
| Power Supply | Non external power required | |
