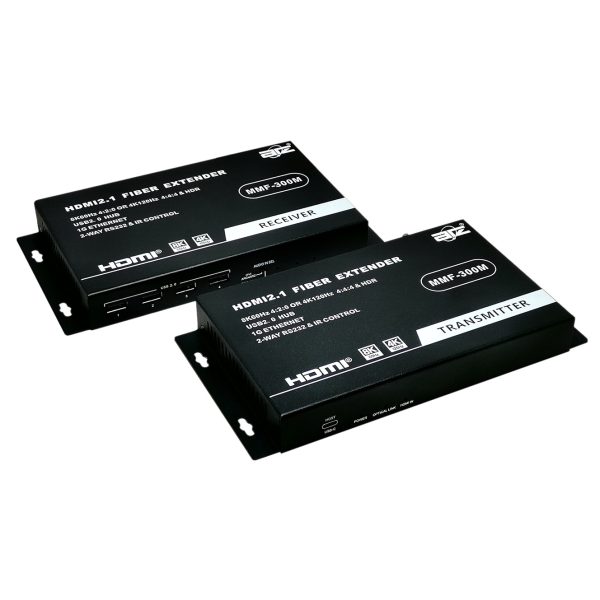

HDMI 8K@60hz Extender over Optic Fiber [TX/RX] USB2.0/ARC/eARC/Ethernet/POC (300m)
Description
Support uncompressed video resolution up to 8K@/60Hz. It supports USB2.0 HUB and 1G Ethernet. It also can transmit bi-directional IR and RS232.
The transmission distance reach up to 300m. Ideal for extending digital video and audio signals, making it a great solution for digital signage, churches, data centers, home theater, large conference rooms, schools, Trade show presentations, etc
Features:
- Support uncompressed 8K@60HZ.
- Compliant with HDCP2.3/2.2.
- Support ARC/eARC.
- Support USB2.0 1 in and 4 out HUB.
- Support bi-directional RS232 and IR transmission.
- Support 1G Ethernet.
- Support POC from both RX and TX.
- Support up to 300 meter over OM3 multi-mode LC fiber.
- Low latency.
- Optical source: VCSEL
- Fiber: 1 core LC, OM3
- Distance: OM3-300 Meter (984ft)

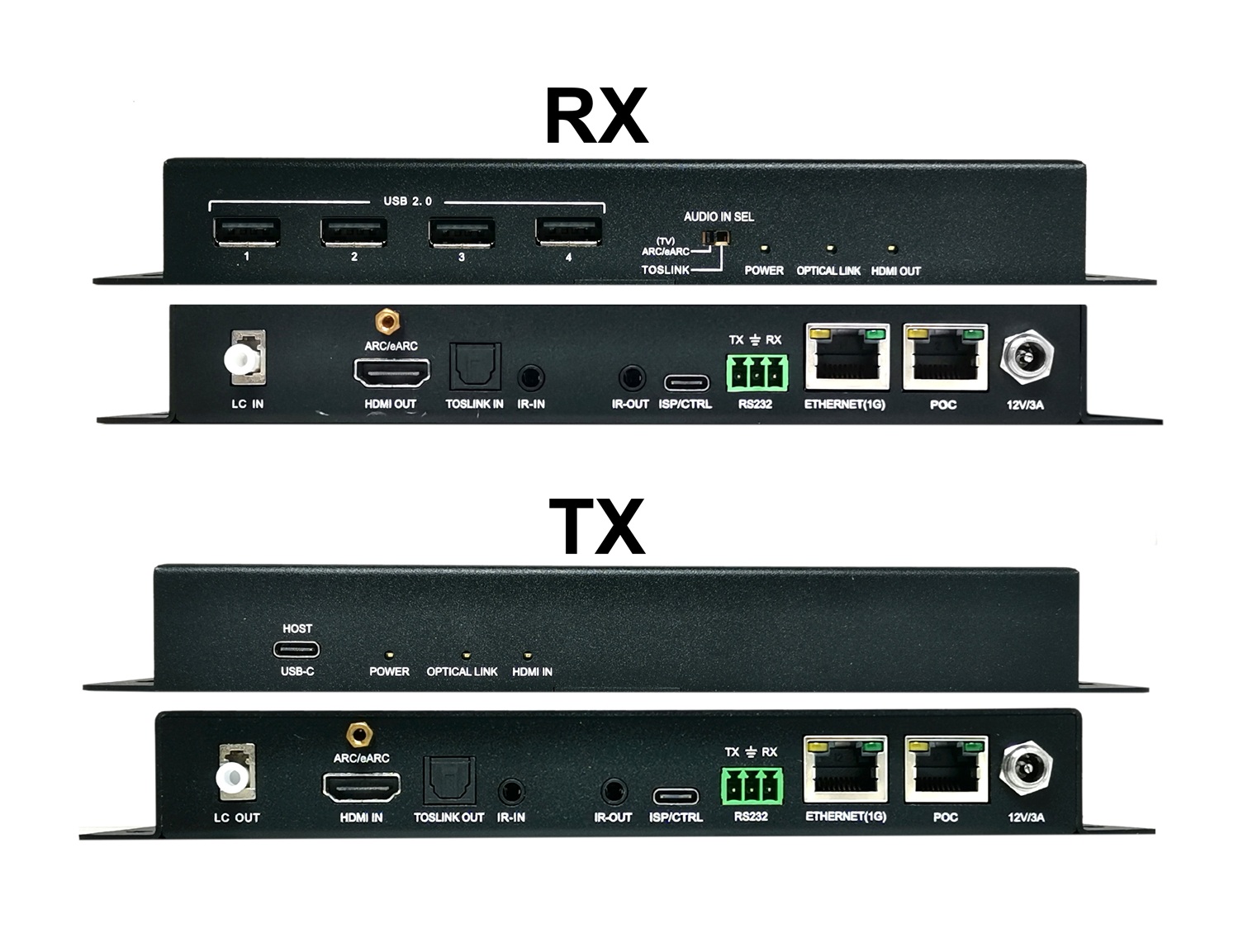

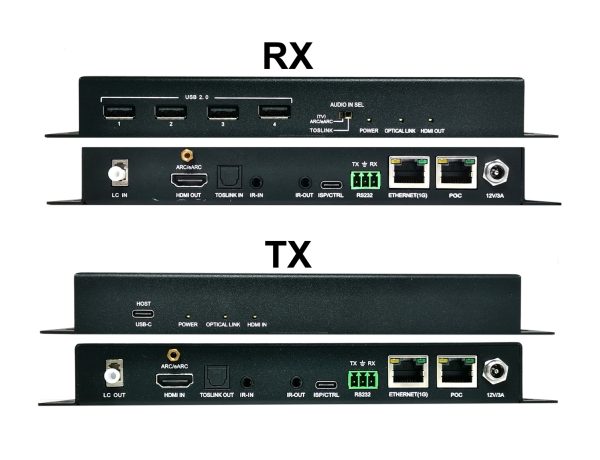

| Transmitter | Receiver | |
| Ports | 1x USB-C Receptacle | 4x USB 2.0 A Receptacles |
| 1x Simplex LC | 1x Simplex LC | |
| 1x HDMI-A Female port | 1x HDMI-A Female port | |
| 1x Toslink output port | 1x Toslink intput port | |
| 1x IR input port | 1x IR input port | |
| 1x IR output port | 1x IR output port | |
| 1x USB-C ISP port | 1x USB-C ISP port | |
| 1x 3 PIN phoenix male port for RS232 | 1x 3 PIN phoenix male port for RS232 | |
| 1x RJ45 Ethernet 1Gbps port | 1x RJ45 Ethernet 1Gbps port | |
| 1x RJ45 POC port | 1x RJ45 POC port | |
| 12V 3A DC Locking Jack | 12V 3A DC Locking Jack | |
| Material | Black Iron | |
| Dimension | 215x110x23mm (LxWxH) | |
| Weight | 700g | |
| Package weight | 1.8Kg | |
| HDMI compliance | HDMI 2.1 | |
| HDCP | HDCP 2.3/2.2/1.4 | |
| Video Bandwidth | 40Gbps | |
| Supporting Resolution | 8K@60HZ/4K@120HZ | |
| Power | ||
| Voltage | 12V | |
| TX power consumption | <36W | |
| RX power consumption | <36W | |
| Distance | ||
| POC | Max:150M | |
| Fiber | Over OM3 multi-mode fiber: 300M | |
| USB Support | ||
| USB Speed | High-speed, Full-speed, Low-speed | |
| USB Bandwidth | Up to 480 Mbps | |
| TX (Host) Compatibility | USB2.0/1.1 | |
| RX (Device) Compatibility | USB2.0/1.1 | |
| Available Current at device | Max 500mA per USB port | |
| Environment | ||
| Temperature： | Operating Temperature Range: -10°C~60°C | |
| Storage Temperature Range: -45°C~85°C | ||
| Humidity： | 20-80% Operating, 10-90% storage relative humidity non-condensing | |
