Wavelength Switch Device : It can provide date transmission between two wavelength, This kind of device also can be used as positive power enlarge device such as 1310nm↔1310nm、1310nm↔1550nm、1310nm↔850nm、850nm↔1550nm
Mode Switch Device： It can provide date transmission between multi mode (850nm,1310nm)and single mode (1310nm,1550nm)，This kind of device also can be used as positive power enlarge device.
Fiber Switch Device: It can provide the date transmission between single –fiber and dual–fiber.
Switch different wavelength and two types of mode
Additional information
Weight
0.5 kg
Dimensions
15 x 15 x 10 cm

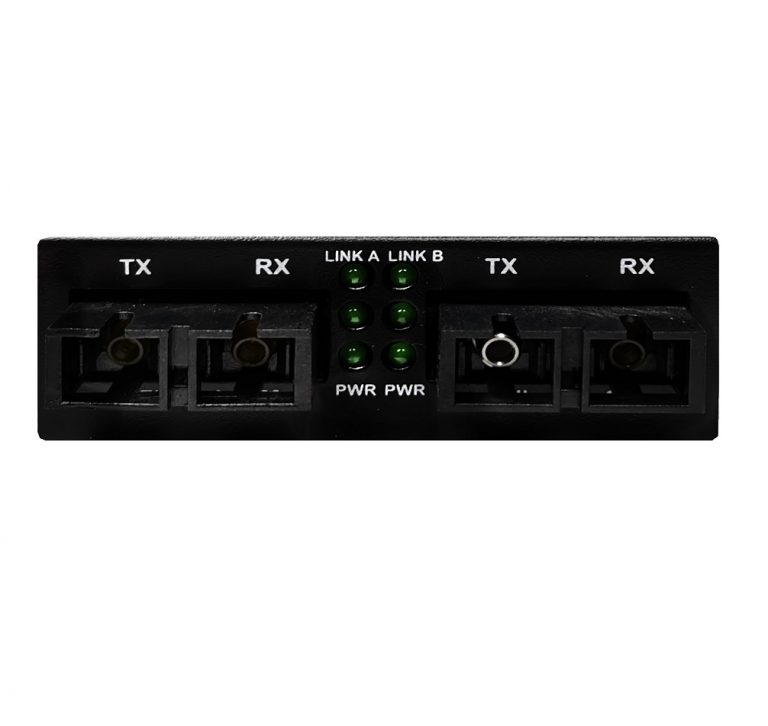

Fiber A: multi – fiber port
Fiber B: single -fiber port
LED: power*2 LINK A、LINK B
Standard: IEEE 802.3
Port: SC
Power: DC 48V/2A 3A
Operating temperature: 0℃~70℃
Operating humidity: 5%~90%
Supporting full duplex and half-duplex transmission
