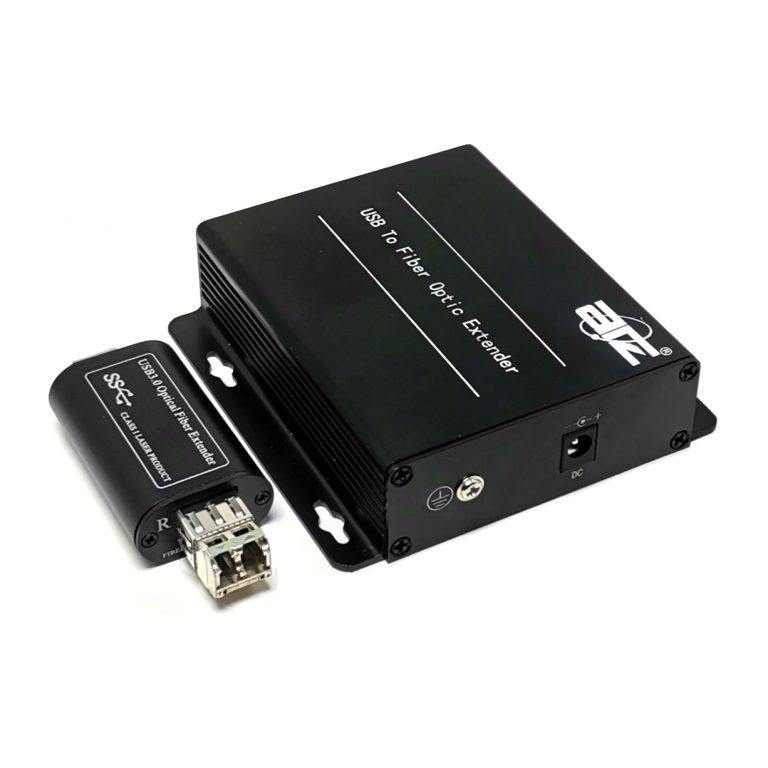

The USB 3.0 fiber extender transmits USB 3.0 signals at 5Gbps to 250 meters through two or one optical fibers, and can also expand one USB 3.0 interface to four USB 3.0 interfaces.

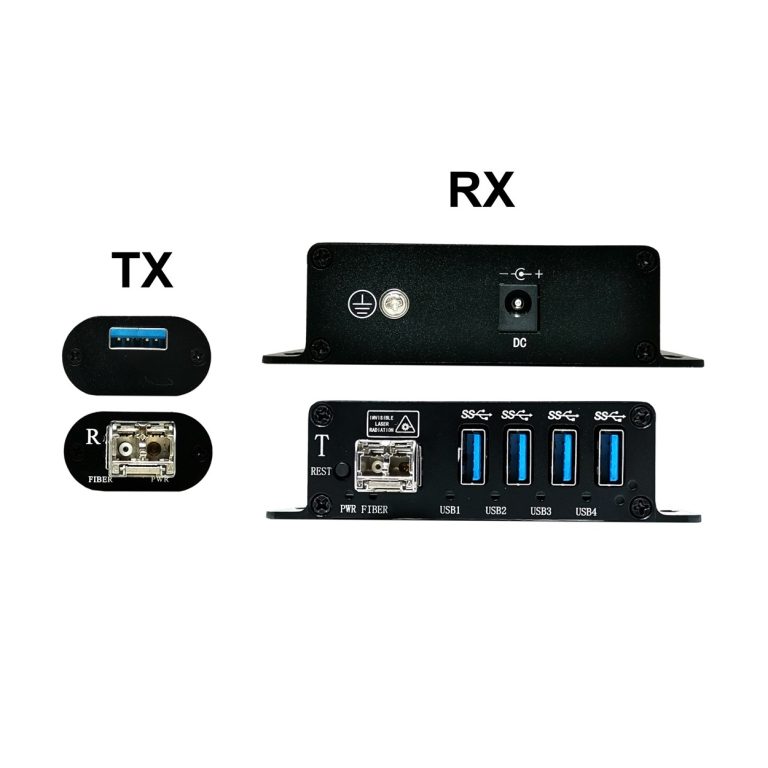

The USB 3.0 fiber extender uses a dedicated USB 3.0 PHY to meet the USB 3.0 protocol requirements, and uses SFP+ to complete the photoelectric conversion to achieve stable transmission of USB 3.0 Super Speed signals. The USB 3.0 fiber extender consists of a transmitter and a receiver. The transmitter is powered by a USB 3.0 A-type connector, and the transmitter is powered by an external power supply, and provides power to the USB 3.0 device through the USB 3.0 A-type connector
Features:
- USB 3.0 input expanded to 4 USB 3.0 outputs;
- USB 3.0 type A interface, LC optical port.
- Support USB 3.0 5Gbps bandwidth;
- Support single-mode or multi-mode optical fiber transmission distance up to 250 meters;
- Support USB 3.0 Super Speed high-speed signal transmission;
- Support USB 3.0 devices, but Not backword compatible with USB 2.0 and USB 1.1;
- Support audio output format: PCM2
- Support 12V power supply;
