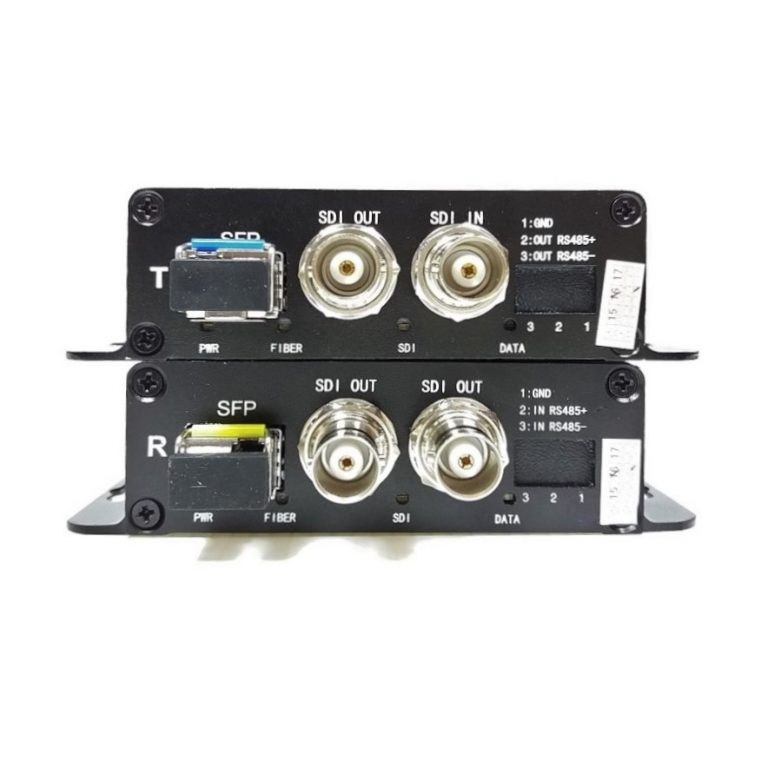

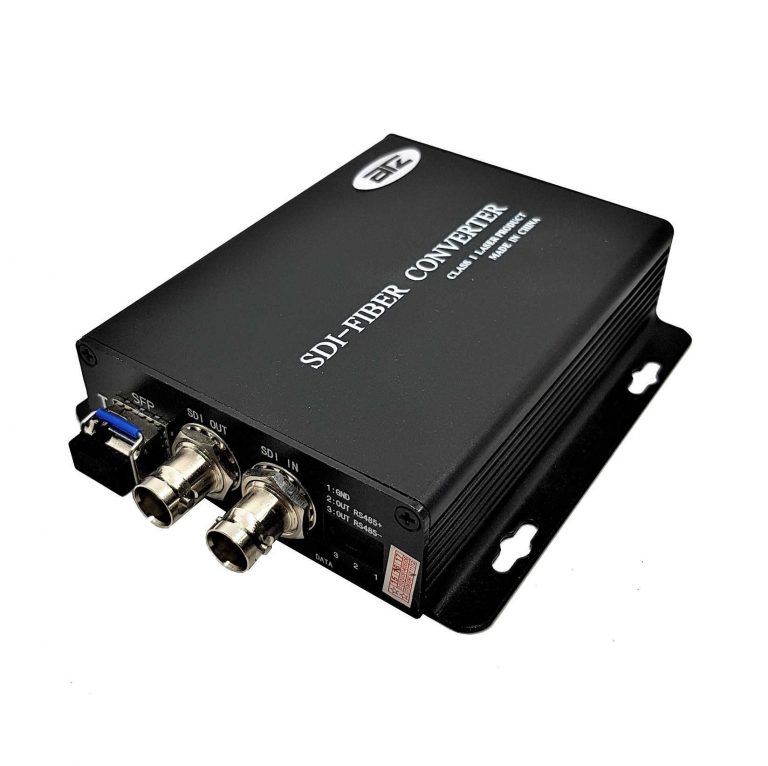

Fiber Optic Video Transmitter & Receiver
SDI series can transmission 1 Channel
SD-SDI/HD-SDI/3G-SDI over 1 single core fiber.
Single-Mode or Multi-Mode
SD-SDI/HD-SDI/3G-SDI units are designed to support LC /PC Optical connector
We will offer free patch cord + adaptor for your request for SC/PC or ST/PC or FC/PC optical connector.
The Transmission distance Range according to the Optical Budget.
Manufacturer’s default standard is single mode 20Km .
Features
- 1 Channel SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber
- The Max rate of work is 3.2Gb/s
- Support SMPTE 292M (2.9Gb/s) clock recovery
- Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M
- 3Gb/s serial interface(3G-SDI)
- Out wavelength range is 1310nm、1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)
- Automatic cable equalization ,used for all rate below 3.2 Gb/s（Belden 1694A)
- LED Status Indication to monitor the working conditions
- Video transmission system can support many application branches structure
- The fiber port Support SFP transceiver hot-plugged
- The SDI video format support：
625/25 PAL
525/29.97 NTSC
525/23.98 NTSC
720p50、720p59.94
1080P 23.98/24/30/50/60
1080i 23/24/30/50/59.94
