Description

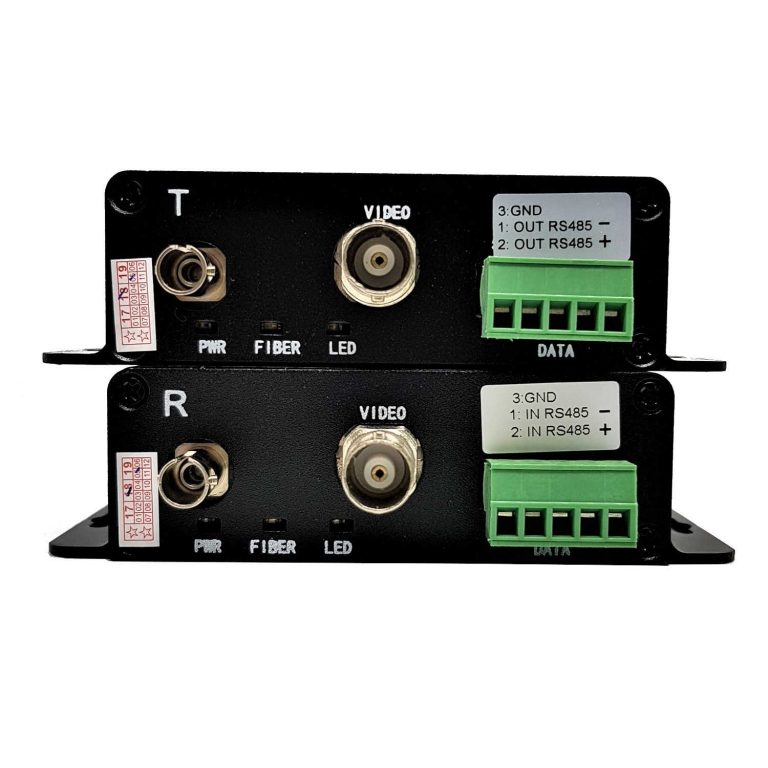

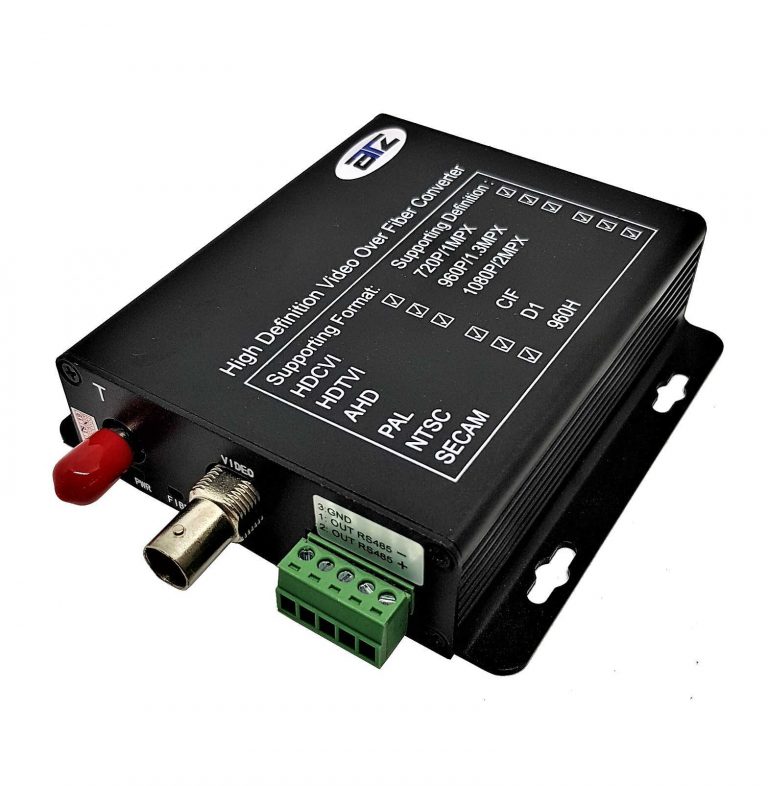

Our AHD Video over Fiber Converters can simultaneously transmit 1-8 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation,
which is suitable for different working environment. Compatible with AHD-H, AHD-M, AHD-L. Lossless non-compression real time transmission.
Its optical module and core circuit adopt the imported components that have high stability, and all optical & electrical interfaces conform to the international standards, which is applied to the different working environment. This optical transceiver with video status indication can monitor the normal operation of system.
Features
- Analog HD video 1080P (1920×1080) / 960P (1280 x 960) / 720P (1280 x 720) AHD / HD-TVI / HD-CVI
- Automatic compatible PAL, NTSC and SECAM video system
- 10-bit digital code and non-compression type video transmission .
- Power supply and other parameter state indication, which can monitor the operation condition of system
- Support no-damage regenerative trunk of video
- Constant input optical power, and large dynamic range, no Electrical or Optical Adjustments Required .
- Special ASIC design .
- It is plug-and-play and supports hot-swap, convenient for fixing without modulation.
- Can be installed in 19 inch rack-mounted chassis(2U/4U).
PRODUCT APPLICATION SCOPE
- Public Security Surveillance
- Intelligent Transportation System
- Connection of Sub-network for Surveillance Center
- High Way & Toll Station Surveillance
- High Quality Video Conference
- Industrial Closed Circuit Television Surveillance
- Coliseum using for TV-live ,audio transmission
Video parameters：
| Video input / output impedance | 75 Ohm (imbalance) |
| Standard video input / output voltage | 1.0Vp-p Type |
| Video voltage range | 0.6-2.0 Vp-p Type |
| Differential gain(10%-90% APL) | <1% Type |
| Differential phase(10%-90% APL) | <±1 Type |
| Signal-to-noise ratio | ﹥ 60Db (Weighted) (10Bit)
﹥ 70Db (Weighted) (10Bit) |
| Channel physical interface | BNC |
Audio parameters
| Audio input/output impedance | 600 Ohm(imbalance) |
| Audio maximum input/output voltage | 2.0 Vp-p |
| Audio input/output level | 0 dbm (typical value) |
| Frequency Response | 10Hz~20kHz |
| Total harmonic distortion | ﹤0.05% |
| Signal-to-noise ratio | ﹥95Db ( weighted) |
| Channel physical interface | Terminal Blocks |
Data parameters
| Data format | Rs232、Rs422、Rs485 |
| Data rate | 0-300 kbps |
| Bit error rate | 10ˉ9 |
| Channel physical interface | Terminal Blocks |
Optical parameters
| Connector | FC/ST (optional) |
| Wavelength | 1310nm & 1470nm ~ 1610nm |
| Fiber type | 50/125u multi-mode,62.5/125u multi-mode 9/125u single mode |
| Typical optical output power | – 8 ~ -3 Dbm |
| Typical receiver sensitivity | -25 Dbm |
| Optical interface | Simplex |
SWITCHING parameters
| Physical interface | Terminal Blocks |
| Signal input | Alarm or switching value Input ,support TTL、
Rs-232/422/485 or switches, buttons |
| Signal output | Alarm or switching value output ,support TTL、Rs-232/422/485 or Contact Relay output. |
General Parameters
| Power supply | AC 110-220 V to DC 5V |
| Operating Temperature | -10℃～+70℃ |
| Relative humidity | 0-95% ( no condensation) |
