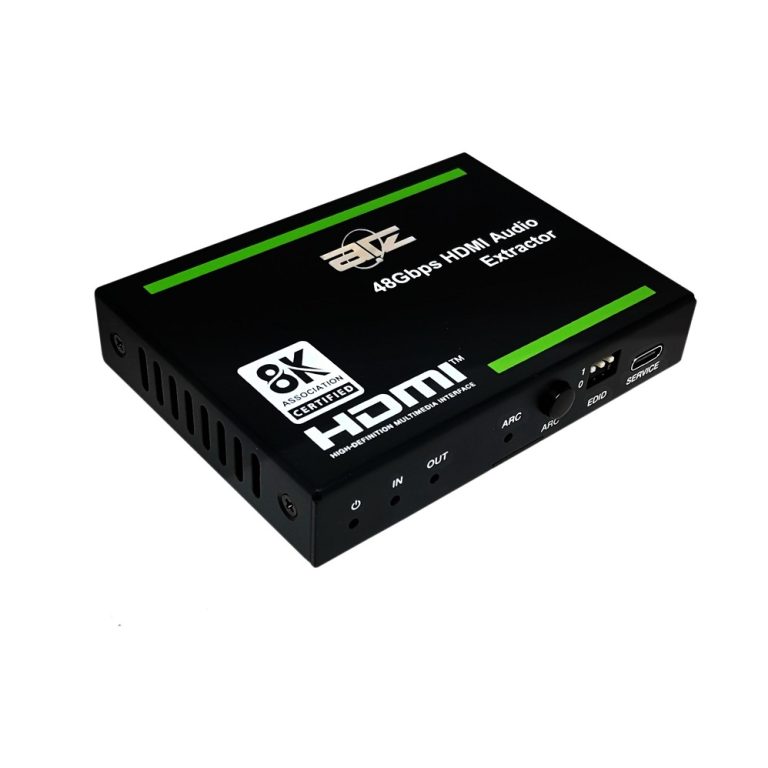

HDMI2.1 48Gbps 8K60 Audio Extractor, ARC / HDCP2.3
Description
The 48Gbps HDMI audio de-embedder can extract audio signals from an HDMI source or ARC-compatible TV to output analog stereo and digital S/PDIF audio, with a buffered HDMI video output. It supports data rates up to 48Gbps to comply with HDMI 2.1 and HDCP 2.3 requirements. It is compatible with UHDTV 8K@60Hz. It includes several features for ease of integration, such as EDID management and cable equalization. It provides an easy solution for HDMI installations to send audio signals to a stereo audio or surround sound system.
Features:
- HDMI 2.1 and HDCP 2.3 compliant.
- Support 48Gbps FRL and 18Gbps TMDS video bandwidth.
- Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
- HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported.
- HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through.
- LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audiopass-through.
- HDMI input audio or TV ARC audio de-embedded to S/PDIF and L/R audio output.
- Support CEC control from output devices to input sources.
- Advanced EDID management.
- Compact design for easy and flexible installation.
| Technical | |||
| HDMI Compliance | HDMI 2.1 | ||
| HDCP Compliance | HDCP 2.3 | ||
| Video Bandwidth | 48Gbps FRL and 18Gbps TMDS | ||
| Video Resolution | Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit | ||
| Color Depth | 8/10/12-bit | ||
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 | ||
| Audio Formats | HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD AUDIO BREAKOUT: OPTICAL OUT: PCM 2.0CH, Dolby, DTS 5.1CH L/R OUT: PCM 2.0CH |
||
| HDR | HDR, HDR 10, HDR 10+, Dolby Vision, HLG | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | ||

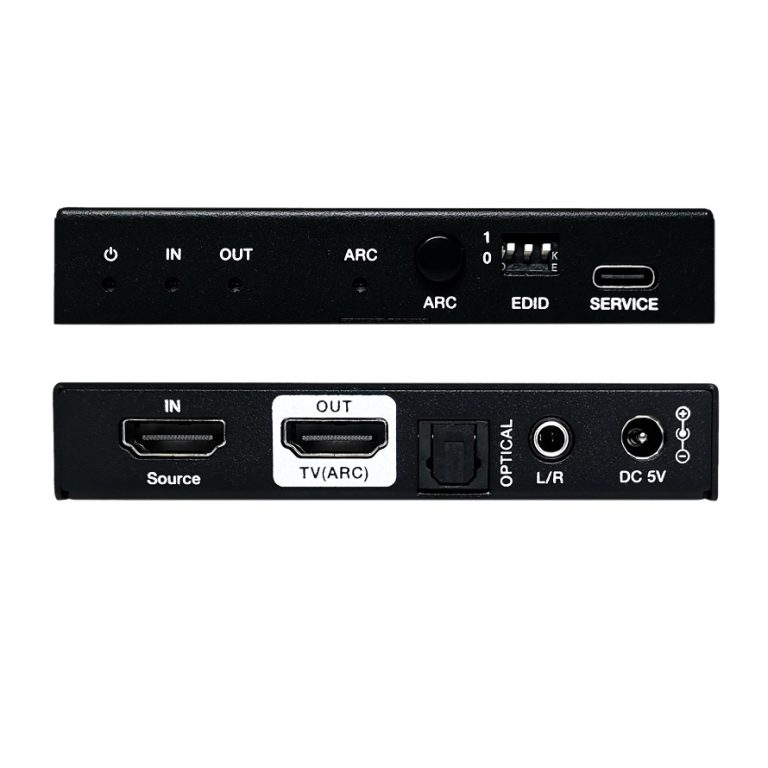

| Connection | |||
| Input | 1x Source IN [HDMI Type A, 19-pin female] | ||
| Output | 1x TV(ARC) OUT [HDMI Type A, 19-pin female] 1x L/R [3.5mm Stereo mini-jack] 1x OPTICAL [S/PDIF, female] |
||
| Control | 1x SERVICE [USB Type C, Update port] | ||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | 95mm [W] × 68mm [D] × 18mm [H] | ||
| Weight | 178g | ||
| Power Supply | Input: AC 100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) | ||
| Power Consumption | 4W (Max) | ||
| Operation Temperature | 0°C ~ 40°C / 32°F ~ 104°F | ||
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | ||
| Relative Humidity | 20~90% RH (non-condensing) | ||
| Recommended HDMI Cable | |||
| Video Resolution | 8K60 | 4K60 | 1080P |
| HDMI Cable Type | Ultra HDMI 2.1 cable | HDMI 2.0 cable | HDMI cable |
| HDMI Cable Length (HDMI IN / OUT) |
2m/6.6ft ~ 3m/10ft | 10m/33ft | 15m/49ft |
| The use of “Premium High Speed HDMI” cable is highly recommended. | |||
