HDBaseT Sender 100m Wall Plate 86×86 HDMI/VGA/Audio/RS232/PoC
Description
ATZ HDBT-E100-WPV-86 is a HDBaseT Wallplate transmitter which supports 1*HDMI and 1*VGA+3.5mm audio inputs over HDBaseT (RJ45) output. It also supports two working modes: Manual or Auto. The resolution can up to 4k@30hz, with POC(power over cable) function, users can power up the HDBaseT receiver end.
It can up to 330ft/100m at 1080P60, 220ft/70m at 4K30 via STP Cat5e/Cat6. It’s popularly used in the small meeting room, classroom or other long distance transmission applications.
Features:
- Supports 2 Inputs (HDMI & VGA w/audio), 1 Output HDBaseT
- Supports 1080P 3D, and resolution up to 4K30
- Supports HDCP1.4
- Transmission distance: 330ft/100m at 1080P60, 220ft/70m at 4K30 via Cat5e/Cat6
- Supports internal and external EDID

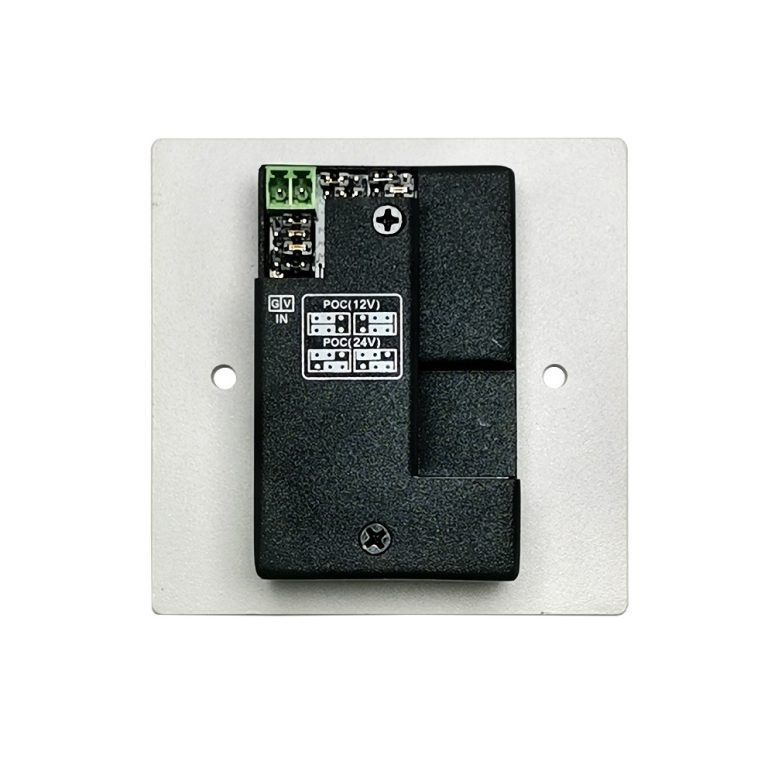

- Supports POC(power over Cable)
- Supports manual or auto working modes
- UK Single-gang size

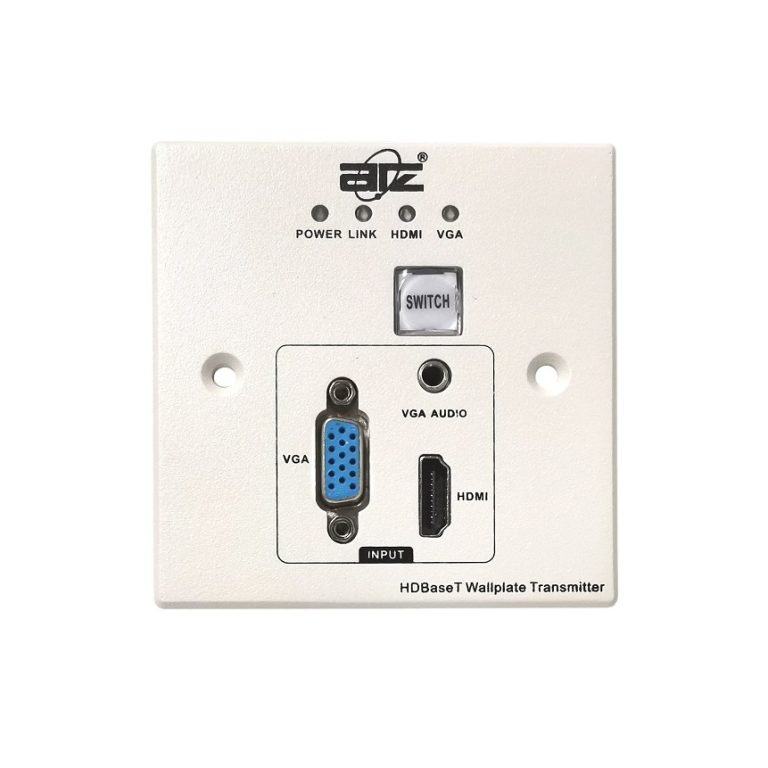

| Input | 1*HDMI, 1*VGA+3.5mm audio, 1*Switch button |
| Output | 1*HDBaseT(RJ45) |
| Control | Switch Button or auto sources detection/switch |
| Transmission distance | 330ft/100m at 1080P60, 220ft/70m at 4K30 via Cat5e/Cat6 |
| Bandwidth | 10.2Gbps |
| Power Supply | DC 12V 1.5A |
| Dimension (WxHxD) | Product back size: 88x88x38mm/ 3.46×3.46×1.49inch |
| Product weight | 200g/0.45lb |
| Operating Temperature | -10℃ to 40℃ |
| Storage Temperature | -25℃ to 55℃ |
