ATZ HDBT-E100B-TB-AEL

Written by

in

HDBaseT™ Sender box 100m 4K60 4:4:4 with audio embedder, HDMI loopout, POC, ED

Compare
Category:

Description

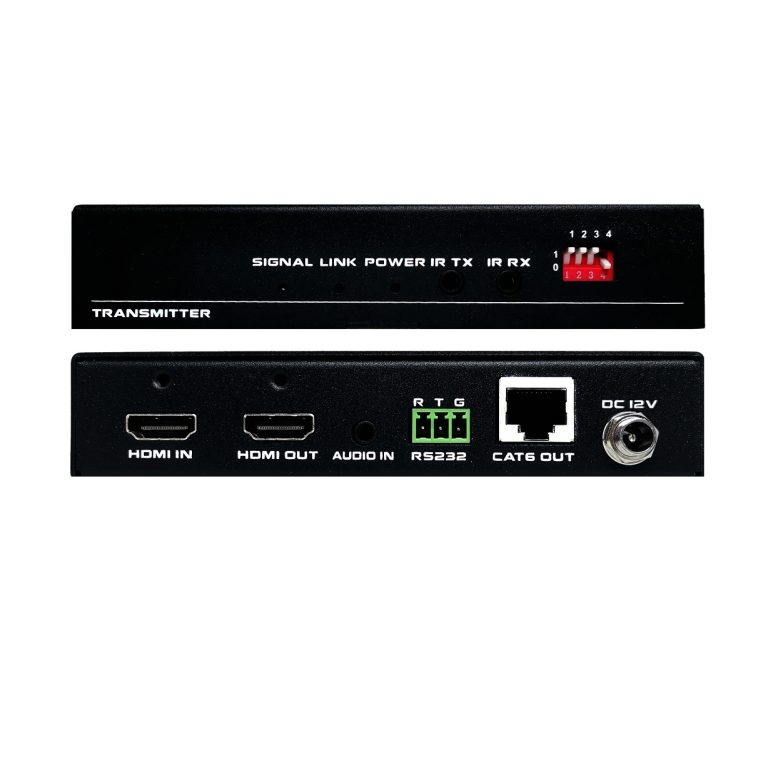

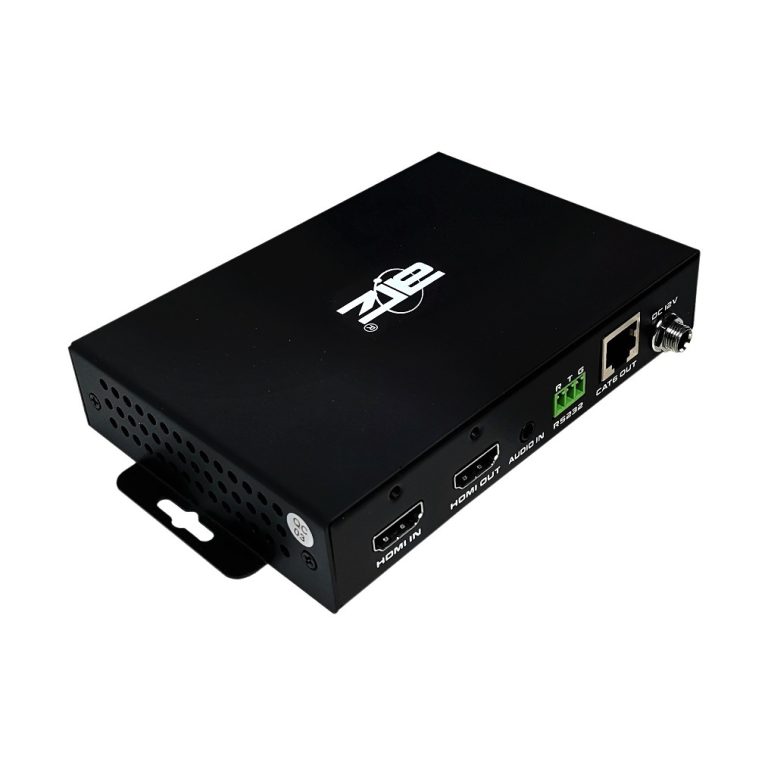

ATZ HDBT-E100B-TB-AEL is a HDBaseT transmitter box, it supports no compression, no losses, no latency HDMI signal transmission. It can can work with other HDBaseT equipment, such as Sony HDBaseT projector. All the signals are transmitted by one single CAT5E/6/7 cable. For 1080P it can transmit to a distance of 320ft (100m), or 4K60Hz at 220ft (70m). Compatible with all the HDTV resolutions, HDMI2.0 protocol. It also support bi-directional RS232 and IR transmission and realize the long distance control. Supports power over cable(POC), users only need to power one side; Supports 3.5mm Audio embedded and de-embedded function, for managing internal or external audio input and output. It supports EDID management, providing user flexibility to work with different displays. Support 1x HDMI loop-out for TX and 2x HDMI sync output for RX. So it can be efficiently deployed for use in media-conferencing room, school, government, cinema and other applications.

Features:

  • Works with HDBaseT Receivers to form an Extender Kit
  • Support up to 320ft (100m) at 1080p, and up to 220ft (70m) at 4K60 over single Cat5E/6//7 cable.
  • Highest resolutions supported at 4k60 4:4:4
  • Equipped with EDID management capability
  • Bidirectional IR/Serial control signal transmission
  • Power over Cable (POC) locally powered over Cat5e/6 cable at either end
  • Supports 7.1 DTS Master HD, Dolby True HD, Audio embedded and de-embedded
  • Support 1 HDMI loop out at TX and 2x HDMI sync output at RX
Model ATZ HDBT-E100B-TB-AEL ATZ HDBT-E100B-RB-AEL
Input 2x HDMI,
1x 3.5MM audio,
1x RS232，
1x IR_TX，
1x IR_RX		 1x HDBaseT
Output 1x HDBaseT 2x HDMI,
1x 3.5MM audio,
1x RS232,
1x IR_TX，
1x IR_RX
Protocol Support HDMI2.0 and HDCP; Support EDID management
Resolution 480i,576i,480p,576p,720p,1080i,1920x1080p60Hz，3840×2160/30Hz,3840X2160/60 4096X2160/24Hz
Colour space 1080p: 36Bit Deep Color 4K60: 24Bit True Color,  4:4:4
Data rate 18Gbps
Transmit distance CAT6: 1080p60Hz transmit 100m; 4K60Hz transmit 70m
Measure 152×100×27（mm）
Weight 200g（excluding package and power adapter）
Power supply AC: 100-240V 50/60Hz 1.5A Max DC: 12V 1500mA
Power consumption ≤11W
Working humidity 10%-90%
Working humidity 0℃-50℃
