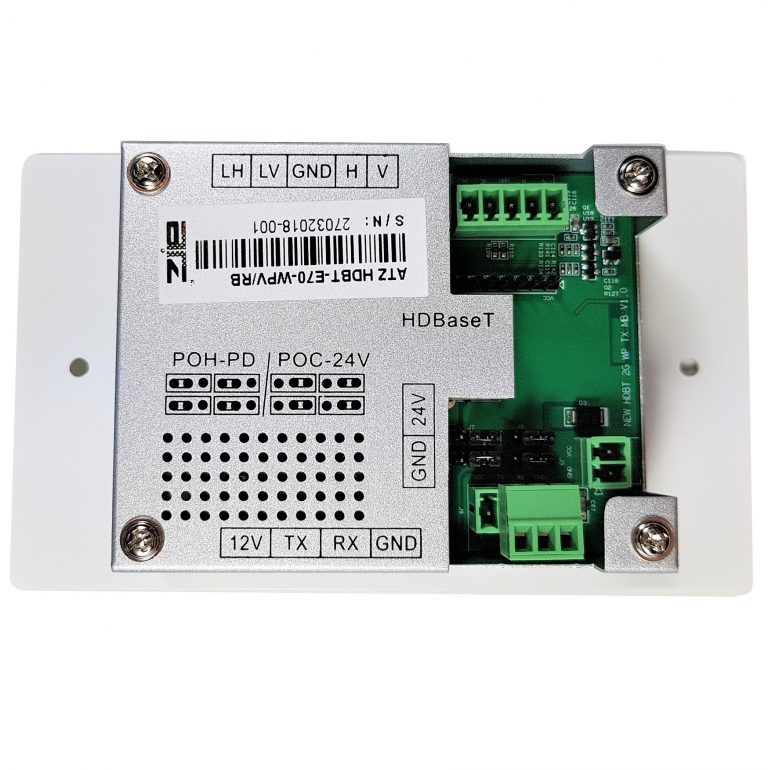

The ATZ HDBT-E70-WPV is part of expanding Multi Video HDBaseT Cat wall plate. The ATZ HDBT-E70-WPV is a 2 gang multi-input Decora style wall plate with HDBaseT CAT extension. Its ability to convert VGA with audio to HDMI locally and transmit the signal up to 70m sets this unit apart from the competition. Either VGA or HDMI with active signal is connected signal will send to HDBaseT automatically. Auto select between VGA and HDMI inputs. Also, it can be selected using front panel button. When both inputs connected with a video, HDMI input has priority over VGA after power reset. In addition, the ATZ HDBT-E70-WPV/RB could be powered by remote Matrix, receiver or local DC adapter and pass through RS232.
Features:
- Transmit VGA with Audio or HDMI up to 4@30Hz 24bit 40m over one Cat 5e/6/7 cable
- Support HDMI 4K x 2K and 3D
- HDCP Compliant
- EDID pass through for VGA and HDMI
- Auto output either VGA or HDMI input
- Button/RS232 control for signal switching while VGA and HDMI input simultaneously, RS232 command could be sent by local RS232 port or remote HDBaseT receiver
- RS232 pass through
- Remotely or Locally Powered, with support PD and POC power supply
- Status LED for all connections on front
- UK 2 GANG standard
