*Additional Receiver units to be purchased seperately (ATZ HDMI0E1505-RX)
_________________________________________________________________

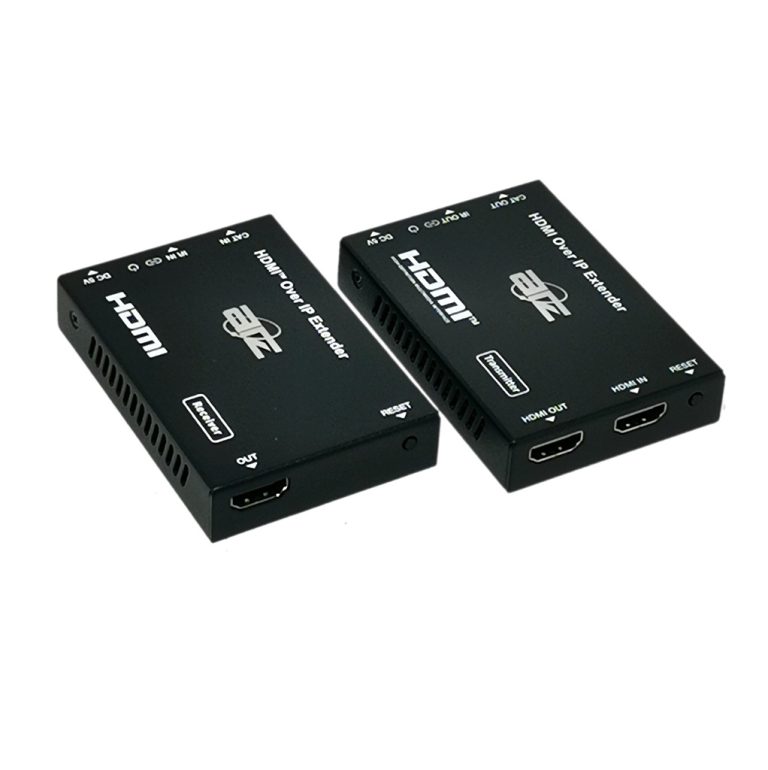

HDMI over IP Extender is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard network switcher, and extends distance up to 492ft / 150m between encoder and decoder via a CAT5e/6 cable. It offers configurable high quality, low-bandwidth H.265 compression video. The resolution is up to 1920×1200@60Hz. It also supports HDMI loop output on transmitter. HDMI over IP Extender includes two units: Encoder and Decoder. Encoder is responsible for obtaining HDMI signals for encoding, transmitting via CAT5e/6 cables. It supports HDMI loop output; Decoder is responsible for signal decoding and outputting HDMI signals to HD displays. The product supports one-way IR control signal transmission. It offers the most convenient solution for HDMI extension over a single CAT5e/6 cable and is the perfect solution for any application.
You can add more receivers over LAN to receive same display from the source. Theoretically, you can add up to 256 receivers in a LAN network.
Features:
- HDMI 1.3 and HDCP 1.4 compliant
- Support 6.75Gbps video bandwidth
- Video resolution is up to 1920×1200@60Hz
- Extend distance up to 492ft / 150m between encoder and decoder via a single CAT5e/6 cable
- Maximum Receivers supported: 256
- Adopt standard H.265 encoding / decoding
- Support standard IP swticher / router / hub
- Support one-way IR control signal transmission
- Compact design for easy and flexible installation
