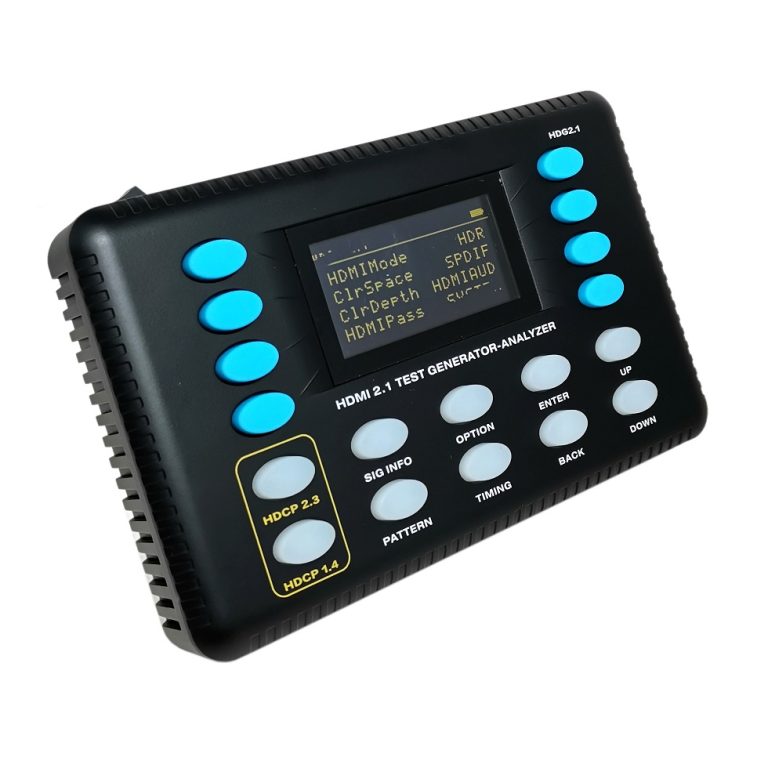

This test signal generator is a specialized analyzer for the AV integration field, designed to confirm that the HDMI system device conforms to the HDMI 2.1 and HDCP 2.3 specifications. It can generate and analyze HDMI signal for any HDMI systems to make it easy for system integration, project installation and debugging, cable manufacturing, even for engineering and test in laboratory.
Features:
- Support resolution up to 8K@50/60Hz 4:2:0 10-bit and 40Gbps video bandwidth, as specified in HDMI 2.1
- Up to 64 video resolutions and 33 patterns
- Color space: RGB/YCbCr444/YCbCr422/YCbCr420
- Color depth: 8/10/12-bit
- Built-in HDR test function in HDMI 2.1

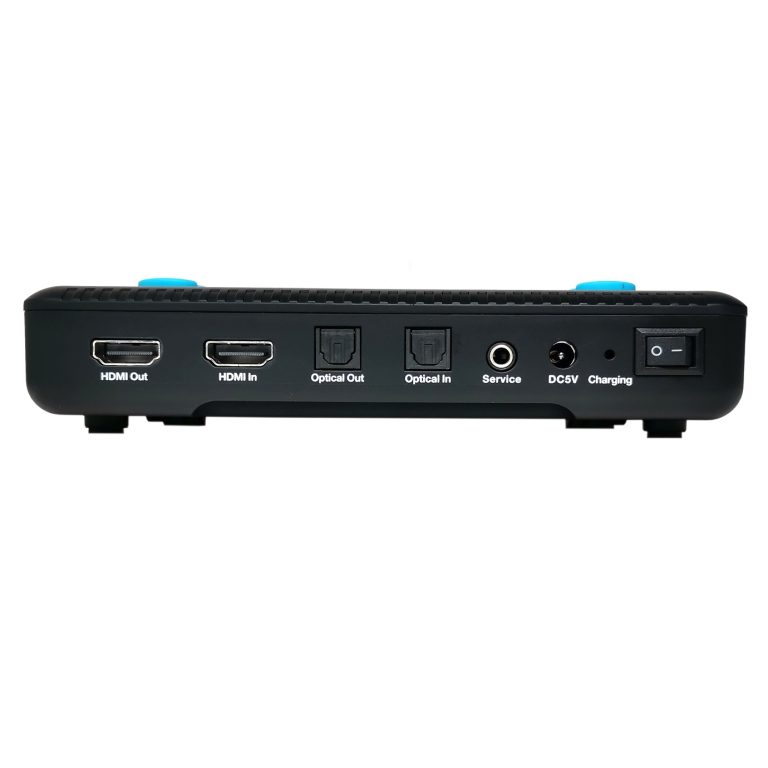

- HDMI audio source can be from the internal audio or external S/PDIF input audio
- The internal audio signal supports LPCM 2CH format, 48kHz sample rate and 16bits width
- Support HDCP 2.3/1.4 encryption verification pass or fail indication
- With EDID Read/Write functionality
- Support analyzing Timing/Format/Info frame/HDCP of HDMI input signal
- Support CEC control

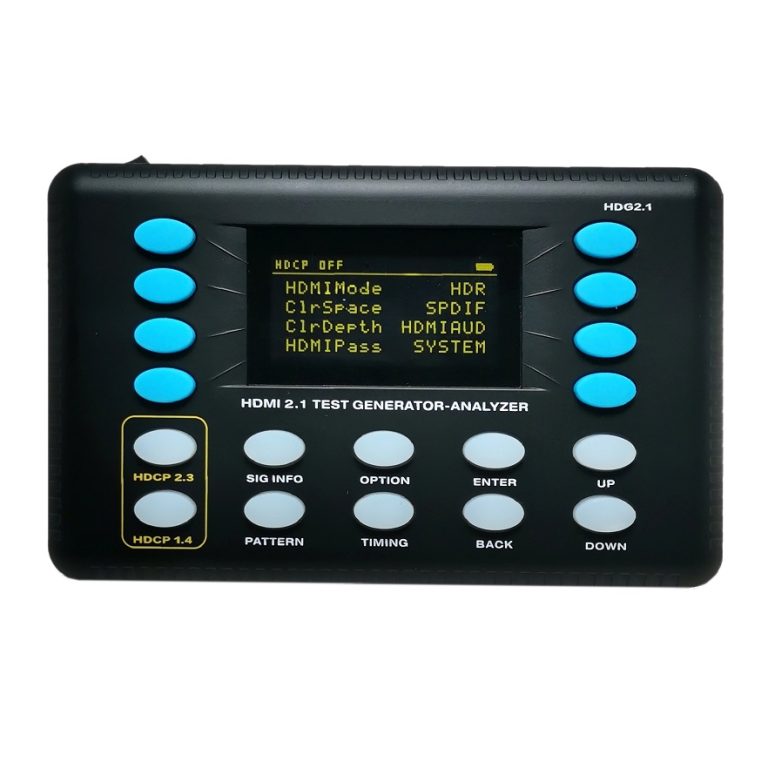

- Control via front panel buttons
- Portable design, built-in lithium battery of 2910mAh
