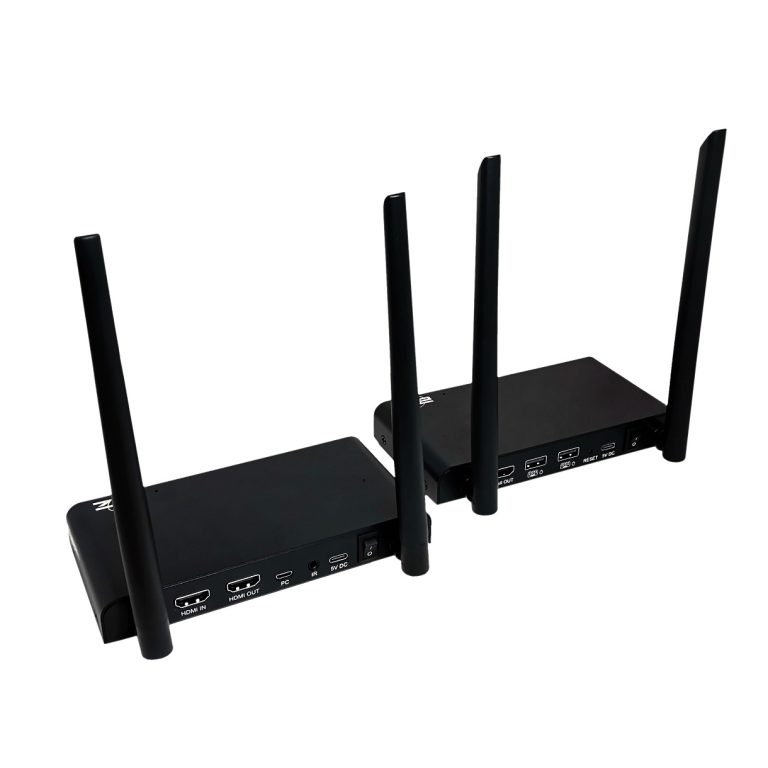

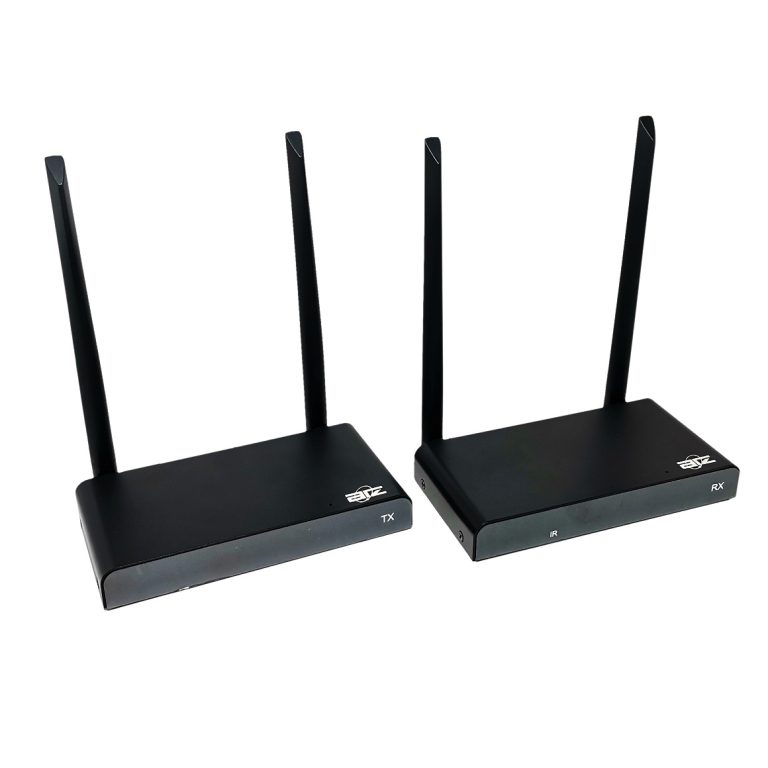

HDMI Wireless USB KVM HDMI 4K@60Hz Extender 150m w/IR
Description
This 4K wireless HDMI extender device is embedded with our latest vPlay Seamless Technology, supports 4K/60Hz resolution, super smooth playback with low latency.
You can now watch TV in your bedroom, study or any other room without messy cables. You can wirelessly send the HD video signal from an HDMI source (for example, your set-top box) to a second TV or projector in another room and continue to operate those remotely by using our wireless HDMI devices.
Support wireless HD transmitter with multiple receivers without latency. You can wireless stream the video content from one transmitter to multiple receivers simultaneously, excellent for applications like education or digital signage.
________________________________________________________________
Features:
• Private Seamless Technology ensures super smooth video playback.
• Supports 4Kx2K @60Hz resolution for Input and Output.
• As low as 100ms latency.
• Supports 20-60KHz IR extended function.
• Supports USB KVM function.
• Touch panel back control function.
• Transmission distance up to 150 meters in the clear line of sight.
• Auto Channel Selection.
• Equipped with the fast 802.11ac 2T2R WiFi MIMO module.
• High-security protection.
• Supports one transmitter to multiple receivers
Note:
If connect 1 TX to 1 RX, the distance is about 150 meters in open space.
If connect 1 TX to 2 RX, the distance is about 50 meters in open space.
If connect 1 TX to 3 RX, the distance is about 20 meters in open space.
If connect 1 TX to 4 RX, the distance is about 15 meters in open space.
*Remarks: For Export Only and not for use in Singapore
| Video Resolution | 4K/60; 4K/30; 4K/24; 1080P/60/50/30/24; 720P/60/50/30; 480P |
| Audio | Stereo, 44.1KHz |
| Wireless standard | IEEE 802.11b/g/n/ac, 2.4G/5GHz, 2T2R |
| Latency | About 100ms latency |
| HDMI Version | HDMI 2.0 with HDCP2.2 |
| Platform supported | Any devices that support HDMI Port |
| Distance About | 150 meters in the clear line of sight |
| Transmitter | |
| Interface: | HDMI out x1; HDMI in x1; Micro USB x1; 3.5mm jack x1; Type c x1 |
| LED | Red/Blue LED x1 |
| Switch Button | x1 |
| Power supply | DC5V/2A |
| Power Consumption | About 7W |
| Dimension | 154*77.5*21mm |
| Weight | 330g |
| Receiver | |
| Interface | HDMI out x1; USB x2; Type C x1 |
| LED | Blue LED x 1 |
| Power supply | DC5V/2A |
| Power Consumption | About 5W |
| Dimension | 154*77.5*21mm |
| Weight | 330g |
| Temperature and Humidity | |
| Operating: | 0°C to +40°C (+32°F to +104°F) |
| Storage: | -10°C to +60°C (+14°F to +140°F) |
| Operating: | 10% to 80% relative humidity |
