Description

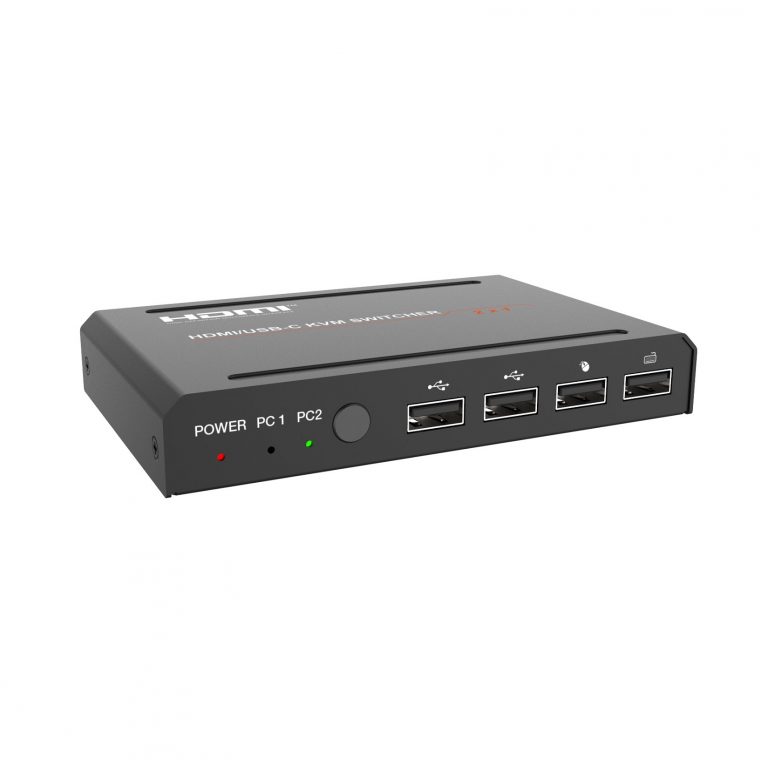

This video switcher can switch HDMI or USB-C input device signals (such as PC, laptop, Mac) to 1 HDMI display device (such as TV, projector, LED display), and realize 2 signal source devices to share 1 display device. It supports video resolution up to 4K2K@60Hz 4:4:4. The product is designed with 4 USB (2xUSB2.0, 2xUSB1.1) output ports, so that you can not only operate 2 source devices with keyboard and mouse, but also can share U disk and printer, which is widely used in various offices.
Features:
- HDMI 2.0, HDCP 2.2 / 1.x, DVI 1.0 and DP1.2 compliant
- Video resolution up to 4K2K@60Hz 4:4:4
- Support 18Gbps video bandwidth
- Support HDR, HDR10, HDR10+, Dolby Vision HLG pass-through
- Support HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
- Support HDMI/USB-C (AV) inputs and 1*HDMI+ 4*USB (2* USB2.0+ 2*USB1.1) outputs
- Support input auto switching
- Adaptive EDID, able to adapt to a variety of complex application environment
- Both HDMI and USB input and output support hot swap
- Control via front panel button/hot-key/mouse
- Simple to install, plug and play
Additional information
| Weight | 0.8 kg |
|---|---|
| Dimensions | 22 x 14 x 8 cm |
| Technical | |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 / 1.x |
| Video Bandwidth | 18Gbps |
| Video Resolution | 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
|
Color Depth |
8-bit, 10-bit, 12-bit (1080p@60Hz)
8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) |
| HDMI Audio Formats | PCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio |
| HDR | HDR, HDR 10, HDR 10+ and Dolby vision |
| USB Version | USB2.0 (Data transfer rate up to 480MB/S) |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge),
±4kV (Contact discharge) |
| Connection | |
|

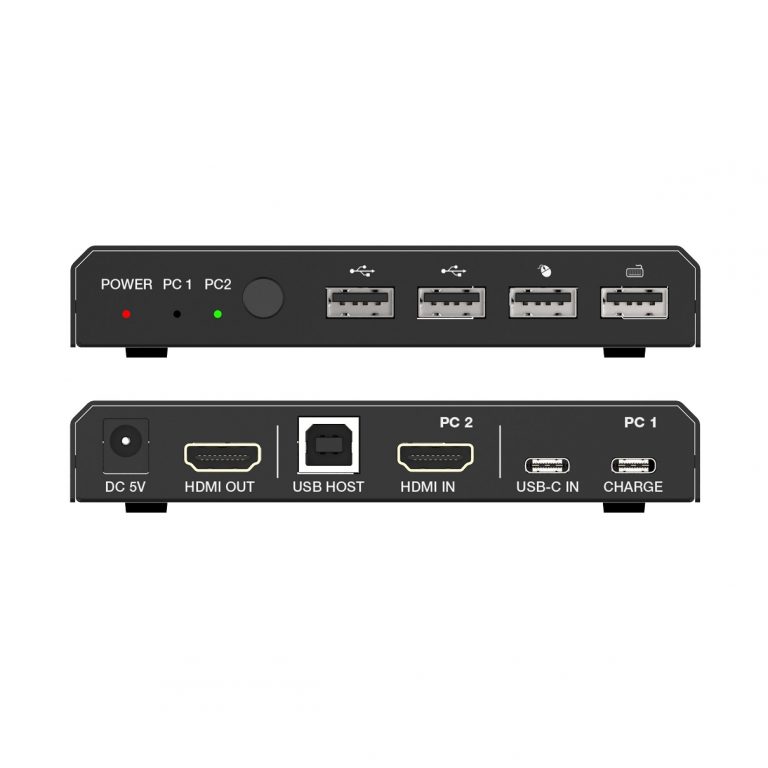

Input |
1 x HDMI Type A [19-pin female] 1 x USB-B
1 x USB-C (AV signal input) 1 x USB-C (POWER input. When switching to USB-C input, connect a power adapter to power the computer.) |
| Output | 1 x HDMI Type A [19-pin female] 4 x USB-A |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 142mm(W) × 82mm(D) × 21mm(H) |
| Weight | 300g |
| Power Supply | Input: DC 5V/2A. Support DC5-12V wide voltage power supply; Output with overcurrent protection function |
| Power Consumption | 1.5W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20~90% RH (non-condensing) |
