$420.00

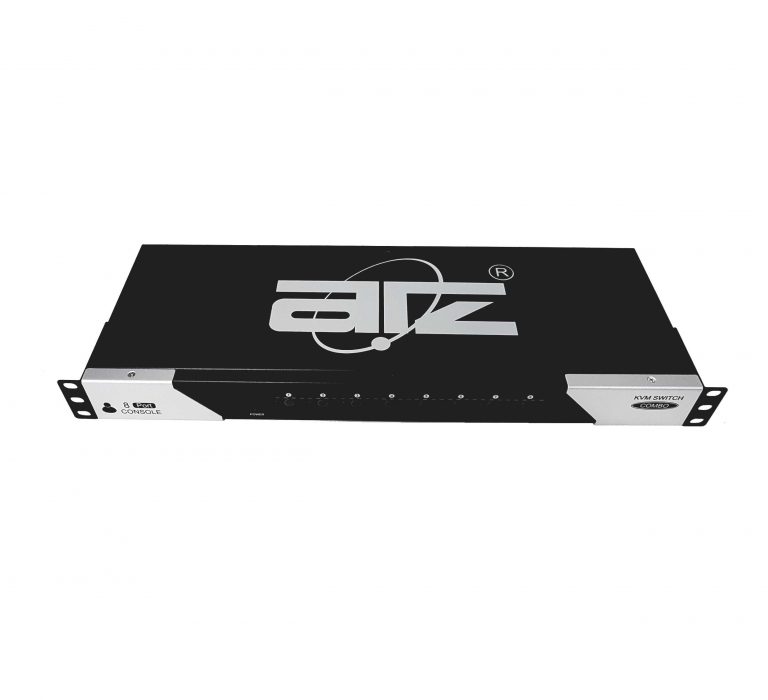

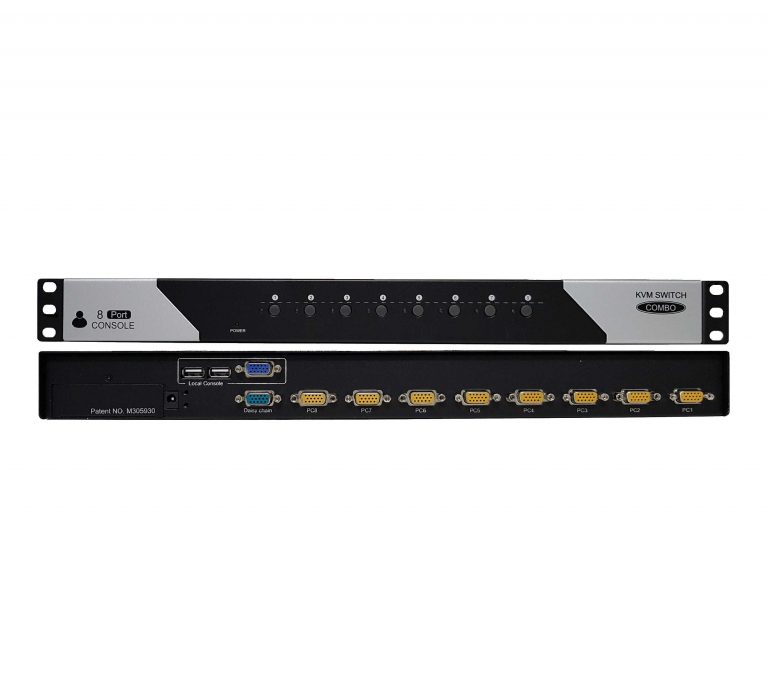

8/ 16 ports Combo(PS/2 & USB) KVM switch with USB local console + optional remote console, OSD, Rack mountable, Daisy Chainable, 1U size + KVM cables bundle
Features:
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Part No. | ATZ KS18 | ATZ KS116 | |
| No. of Computers | 8 | 16 | |
| Max. no. of Computers | 232 (Daisy Chain ) | 240 (Daisy Chain ) | |
| KVM port connector | HD DB15 Female | ||
| Local Console | 1x HD DB15 for VGA ( up to 1920×1440 resolution ) 2x USB Type A for KB / Mouse |
||
| Optional IP Remote Console | 1x RJ45 connector for 10/100M Ethernet ( up to 1600×1200 resolution )
1x DB9 male connector for modem, Null modem and serial power control 1x mini USB 2.0 receptacle |
||
| Daisy Chain | 1x DB15 ( Female ), up to 8 levels | ||
| Hot keys | Scroll-Lock, Caps-Lock, Num-Lock, Alt-Ctrl-Win | ||
| Compatibility | Mix PCs, SUNs and MACs, support Win7/Vista/2003/XP, Linux, Unix | ||
| Power | 100-240V AC 50/60Hz external power adapter | ||
| Environment | Operation temp.: 0 to 50°C Storage temp.: -20 to 60°C Humidity : 10% – 90%, non-condensing |
||
| Physical Dimensions / Net Weights | 448mm (W) x 167mm (D) x 44mm (H)／3kg | ||
| Packing Dimensions / Gross Weights | 560*120*250mm / 3.5kg | ||
| Related Items | |||
| ATZ KCU-1.8 | 1.8meter 2-in-1 KVM Cable – USB & VGA | ||
| ATZ KCU-3 | 3.0meter 2-in-1 KVM Cable – USB & VGA | ||
| ATZ KCU-5 | 5.0meter 2-in-1 KVM Cable – USB & VGA | ||
| ATZ KCP-1.8 | 1.8meter 2-in-1 KVM Cable – PS/2 & VGA | ||
| ATZ KCP-3 | 3.0meter 2-in-1 KVM Cable – PS/2 & VGA | ||
| ATZ KCP-5 | 5.0meter 2-in-1 KVM Cable – PS/2 & VGA | ||
| ATZ IP-101 | KVM over IP Module for Remote Bios Level Access | ||
