ATZ KSxx-TP

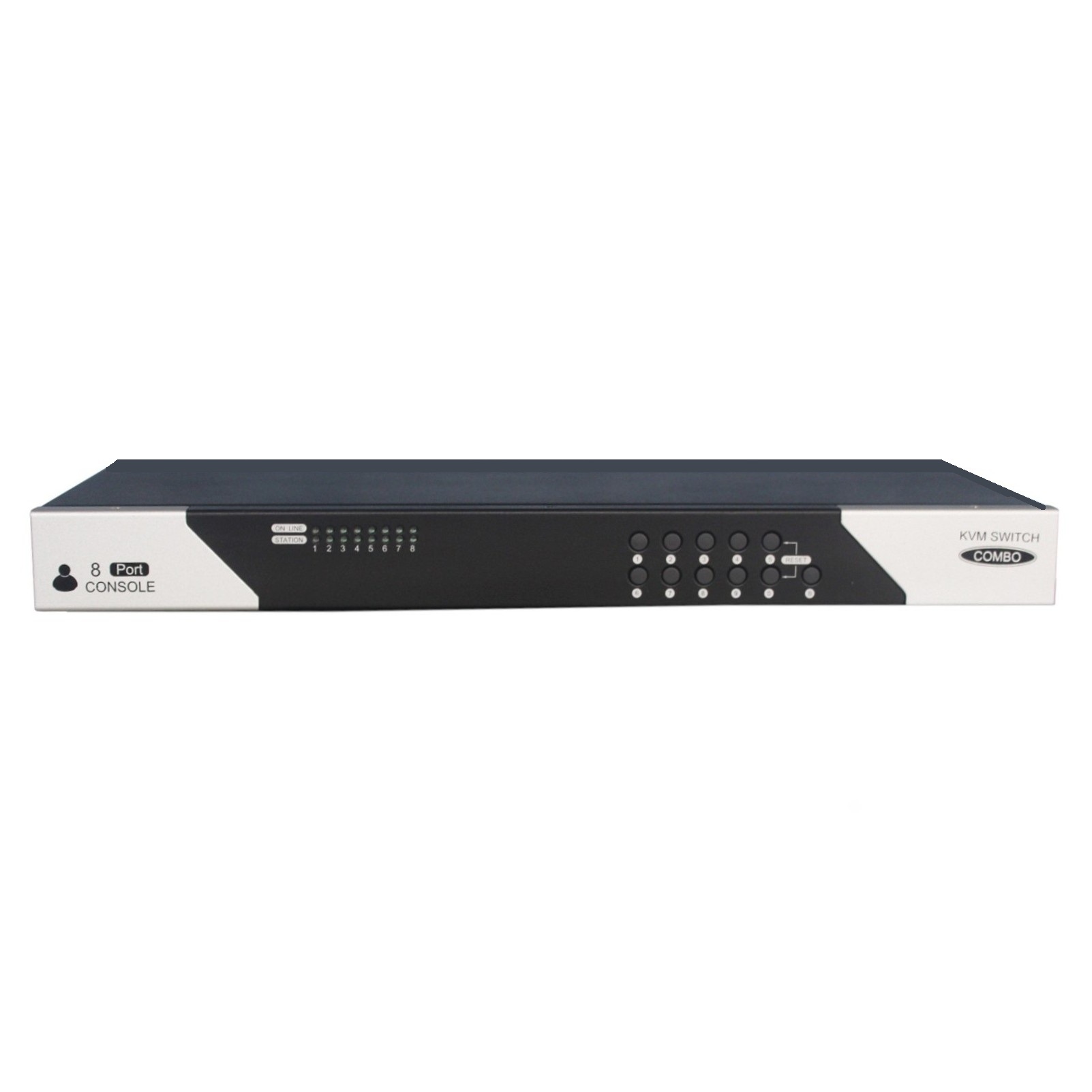

8/16/32 ports CAT.6 KVM switch


Share it:

*NOTE:
– LEADTIME MAY APPLY . ( 2-4 weeks for indent )
– IF STOCK IS REQUIRED URGENTLY, PLEASE CONTACT US DIRECTLY TO CHECK FOR STOCK AVAILABILTY BEFORE CHECKOUT.
Tel: 6659 8980 / Email: [email protected]

____________________________________________________________________
Features:

  • Capable of connecting 8/ 16/ 32 servers in 1U hardware space.
  • Support interface VGA-USB.
  • Up to 40 meters between server to KVM switch.
  • USB local console, optional remote IP console.

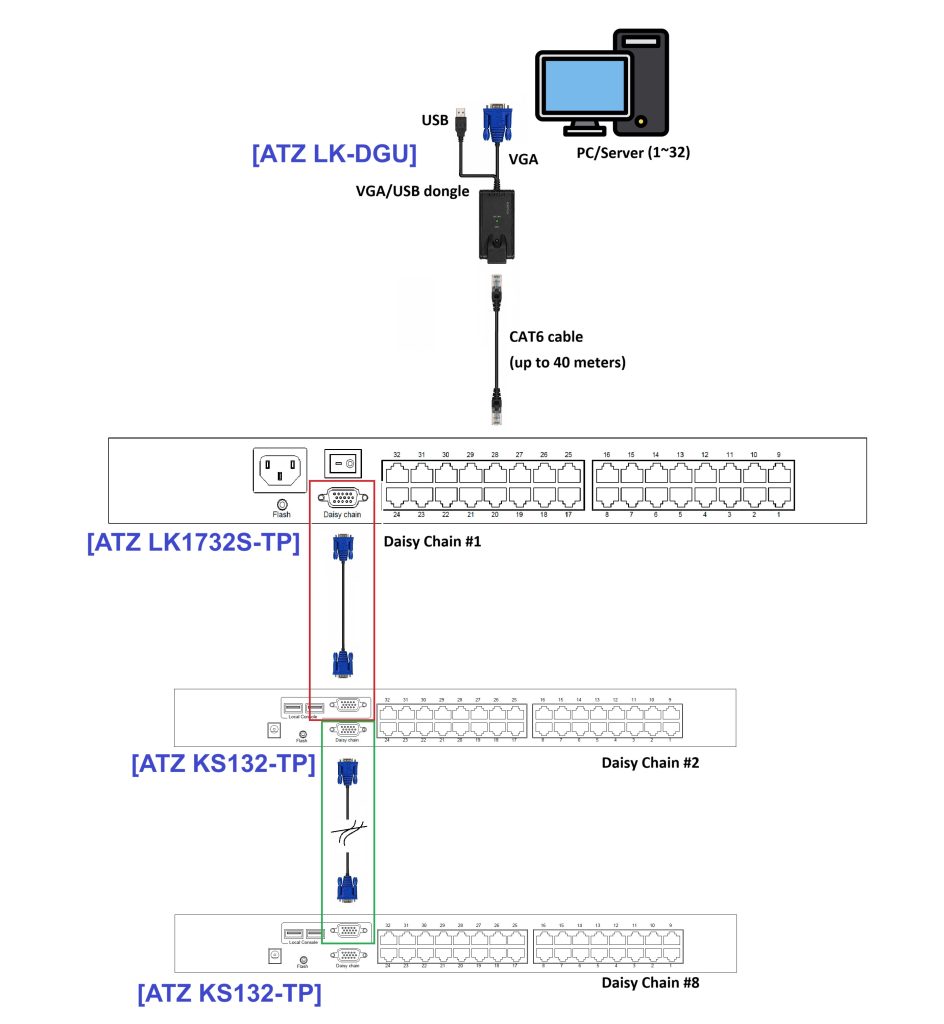

  • Cascade up to 8 levels, support mixed CAT6 & DB15 Combo KVM switch.
  • Mixed USB/SUN & MAC with multi-platform switch Capability.
  • Auto scan for monitoring PCs, easy select via push button, Hot keys and OSD.
  • Hot pluggable, no software or driver required.
  • Easy and quick installation.

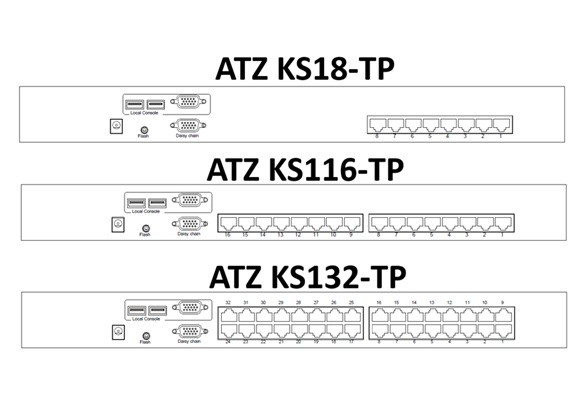

Part No. ATZ KS18-TP ATZ KS116-TP ATZ KS132-TP
No. of Computers 8 16 32
Max. no. of Computers 232 (Daisy Chain ) 240 (Daisy Chain ) 256 (Daisy Chain )
KVM port connector RJ 45
Local Console 1x HD DB15 for VGA ( up to 1920×1440 resolution )
2x USB Type A for KB / Mouse
Daisy Chain 1x DB15 ( Female ), up to 8 levels
Hot keys Scroll-Lock, Caps-Lock, Num-Lock, Alt-Ctrl-Win
Compatibility Mix PCs, SUNs and MACs, support Win7/Vista/2003/XP, Linux, Unix
Power 100-240V AC 50/60Hz external power adapter
Environment Operation temp.: 0 to 50°C
Storage temp.: -20 to 60°C
Humidity : 10% – 90%, non-condensing
Physical Dimensions /

Net Weights

448mm (W) x 167mm (D) x 44mm (H)/3kg
Packing Dimensions /

Gross Weights

560*120*250mm / 3.5kg
Related Item
ATZ LK-DGU CAT6 KVM Dongle – USB & VGA
Optional Items
ATZ LK-DGU-DVI-ADPTR DVI-to-VGA changer
ATZ LK-DGU-DP-ADPTR DisplayPort-to-VGA changer
