Description
Features:

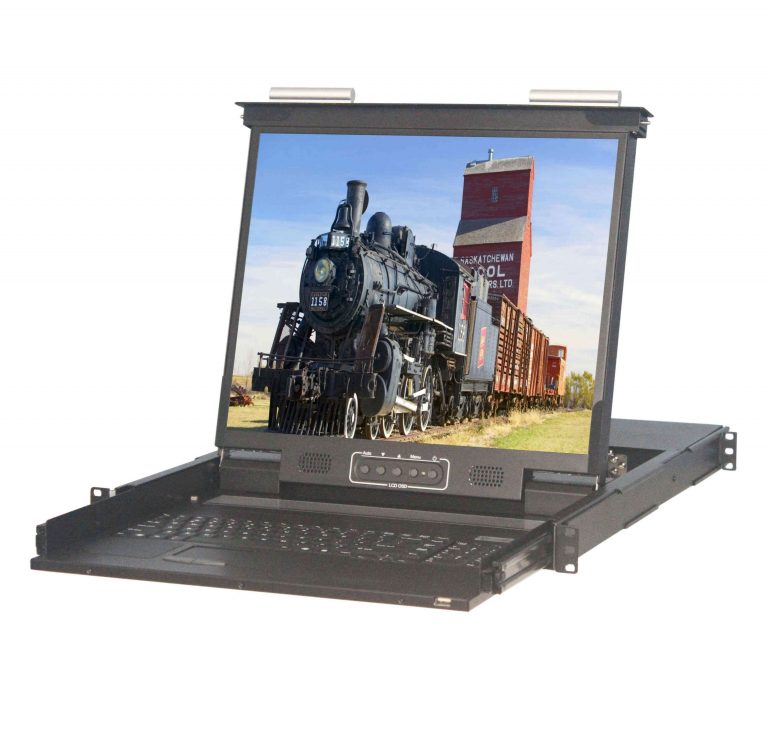

- 1U 17 or 19 inch LCD Console Drawer
- DVI & VGA Port
- Front 1xUSB, Rear 2xUSB 2.0 Type A, Sharing USB peripheral Device for computer (ex, flash disk, hard driver, KB/Mouse)
- 104-key keyboard with touch pad mouse.
- USB 2.0 Keyboard & Mouse
- Self-locking and auto release rails for ultra convenience.
- Build in 2x 2 watts speakersOptional:
- Composite Video input
- HDMI or Display Port input
- 3G / HD / SD –SDI Broadcast grade input
- 48V, 24V or 12V DC Power
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Part No. | ATZ LK1701PD | ATZ LK1901PD | ||
| Direct no. of Computers | 1 | |||
| KVM Connectors | DVI-D, VGA, USB | |||
| LCD | Size | 17” | 19’’ | |
| Backlight | LED | LED | ||
| Resolution | 1280 x 1024 | 1280 x 1024 | ||
| Max.color | 16.7M | 16.7M | ||
| Luminance | 250cd/m2 | 250cd/m2 | ||
| View Angle (H/V) | 176 / 170 | 170 / 176 | ||
| Contrast Ratio | 1000 : 1 | 1000 : 1 | ||
| USB HUB | 1x Front , 2x Rear USB 2.0 Type A for peripheral USB devices | |||
| Touch Screen | YES , for option ( Driver needed ) | |||
| KB/Mouse Emulation | USB 2.0 | |||
| Audio | 1 x 3.5 mm audio jack | |||
| Rack Depth | 500mm to 1100mm ( rack cabinet front rails to rear rails ) | |||
| Power | 100-240V AC 50/60Hz via IEC Type power cord | |||
| Environment |
Operation temp: 0 to 50℃ Storage temp: -20 to 60℃ Humidity: 10% – 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
|||

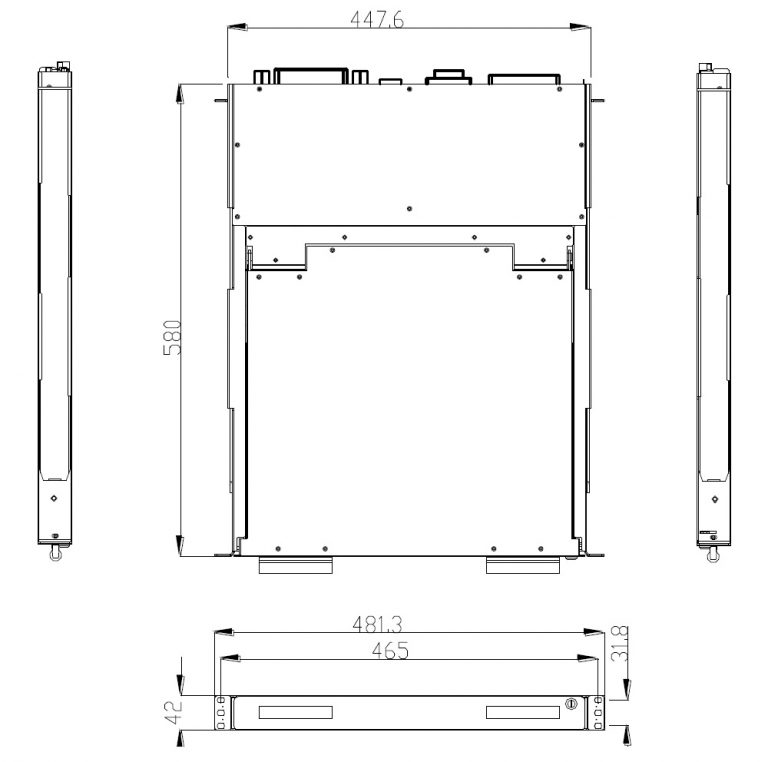

| Physical Dimensions / Net Weights | 448x42x580mm (WxHxD) / 12KG | 448x42x580mm (WxHxD) / 12.5KG | ||
| Packing Dimensions / Gross weights | 720x190x800mm (WxHxD) / 18KG | 720x190x800mm (WxHxD) / 18.5KG | ||
| Accessory | ||||
| 1x 1.8 meter IEC Type Power Cord , 1x 1.8 meter DVI-D Cable, 1x 1.8 meter VGA Cable , 1x 1.8 meter USB Cable , 1x 1.8 meter Audio Cable (each one) |
||||
