17″/19″ Quad Screen Splitter LCD KVM Console Drawer + 4 ports KVM w/DVI/USB Hub/Audio interface
Description

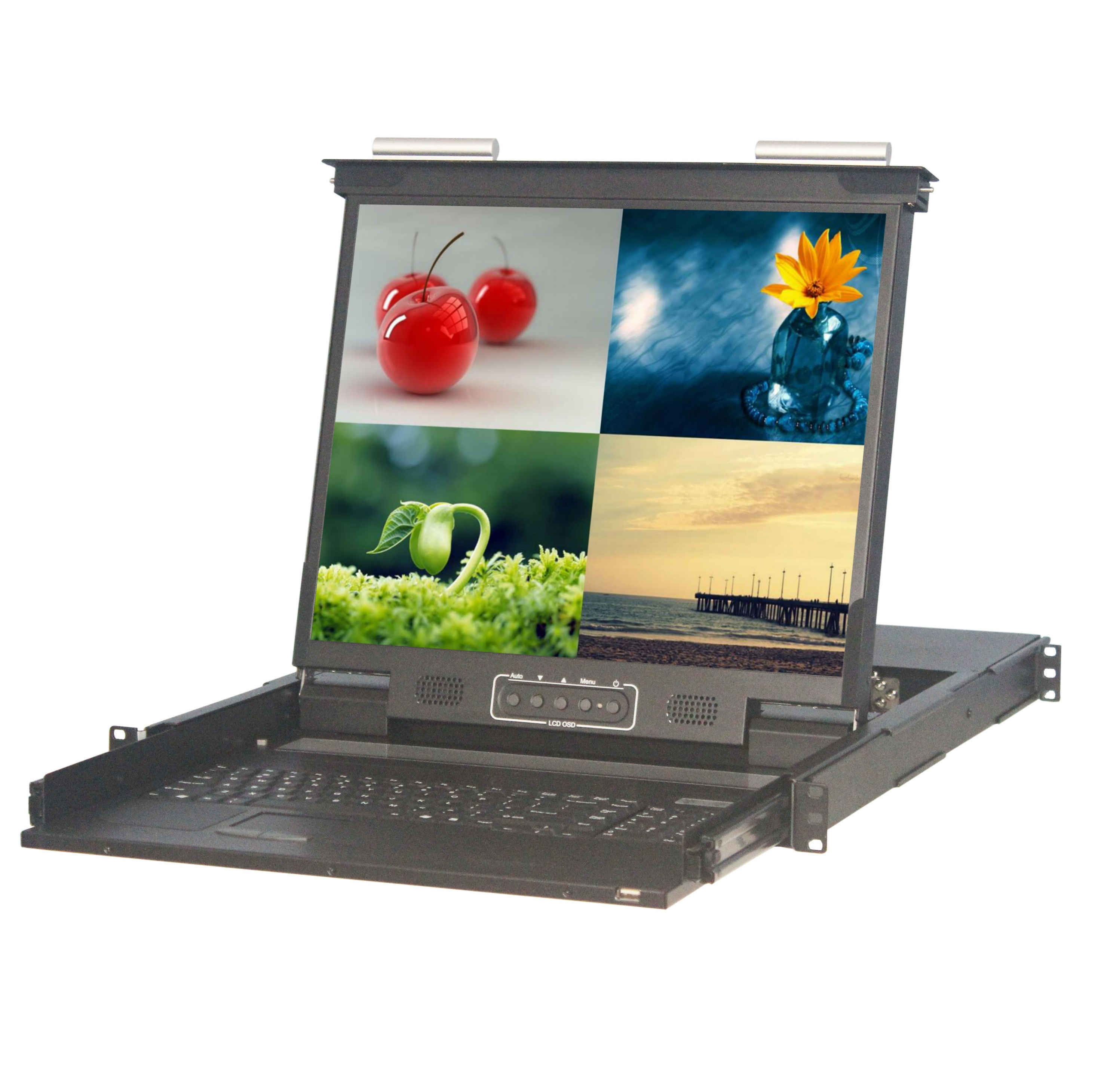

ATZ range of Quad Screen Splitter (QSS ) LCD console drawers represents the latest technology in KVM switching. The key advantage over conventional KVM switches is that it allows you to simultaneously display and administer 4 computers on a single console. It combines KVM features and a digital multi-viewer scaling and converting videos at both inputs and output.
Configured with 17 or 19 inch A-Grade LCD panels, integrated 4 ports DVI-D/USB/Audio/ HUB, support Full screen and Quad screen mode.

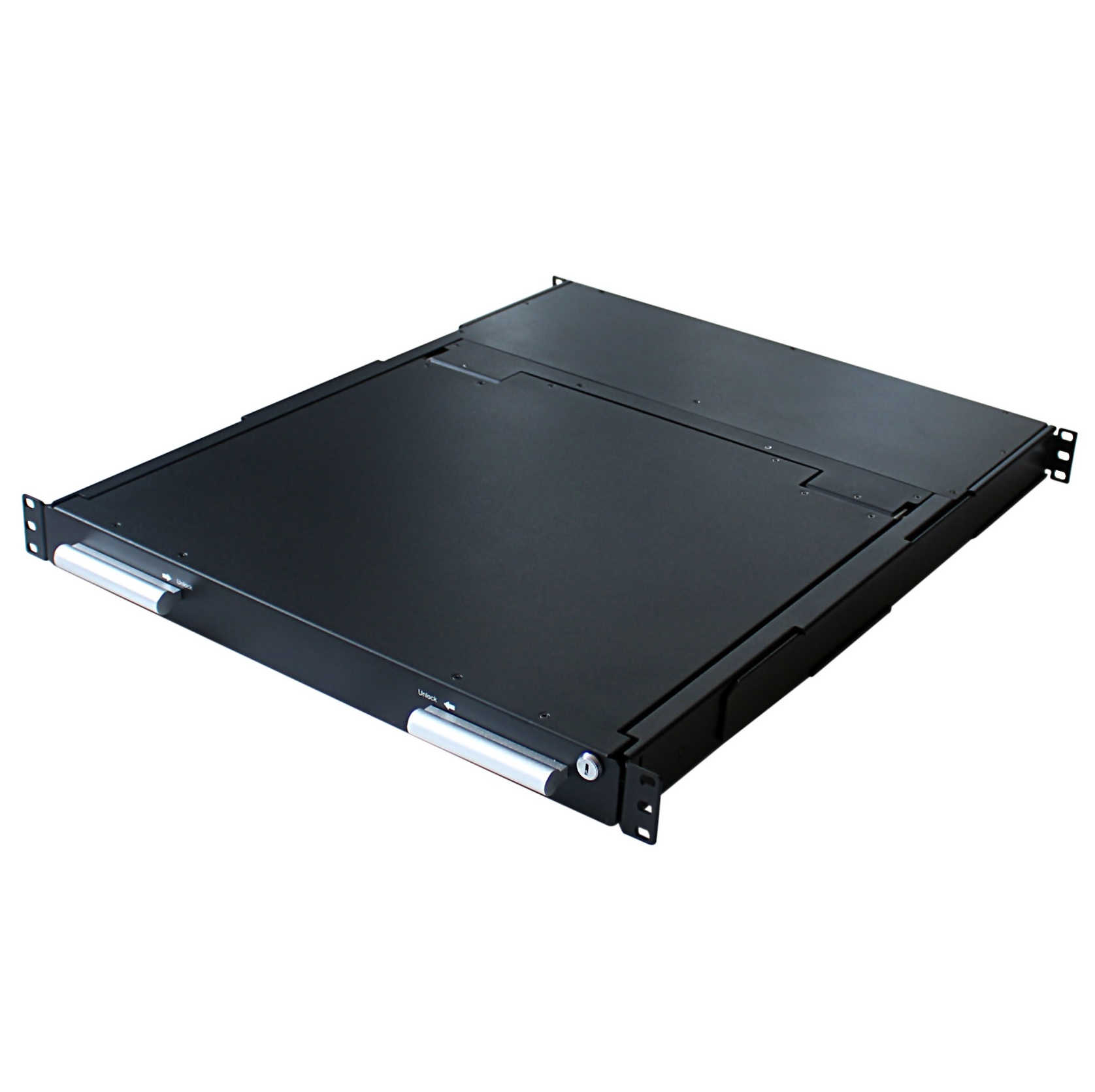

The self-locking rails when in the fully extended open position and the ultra convenient auto lock release when the LCD panel is closed, make for simple and hassle free operation.
Features:
- 1U single rail with 17” or 19’’ LCD Monitor,
- Four Independent DVI-D/USB/Audio/HUB interface for each PC.
- Support Full screen and Quad screen mode
- On Quad Screen mode, by Mouse moving across screen boundary or via Push Button or Hotkey to switching port
- Front 1 x , rear 2x USB 2.0 Type A, Sharing USB peripheral Device for each computer. (Ex, flash disk, hard driver, KB/Mouse)
- Build in 2x2w stereo speakers.
- Durable 104-key keyboard and touch pad.
- Quick and simple installation.
- Self-locking and auto release rails for ultra convenience
| Part No. | KVM-1704QSS | KVM-1904QSS | |
| Direct no. of Computers | 4 x DVI-D/ USB / Audio & 2x HUB | ||
| Maximum no. of Computers | 4 | ||
| LCD | Size | 17” | 19’’ |
| Backlight | LED | LED | |
| Resolution | 1280 x 1024 | 1280 x 1024 | |
| Max.color | 16.7M | 16.7M | |
| Luminance | 250cd/m2 | 250cd/m2 | |
| View Angle (H/V) | 176 / 170 | 170 / 160 | |
| Contrast Ratio | 1000 : 1 | 1000 : 1 | |
| Port Selection | Mouse moving across screen boundary , Push Button or Hotkey | ||
| USB HUB | Front 1 x , rear 2x USB 2.0 Type A for USB Peripheral Device | ||
| KB/Mouse Emulation | USB | ||
| Rack Depth | 500mm to 1100mm ( rack cabinet front rails to rear rails ) | ||
| Power | 100-240V AC 50/60Hz via IEC Type power cord | ||
| Environment |
Operation temp: 0 to 50℃ Storage temp: -20 to 60℃ Humidity: 10% – 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
||

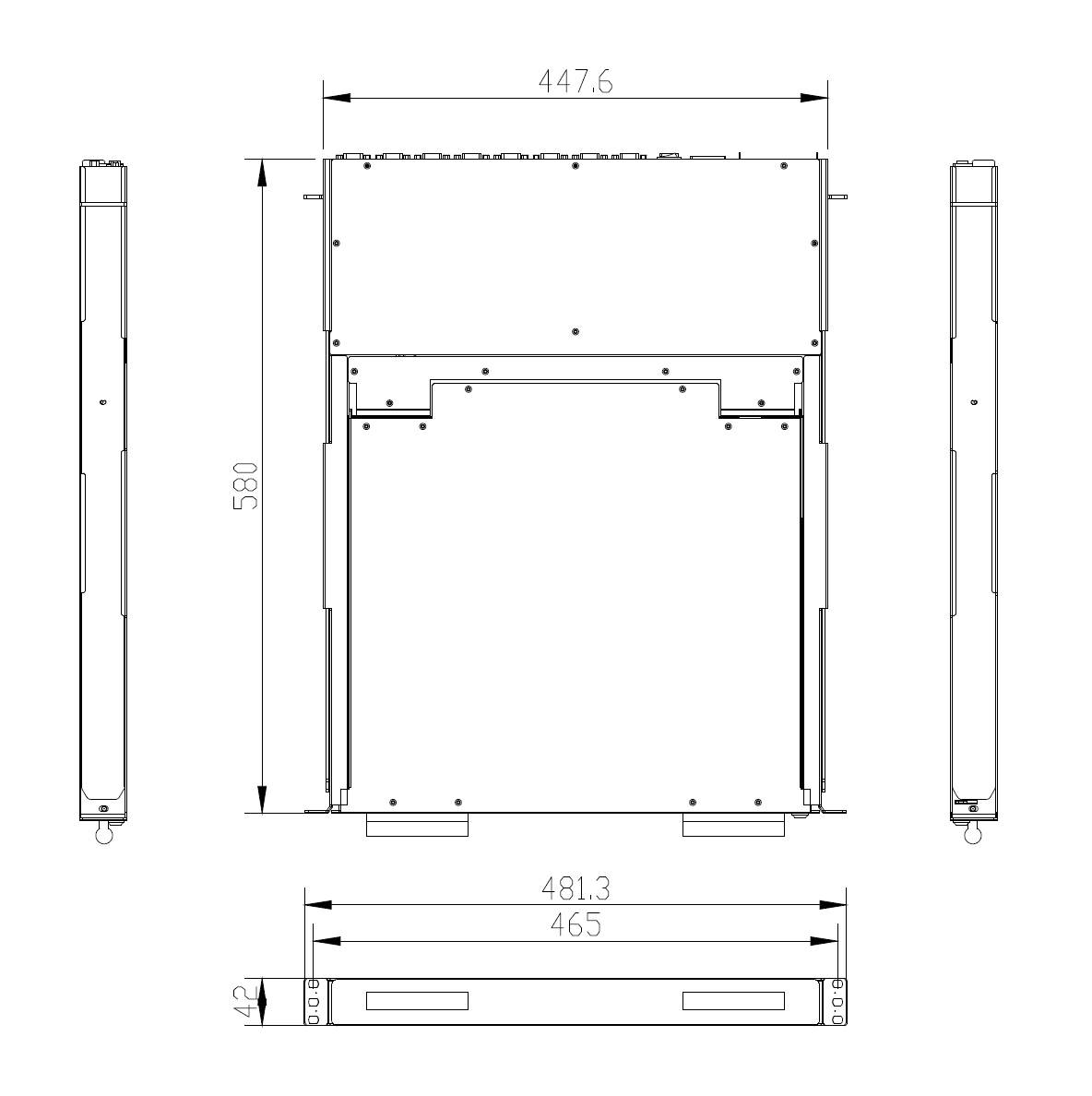

| Physical Dimensions / Net Weights | 448x42x580mm (WxHxD) / 12KG | 448x42x580mm (WxHxD) / 12.5KG | |
| Packing Dimensions / Gross weights | 720x190x800mm (WxHxD) / 18KG | 720x190x800mm (WxHxD) / 18.5KG | |
| Accessory | |||
| 1x 1.8meter IEC Type Power Cord 4x 1.8meter DVI Cable 4x 1.8meter USB Cable 4x 1.8meter Audio Cable |
|||
| Part No. | KVM-1704WQSS | |
| Direct no. of Computers | 4 x DVI-D/ USB / Audio & 2x HUB | |
| Maximum no. of Computers | 4 | |
| LCD | Size | 17.3” |
| Backlight | LED | |
| Resolution | 1920*1080 FULL HD (support up to 1920*1200) | |
| Max.color | 262K | |
| Luminance | 300cd/m2 | |
| View Angel (H/V) | 140/ 120 | |
| Contrast Ratio | 650:1 | |
| Port Selection | Mouse moving across screen boundary , Push Button or Hotkey | |
| USB HUB | Front 1 x , rear 2x USB 2.0 Type A for USB Peripheral Device | |
| KB/Mouse Emulation | USB | |
| Rack Depth | 500mm to 1100mm ( rack cabinet front rails to rear rails ) | |
| Power | 100-240V AC 50/60Hz via IEC Type power cord | |
| Environment |
Operation temp: 0 to 50℃ Storage temp: -20 to 60℃ Humidity: 10% – 90%, non-condensing Shock: 10G acceleration ( 11ms duration) Vibration: 17 to 500Hz 1G PTP |
|
| Physical Dimensions / Net Weights | 448x42x580mm (WxHxD) / 12.5KG | |
| Packing Dimensions / Gross weights | 720x190x800mm (WxHxD) / 18.5KG | |
| Accessory | ||
| 1x 1.8meter IEC Type Power Cord 4x 1.8meter DVI Cable 4x 1.8meter USB Cable 4x 1.8meter Audio Cable |
||
