ATZ LKD1701W-T3

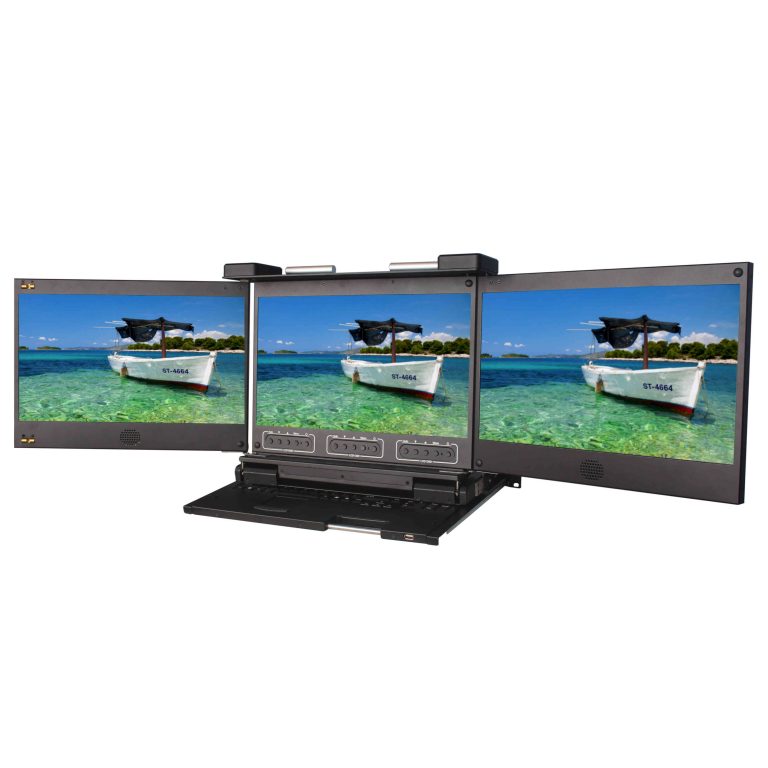

17.3″ FHD Triple Screen LCD console Drawer + multi-input DVI/VGA/Audio/USB Hub – Dual Rail
Features:
- 2U 17.3 inch widescreen Triple LCD Console Drawer
- Triple DVI & VGA Port
- 1920 x 1200 native WUXGA Ultra high resolution
- Support FHD with 1080p resolution.
- Front 1xUSB, Rear 2xUSB 2.0 Type A, Sharing USB peripheral Device for computer (ex, flash disk, hard driver, KB/Mouse)
- 104-key keyboard with touch pad mouse.
- USB 2.0 Keyboard & Mouse

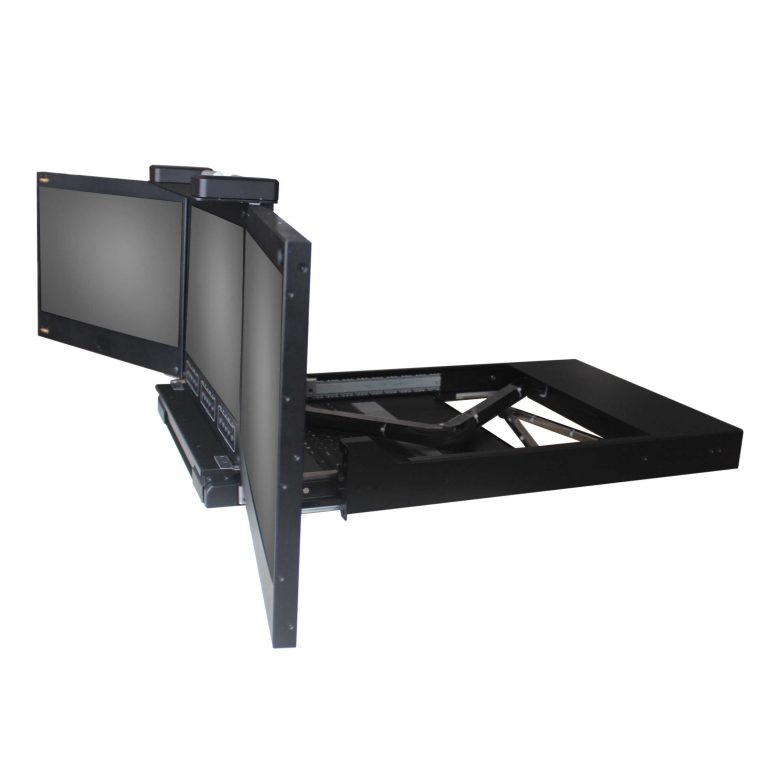

- Self-locking and auto release rails for ultra convenience.
- Build in 2x 2 watts speakers
Optional:
- Composite Video input
- HDMI or Display Port input
- 3G / HD / SD –SDI Broadcast grade input
- 48V, 24V or 12V DC Power
| Weight |
22 kg |
| Dimensions |
73.5 x 59 x 23.5 cm |
| Part No. |
ATZ LKD1701W-T3 |
| No. of ports |
1 |
| KVM Connectors |
3x DVI-D & 3x VGA / 1 x USB KB & Mouse |
| LCD |
Size |
TRIPLE 17.3 inch FULL HD display |
| Backlight |
LED |
| Resolution |
1920*1080 ( support resolution up to 1920*1200 ) |
| Max.color |
262K |
| Luminance |
300 cd/m2 |
| View Angle (H/V) |
140 / 120 |
| Contrast Ratio |
650 : 1 |
| Port Selection |
N/A |
| USB HUB |
Yes , Front x1 & Rear x 2 USB 2.0 Type A for USB Peripheral Device |
| Audio |
1 x 3.5mm Audio jack |
| KB/Mouse Emulation |
USB 2.0 |
| Rack Depth ( rack cabinet front rails to rear rails ) |
580mm to 950mm |
| Power |
100-240V AC 50/60Hz via IEC Type power cord |
| Environment |
Operation temp: 0 to 50℃
Storage temp: -20 to 60℃
Humidity: 10% – 90%, non-condensing
Shock: 10G acceleration ( 11ms duration)
Vibration: 17 to 500Hz 1G PTP
|

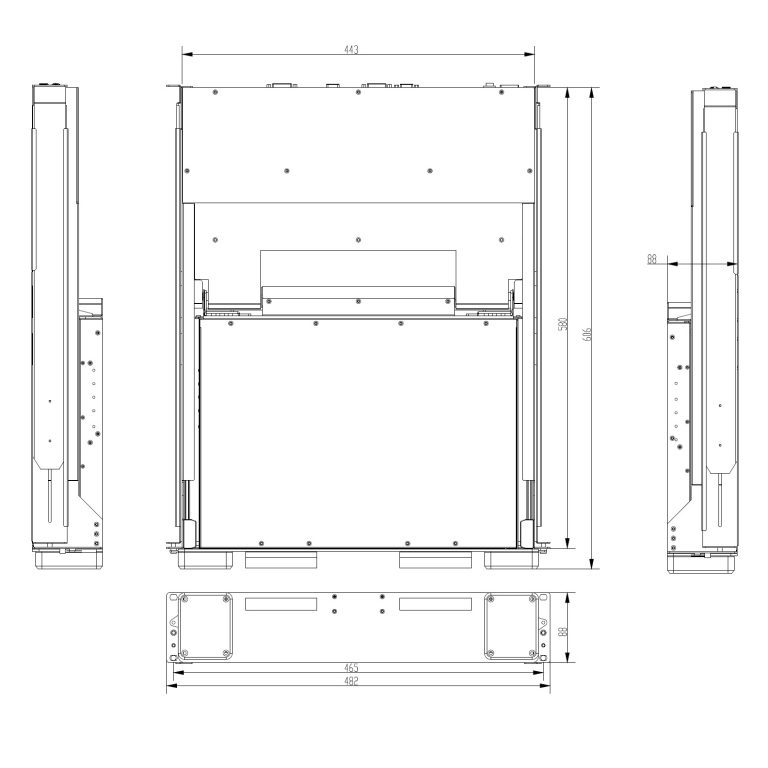

Physical Dimensions
( W x H x D ) / Net Weights (KG) |
443x84x 580mm / 18.5 |
Packing Dimensions
( W x H x D ) / Gross weights (KG) |
735x235x590mm / 22.0 |
| Accessory |
1x 1.8meter IEC Type Power Cord
3x 1.8meter DVI Cable
3x 1.8meter VGA Cable
1x 1.8meter USB Cable
1x 1.8meter Audio Cable |
