| User Controls Interface: |
| Power ON / OFF via Front Button |
| Power Mode Status LED indicator |
| OSD ( On Screen Display ) Buttons |
| LCD Characteristics : |
| Screen Size |
6.5 inch |
| Backlight Type |
LED |
| Resolution |
640×480 |
| Contrast Ratio |
600:1 |
| Brightness ( cd/m2 ) |
700 |
| View Angles ( H/V ) |
160/140 |
| Pixel Size ( HxV ) mm |
0.207×0.207 |
| Max. Color |
16.2M |
| MTBF ( Hrs. ) |
50,000 |
| Mechanical and Environment: |
| Height |
3.5U |
| IP Protect |
N/A |
| Mounting |
Rack Mount |
| Construction |
Metal Housing |
| Operating Temperature |
0 – 50 deg. C |
| Operating Humidity |
5% – 95% ( non -condensing ) |
| Anti-Vibration |
5 – 500 Hz / 1 Grms PTP |
| Anti-Shock |
15G / Peak ( 11 ms ) |
| Physical Dimension (WxHxD) |
483 x 154 x 63 (mm) |
| Packing Dimension (WxHxD) |
600 x 190 x 290 (mm) |
| Net Weight / Gross Weight |
5.5 / 6.5 (KGs) |
| Certification and Approvals |
CE / FCC / RoHs |

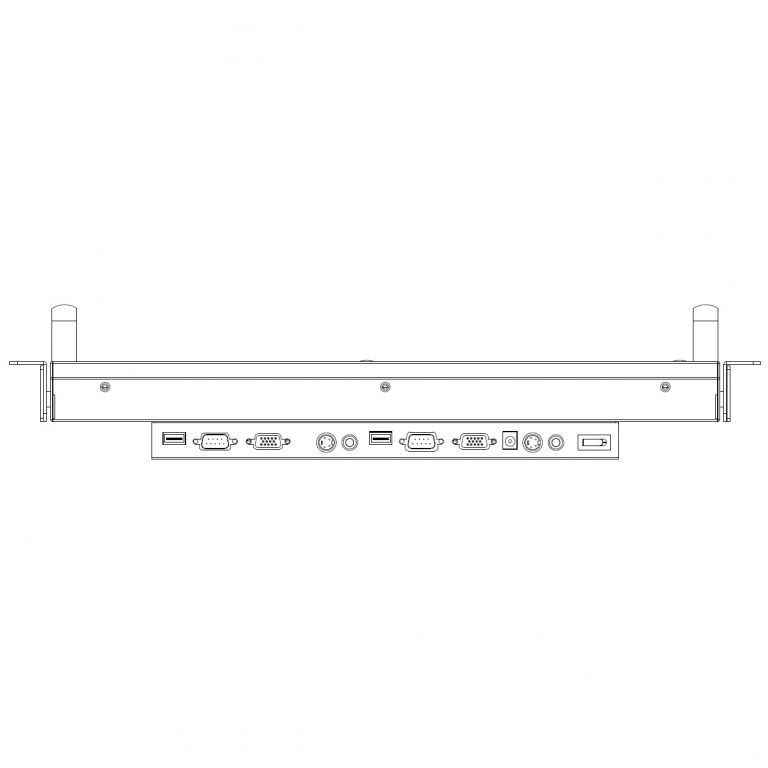

| Input Signals: |
| VGA |
D-SUB 15Pin Connector (Female) |
| DVI-D |
DVI-D 24 Pin Connector (Female) |
| Audio |
3.5” Jack |
| Power Input |
External power adapter |
| Touch-USB ( option ) |
USB A Type connector |
| Touch-RS232 ( option ) |
D-SUB 9P connector ( Female ) |
| Power Specifications : |
| AC Power Input |
100-240VAC / DC 12V external AC adapter |
| Wide Range DC Power Input (option) |
Screw Type Terminal Block with internal wide Range DC 9-36V power module |
