SKU: ATZ NET-KS-RJC-C6A-SH Category:

ATZ NET-KS-RJC-C6A-SH

$4.00

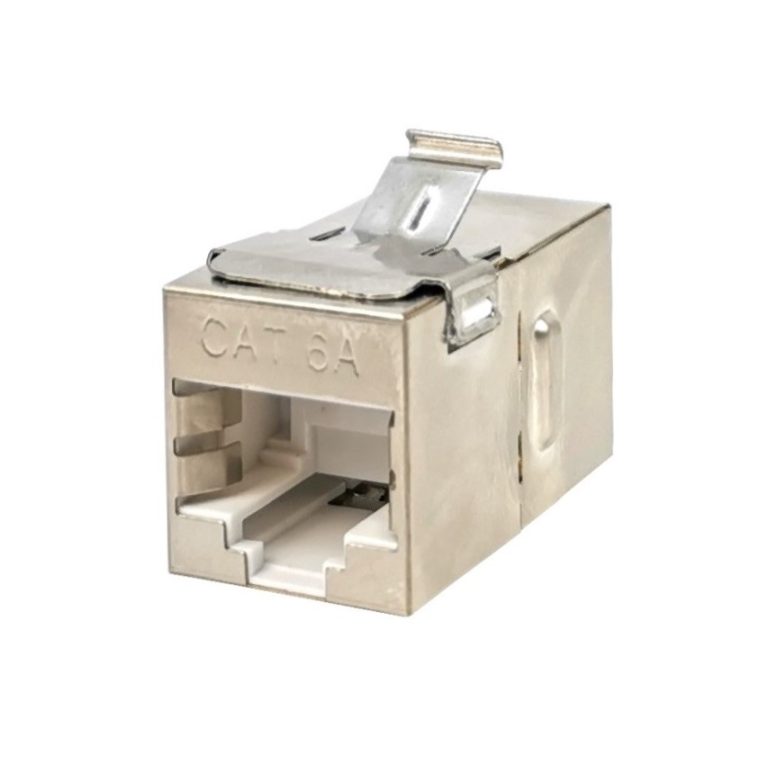

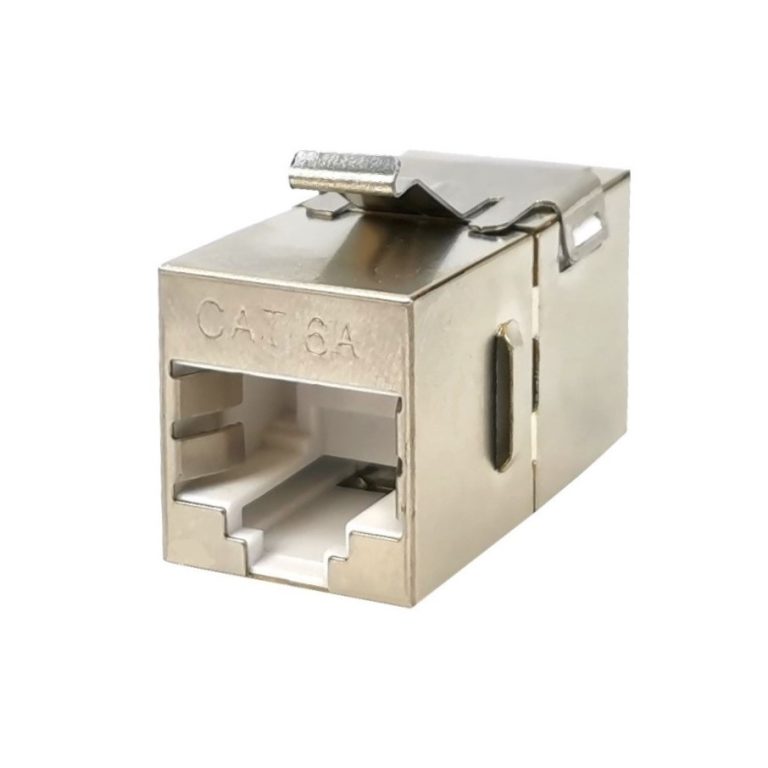

Cat6A Keystone Shielded Inline Coupler


Share it:

This Cat 6a Keystone Inline Coupler Shielded for Cat 5, Cat 5e, Cat 6 and Cat 6a cables, keystone wall plate, patch panel connection and etc. Gold plated contacts and easy snap-in retaining clip ensure a secure and corrosion free connection metal enclosures provide reliable shielding. Cat 6a Shielded Keystone Couplers provide the ultimate performance at a competitive price.

They are being used in a home network installation or being pushed to the limits by the largest data hungry applications out there these Keystone Couplers will live up to the expectations time and time again. The Phosphor Bronze termination contacts will stand up to multiple plug-ins while the Keystone Couplers as a whole meet or exceed the industry standard TIA/EIA 568-B.

Features:

  • CAT6A Performance Speeds of up to 10G.
  • Reliable Connector, and Durable Housing.
  • Meticulously Engineered to Deliver Exceptional Performance.
  • Fully Shielded.
  • T568A & T568B Compatible.
  • Meets and Exceeds ANSI/EIA/TIA 568 Standards.
  • RoHS Compliant.
  • Housing Material: ABS, UL94V-0
  • Contacts Material: Phosphor Bronze
  • Contact Plating: Gold 50µ” plating over Nickel
  • PCB: FR4 UL94V-0
  • Shield: Brass with Nickel plating
  • Retention Strength: 7.7kg between jack and plug
  • DC current rating: 1.5A (Max.)
  • Voltage rating: 150V
  • Insulation resistance: 500MΩ
  • Rating: CAT 6A
  • Operating temp range: -40°C to 70°C
  • Durability: 750 cycles plug-jack mating and unmating test
