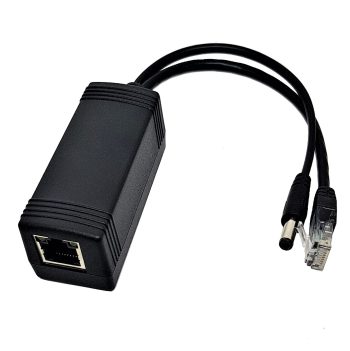

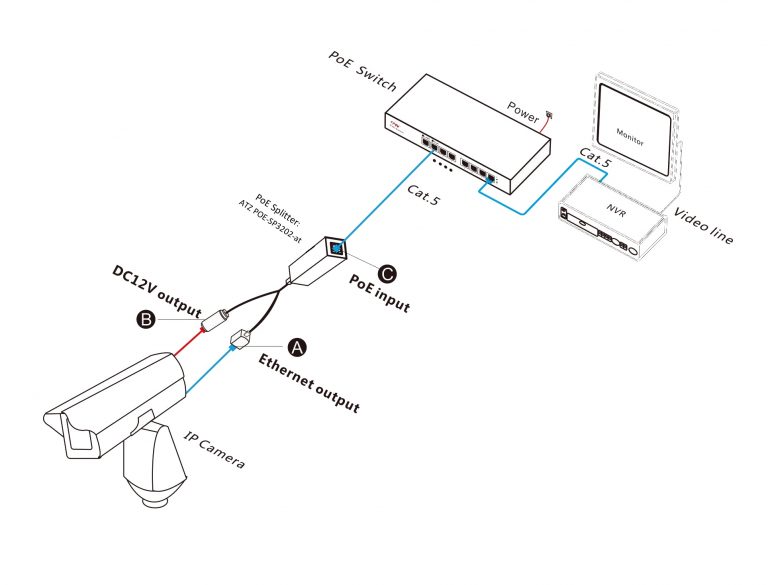

ATZ POE-SP3202-at, a cost-effective and highly reliable remote PoE PD device based on standard IEEE802.3at, transmitting power and data through a splitter cable. It provides power and data to devices without PoE function when connecting with a PoE Switch or PSE Injector. The output voltage is 12V, and equipped with PoE power supply device, it could effectively expand the scale of Security Surveillance & Wireless Network without the limitation of power line layout.
With transformer isolated design for circuit input and output stage of ATZ POE-SP3202-at, it strengthens anti-jamming capability and protection for circuit. It also effectively reduces PoE Switch Abnormal Power Supply matters caused by common ground problem, meeting the standard of IEEE802.3at. Compatible with power supply circuitry of both End-span(1,2+ 3,6-) and Mid-span (4,5+ 7,8-). Features output power 25.5W low ripple, with more than 82% high efficiency. Port Isolation Protection of up to 1500V, Protection for short circuit, over-current & over-temperature.
Features:
- 1x 10/100Mbps RJ45 port+ 1*10/100M male output port+1*(5.5*2.1mm) DC output port
- Support IEEE 802.3at Ethernet power standard
- 10/100M data transmission
- Output voltage:12V(Default)
- Circuit protection to protect the connected device
- Top-quality design, stable and reliable
