ATZ POE-SP5712F-T

$9.00

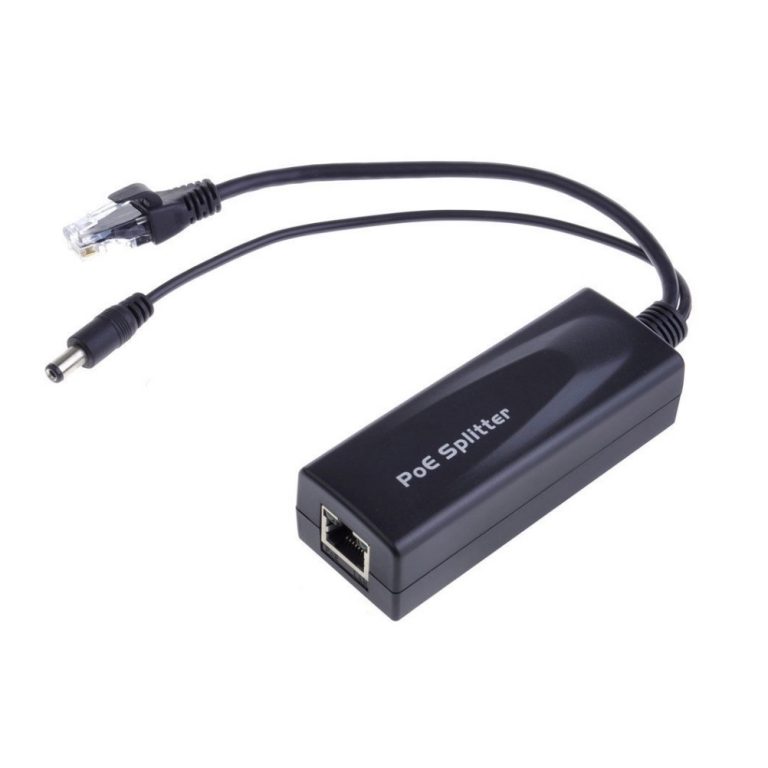

PoE Splitter 10/100M IEEE 802.3af 12V/1A (12W)

Out of stock

Add to Wishlist
Compare
SKU: ATZ POE-SP5712F-T Category:

Description

Features:

  • Complies with IEEE 802.3af Power over Ethernet, IEEE 802.3/802.3at 10/100Base-T Ethernet standard.
  • Splits the 48V DC power over RJ-45 Ethernet cable into different DC output.
  • LED indicators for power input indication.
  • Data and power transmission distance up to 100 meters.
  • Auto-Detect of IEEE 802.3af PoE equipment, protects devices from being damaged by incorrect installation.
  • Works with EIA568, category 5,4-pair cables for 10Base-T or 100Base-TX.

Additional information

Weight 0.15 kg
Dimensions 15 x 5 x 5 cm
Input Power requirements 1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Input Power Voltage 48Vdc/0.3A
Output Power 12V(1A/2A)
LED POE normal operation (Orange)
DC Power Plug 5.5*2.1*12mm / Cable length: 25cm
RJ45 Cable Cable length 25cm
Dimensions 94mm x 35mm x 27.4mm
Weight 76g
Diagnostic LED DC Power (Green)
Connectors Shielded RJ45, EIA 568B
Environmental Conditions
Operating Ambient temperature -10 to 45°
Regulatory IEEE802.3at, IEEE802.3af
Compliance RoHS, CE
Safety Approvals CE, FCC, EN 60950:2006
