This surge protector refer to GB / 2004 / IEC61643 – T18802.21 2006 strikes design
Features:
Function characteristics:

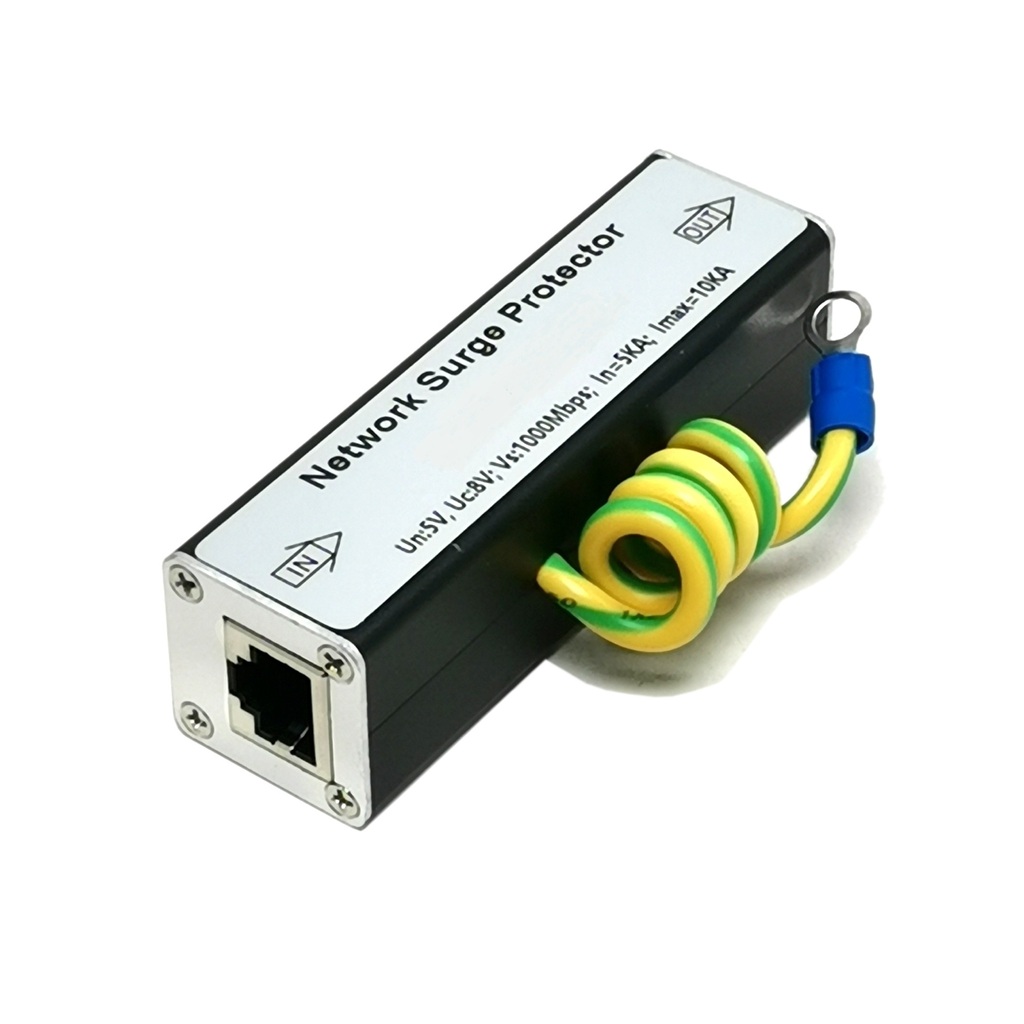

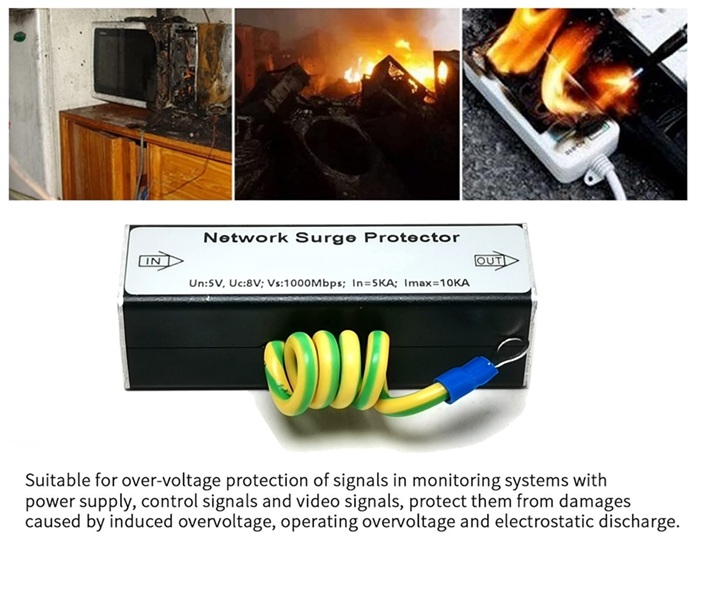

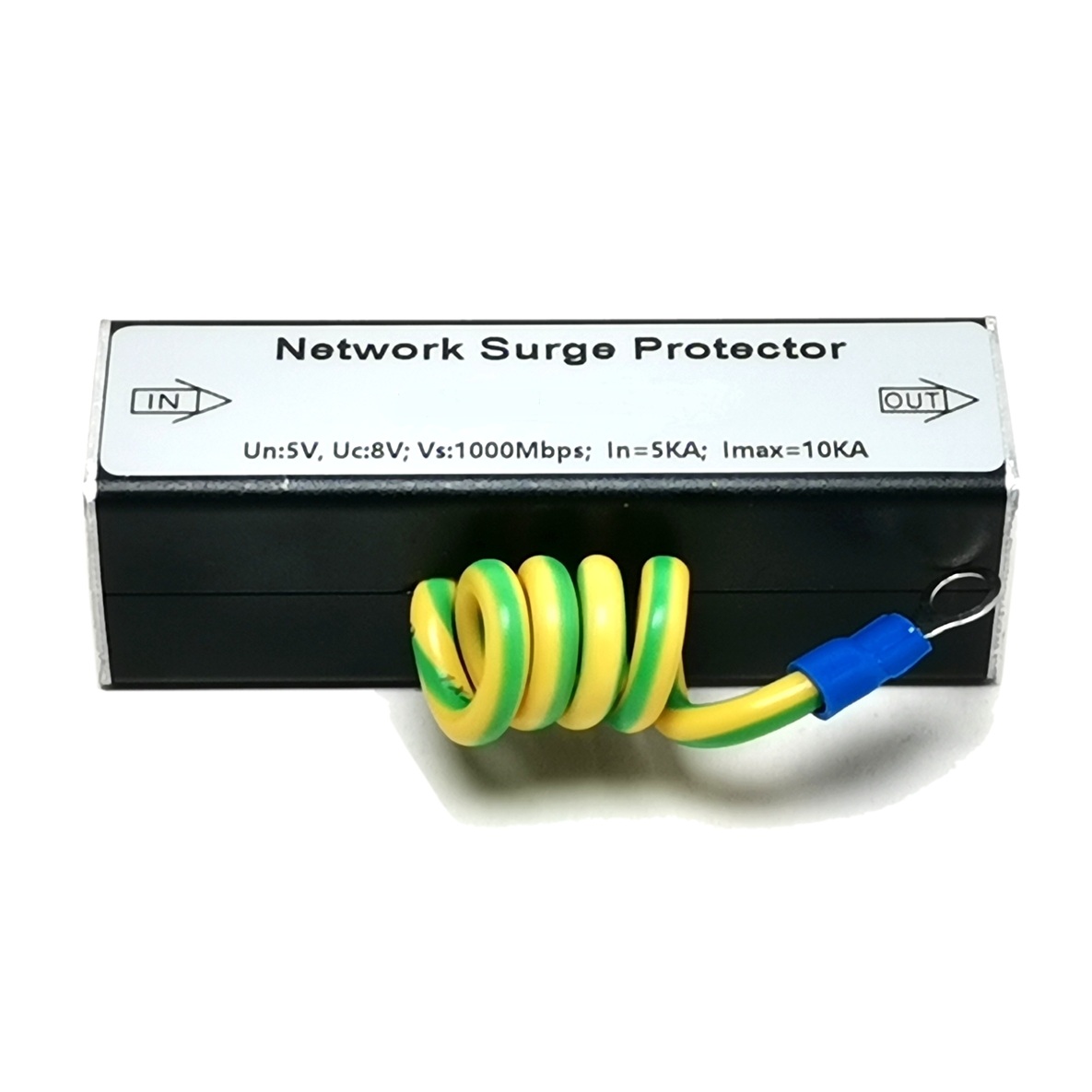

Design for computer network signals, especially for the high speed network switch devices, modem, fax, data communication, etc. This protection device provides over-voltage protection with over-voltage sensing, preventing over-voltage and electronic discharge damage. It has multi-level protection, flow capacity, low clamping voltage, fast response time, low insertion loss, transmission rate advantages.
Usage environment:
Temperature:-40℃～70℃；
Relative humidity：≤95%；
Atmospheric pressure：70kPa～106 kPa.
Working principle:
Surge protector link to protect front-end equipment. When transmission lines are expose to lightning and other instantaneous over-voltage shock, the impulse current through the surge protector protection branch will be discharged into the earth, maintaining the output voltage limit in the device to keep within voltage range, thereby preventing damage of the operating equipment.
