Description

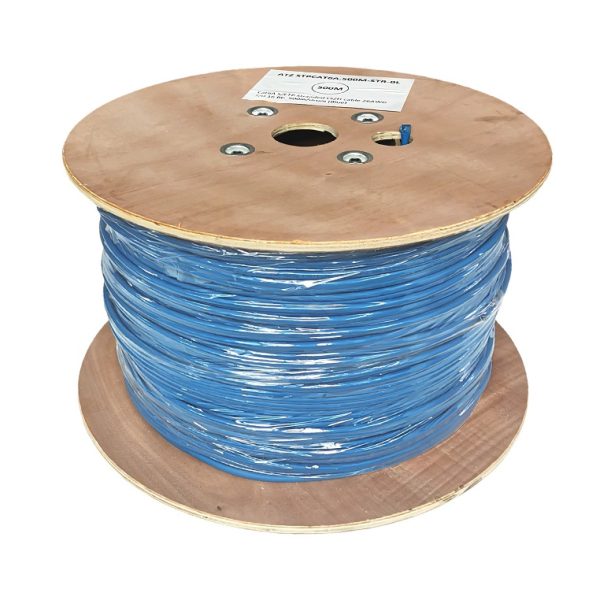

Cat6A S/FTP Stranded LSZH cable 26AWG 7/0.16 BC, 500m/drum (BLUE/GREY)
ATZ STPCAT6A.500M-STR-xx
Cat6A S/FTP Stranded LSZH cable 26AWG 7/0.16 BC, 500m/drum (BLUE/GREY
- Category: Cat 6A
- Structure: S/FTP (PiMF)
- Application: Patch cord raw cable
- Construction: 26AWG 7/0.16mm (+/-0.008mm)
- Material: Bare Stranded Copper
- Material: Foam-PE
- Outside Diameter: 1.04 +/- 0.05mm
- Color : Pair 1: Orange, Orange-White, Pair 2: Blue, Blue-White, Pair 3: Green, Green-White, Pair 4: Brown, Brown-White
- Pin definition: TIA 568B
- Pair Shielding Material: Aluminum foil
- Outer Shield Material: 80*0.12 AL-MG wire braiding
- Jacket Material: LSZH
- Outer diameter: 6.0mm +/- 0.2mm
- Average thickness: 0.6mm
- Color: Grey / Blue
- Marking Color: Black
- Marking Jacket: ATZ Patch Cord Category 6A S/FTP 500MHz 26AWG/4PRS LSZH VERIFIED TO ANSI/TIA/EIA 568.2-D & ISO/IEC 11801 RoHS atz.com.sg
