Description

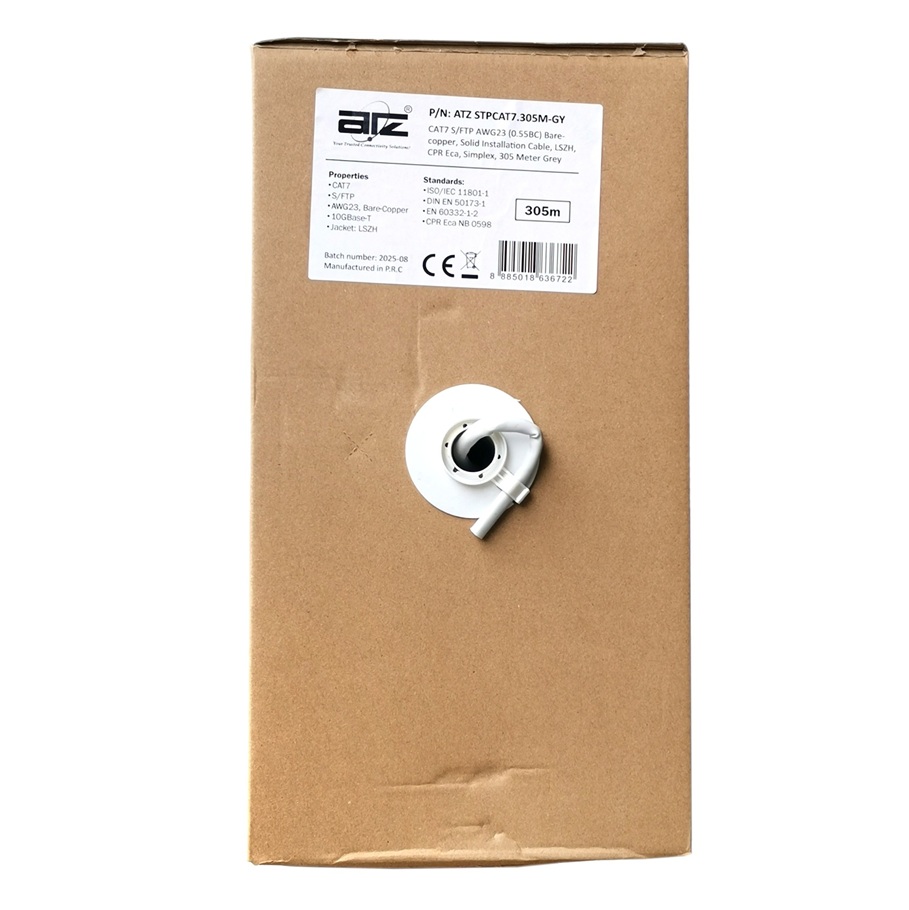

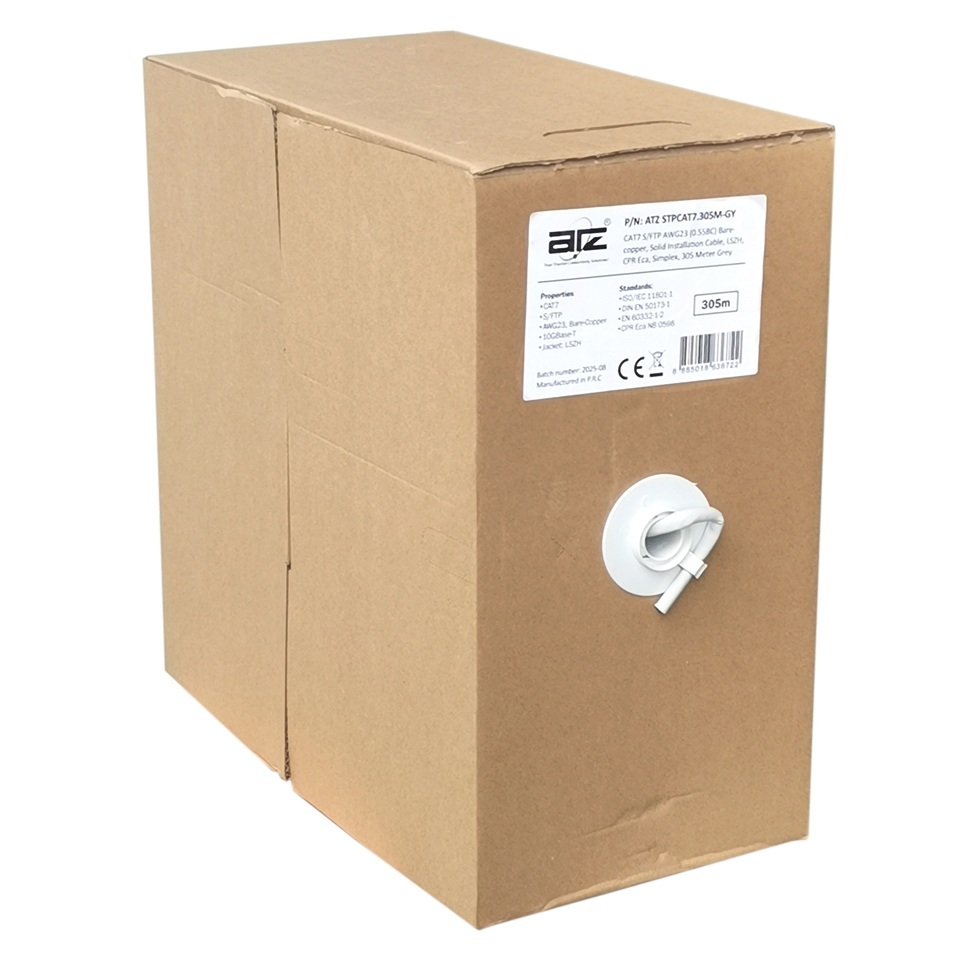

CAT7 S/FTP AWG23 (0.55BC) Bare-copper, Solid Installation Cable, LSZH,CPR Eca (305M) Grey

Category: CAT7
Structure: S/FTP (PiMF)
Application: Primary (Campus), Secondary (Riser), Tertiary (Horizontally)
Construction: 23AWG/1 0.55mm (+/-0.008mm)
Material: Bare Copper (Solid)
Material: Foam-PE
Outside Diameter: 1.3mm +/- 0.05mm
Color : Pair 1: Orange, Orange-White, Pair 2: Blue, Blue-White, Pair 3: Green, Green-White, Pair 4: Brown, Brown-White
Material: Aluminum foil
Material: AL-MG wire braiding greater than or equal to 50% coverage
Material: LSZH
Outer diameter: 7.3mm +/- 0.3mm
Average thickness: 0.6mm (nominal)
Color: Grey
Marking Color: Black
CPR: CPR Eca according to EN 50575 NB 0598
Tensile loading: 150 N (max)
Dynamic: 8 x OD
Static: 4 x OD
Operating: -20 degree celsius up to +50 degree celsius
Installation: 0 degree celsius up to +50 degree celsius
Jacket: ATZ S/FTP CAT7 23AWGX4P PiMF Twist-Pair Installation Cable LSZH ISO/IEC 11801 & EN50173 CPR Eca NB 0598 RoHS atz.com.sg
Impedance: 100 ± 15 Ohm @ 4-100 MHz; 100 ± 25 Ohm @ 100-600 MHz
Capacitance: 45 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
Insulation resistance: 5 Gigaohms x km min.
DC resistance: 95 Ohm/km max. (2% max. resistance unbalance)
DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max
Coupling attenuation: CA-Type 1b
Signal propagation delay: 450 nS/100 m max
Propagation delay: 10 nS/100 m max
Separating class: Class d according to EN 50174-2
NVP: 78%
PoE: IEEE802.3af (PoE) / IEEE802.3at (PoE+) / IEEE802.3bt (4PPoE)

ATZ STPCAT7.305M.GY
