Description

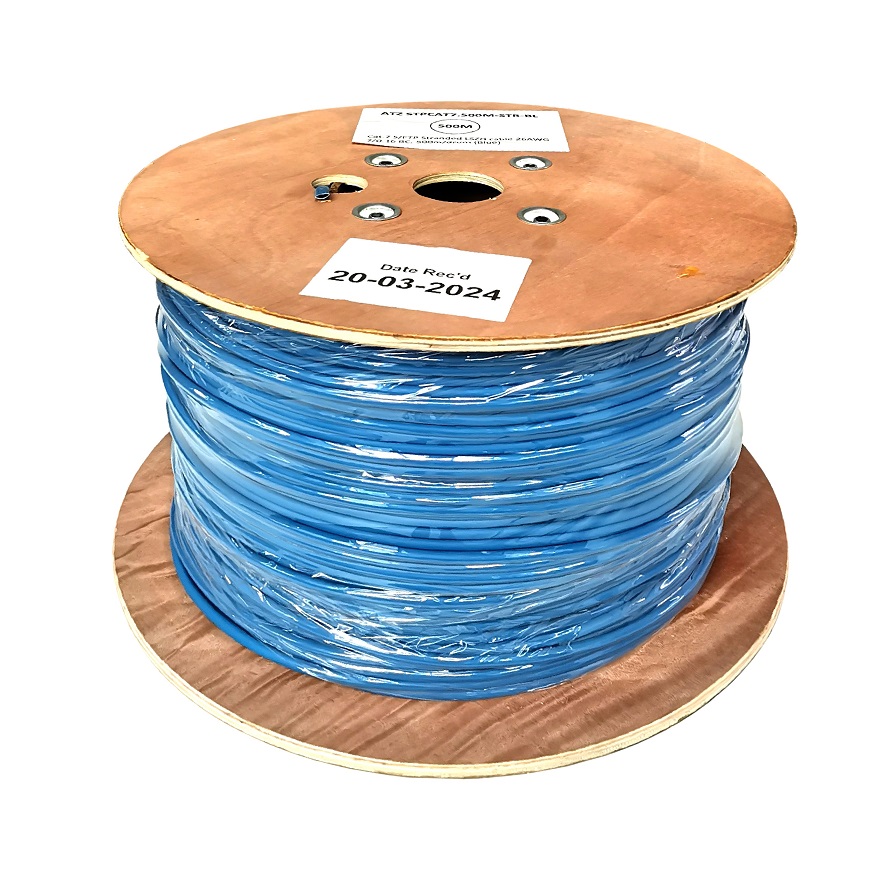

Cat.7 S/FTP Stranded LSZH cable 26AWG 7/0.16 BC, 500m/drum (Black/Blue/Grey)
ATZ STPCAT7.500M-STR-xx
Cat.7 S/FTP Stranded LSZH cable 26AWG 7/0.16 BC, 500m/drum (Black/Blue/Grey)
- Category: CAT7
- Structure: S/FTP (PiMF)
- Application:Patch cord raw cable
- Construction: 26AWG 7/0.16mm (+/-0.008mm)
- Material: Bare Stranded Copper
- Material: Foam-PE
- Outside Diameter: 1.04 +/- 0.05mm
- Color Pair 1: Orange, Orange-White, Pair 2: Blue, Blue-White ,Pair 3: Green, Green-White, Pair 4: Brown, Brown-White
- Pin definition: TIA 568B
- Material: Aluminum foil
- Material: 80*0.12 AL-MG wire braiding
- Material: LSZH
- Outer diameter: 6.0mm +/- 0.2mm
- Average thickness: 0.6mm
- Color: Black / Blue / Grey
- Jacket: ATZ Patch Cord Category 7 S/FTP 500MHz 26AWG/4PRS LSZH VERIFIED TO ANSI/EIA/TIA 568C.2 & ISO/IEC 11801 RoHS atz.com.sg
Application:
- The cable must support class Ea applications and must be compatible POE, POE+ and UPOE.
