Description

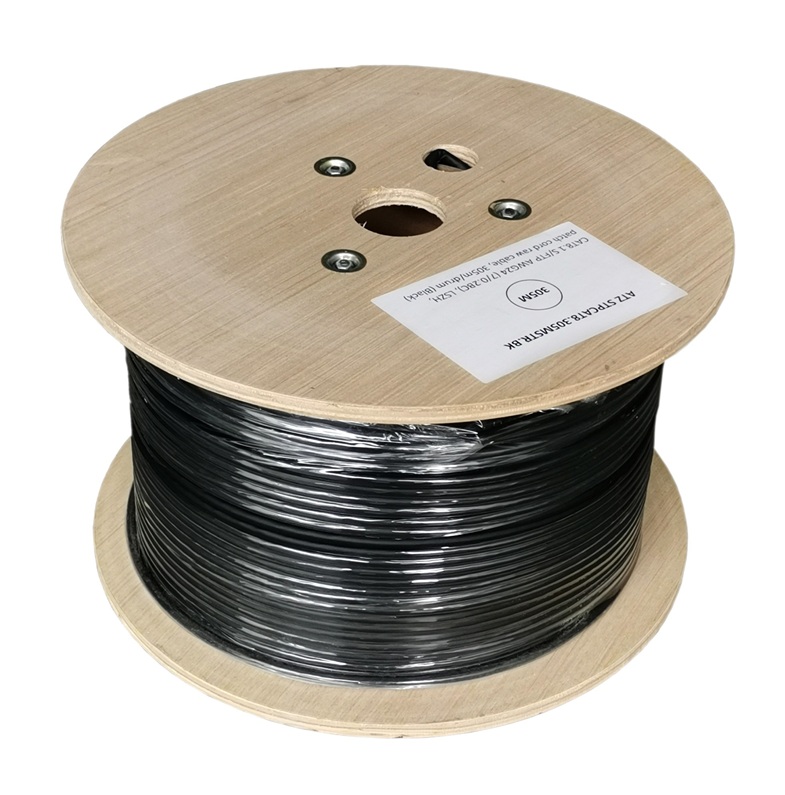

CAT8.1 S/FTP AWG24 (7/0.2BC), LSZH, patch cord raw cable, 305m/drum (Black)
ATZ STPCAT8.305M-STR.BK
CAT8.1 S/FTP AWG24 (7/0.2BC), LSZH, patch cord raw cable, 305m/drum (Black)
- Category: CAT8.1
- Structure: S/FTP (PiMF)
- Application:Patch cord raw cable
- Construction: 24AWG 7/0.2mm (+/-0.008mm)
- Material: Bare Stranded Copper
- Material: Foam-PE
- Outside Diameter: 1.4 +/- 0.05mm
- Color Pair 1: Orange, Orange-White, Pair 2: Blue, Blue-White ,Pair 3: Green, Green-White, Pair 4: Brown, Brown-White
- Pin definition: TIA 568B
- Material: Aluminum foil
- Material: 80*0.12 AL-MG wire braiding
- Material: LSZH
- Outer diameter: 7.5mm +/- 0.2mm
- Average thickness: 0.6mm (min)
- Color: Black
- Marking Color: Grey
- Jacket: ATZ Patch Cord Category 8.1 S/FTP 24AWG/4PRS 40G Base-T 2000MHz LSZH PIMF VERIFIED To ANSI/TIA/EIA 568.2-D & ISO/IEC 11801 RoHS www.atz.com.sg
Application:
- The cable must support class I applications and must be compatible POE, POE+ and UPOE.
