Features:

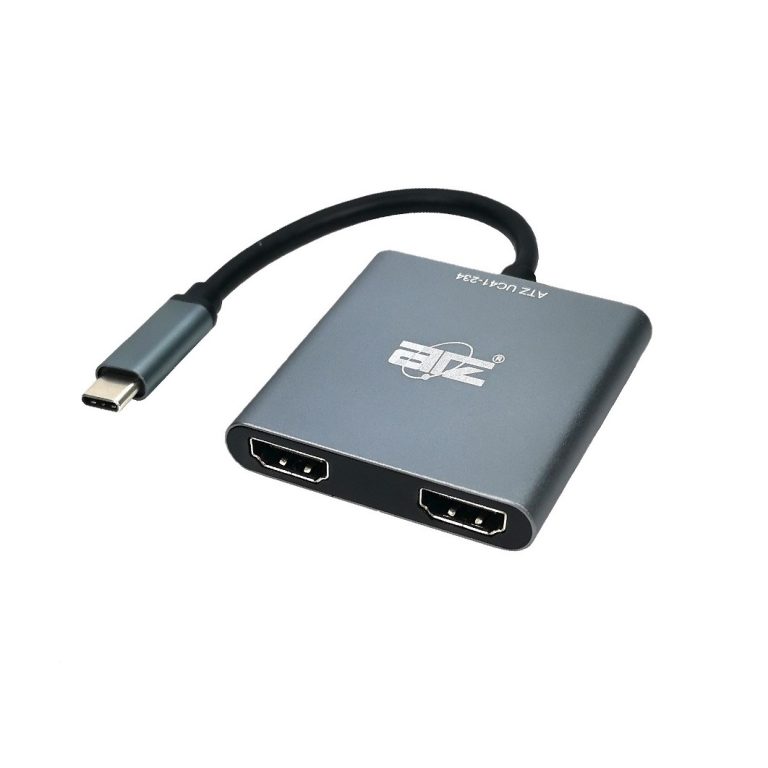

4 in 1 HDMI ADAPTER

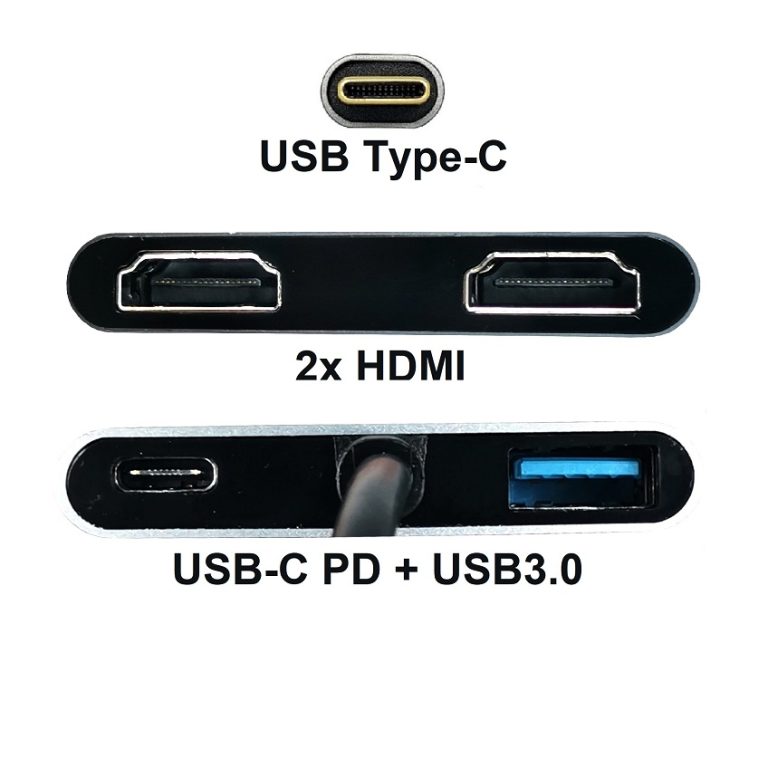

USB C to Dual HDMI Adapter connects the devices with a USB-C interface port to two HDMI ports (4K@60HZ), a USB 3.0 port, a PD Charging port.
Four ports can work at the same time. Designed for devices equipped with Type-C port or Thunderbolt 3 port that support video and audio output Mode.
USB 3.0 AND POWER PORTS
High Speed USB 3.0 Transfer up to 5Gbps, work for USB flash disk, mouse, keyboard and other USB A 2.0/USB A 3.0 devices.
Easy to transfer a HD movies in short time. Meanwhile Type-C charging quickly output up to 60W, avoid running out of power during use.
PLUG AND PLAY
This multiport adapter don’t require any software drivers, or complicated installation process.
Portable and premium aluminium design provides better heat dissipation.
Special internal PCB anti-jamming design, no need to worry interrupt WiFi signal any more.
WIDELY COMPATIBLE
Compatible MAC OS, Windows, Android, Linux system USB C Device. Support 2015-2019 MacBook/MacBook Pro, iPad Pro 2018, Macbook air 2018, Surface Book, Google Chromebook Pixel, Dell XPS 12/13/15, HP Spectre X2/X360, Acer Spin7, Samsung S8/S9, and More USB C Device.
Mac OS support:
1: Mirror mode.
2: Extended mode (due to the limitations of MAC OS itself, in extended mode, the images on the two external screens will be the same).
Android support:
1: Mirror mode
Windows support:
1: Mirror mode
2: Extended mode (the images on the two external screens can be the same or different).
Frequently asked questions:
How to switch the Mac device to extended mode?
“Settings” → “Display” → Click the “Mirror display” box to switch to extended mode → Then, you can drag the website/movie window to the far right of the desktop screen until it disappears on the desktop screen and appears on the External monitor screen.
How to connect to the extended mode of Windows?
Right-click on the desktop → select display settings → pop up the settings screen to select display → select multi-screen display → expand the desktop (if display 3 is not displayed, please manually select the display → click apply to confirm the setting can be confirmed).
What if one of the displays does not display?
Right-click on the desktop> Graphics Settings> Select one or more active displays.
- Maximum 4K @ 60Hz output-when only one port is used, the maximum resolution is 3840×2160 @ 60Hz. To ensure 4K/60Hz performance, please make sure to use HDMI 2.0/DP 1.2 cable (or better), it also depends on the definition of the monitor. Support HDCP 2.2. Supports mirroring and extension modes of Mac OS, Win OS and Chrome OS
- Video and audio-transmit high-quality video and audio for presentations, meetings, workshops, training or games. You must confirm that your host device supports video output or DP Alt Mode. You may need to change the “Default Audio Output Device” setting in System Preferences to transmit sound
- Humanized design-non-slip connector, easy to plug and unplug. The precise USB-C plug can be tightly inserted into your device for better signal transmission. Integrated aluminium alloy shell with better heat dissipation effect
- Wide compatibility-2019/2018/2017/2016 new MacBook Pro 13/15/16, new MacBook Air, MacBook 12, new iPad Pro 11/12.9, new iMac/Pro, Dell XPS, Surface Book 2/Go, Samsung Galaxy S8 / S9 / S10 / Plus / Note 8/9/10, Pixelbook, Chromebook, Intel NUC, HP, Acer, Lenovo and other products with USB-C DP ALT mode.
- Dual 4K displays-enables full-featured Windows OS devices to display two split screens through an HDMI and an extended DisplayPort display (TV, projector, etc.), with a resolution of up to 3840x2160p @ 30Hz. (Important note: On Mac devices, due to the limitations of Mac OS, two monitors can only display the same screen (mirror screen)
