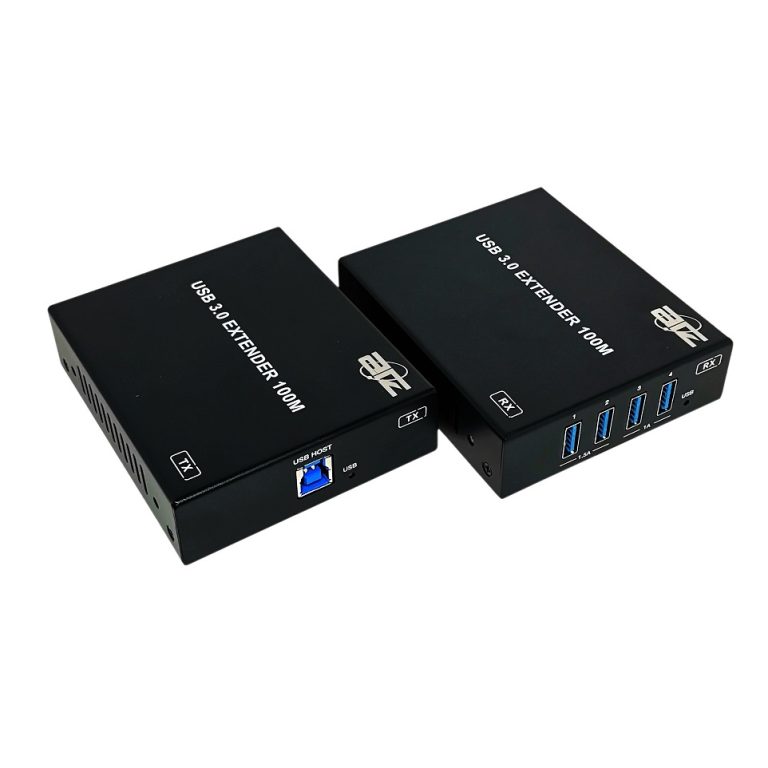

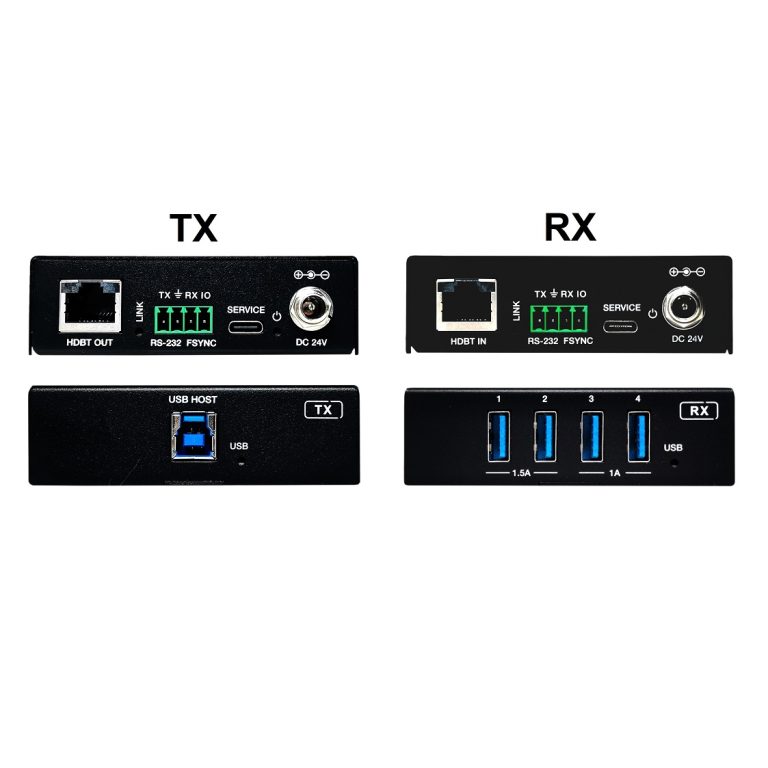

The USB 3.0 Extender can extend USB signal to a distance up to 100m/328ft via a single CAT6a cable. Transmitter features with one USB 3.0 Type B input, one FSYSNC GPIO input and one RS-232 pass-through. Receiver features with four USB 3.0 Type A outputs, one FSYSNC GPIO output and one RS-232 pass-through. Bi-directional 24V PoC is also supported.
The product can be widely used for long distance signal transmission between a PC and USB devices.
Features:
- Extension of USB 3.2 up to 100m(CAT6a)/ 40-50m (CAT6). Use of Cat.6 (UTP) will result in shorter transmission distance, depending on quality of the cable
- USB 3.2 Gen1 connectivity with data transfer rate up to 5Gbps
- Backwards compatible with USB 2.0 and 1.1 (USB 3.2 Gen 1 is also known as USB 3.0 (5Gbps).
- Hardware acceleration for isochronous and bulk transfer
- This Extender is built with durable extruded aluminum construction for high wear & tear environments with mounting brackets included; provides 8kV/15kV Contact/Air Electrostatic Discharge (ESD) extended protection
- USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver
- Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
- Support bi-directional 24V PoC
- Simple plug and play, no driver and setting installation required
