This ATZ UH304C-IND – provide 4-ports of additional 2x USB Type-A + 2x USB Type-C port to a USB C computer.
These industrial graded hub supports simultaneous operation of any combination of SuperSpeed Plus (SS+), SuperSpeed (SS), High-Speed (HS), Full-Speed (FS), and Low-Speed (LS) devices. It is backward compatible with USB1.1, 2.0, USB 3.2 Gen 1 legacy devices.
It provide reliable performance in demanding operating environments at USB 3.1 Gen 2 speeds up to 10Gbps.

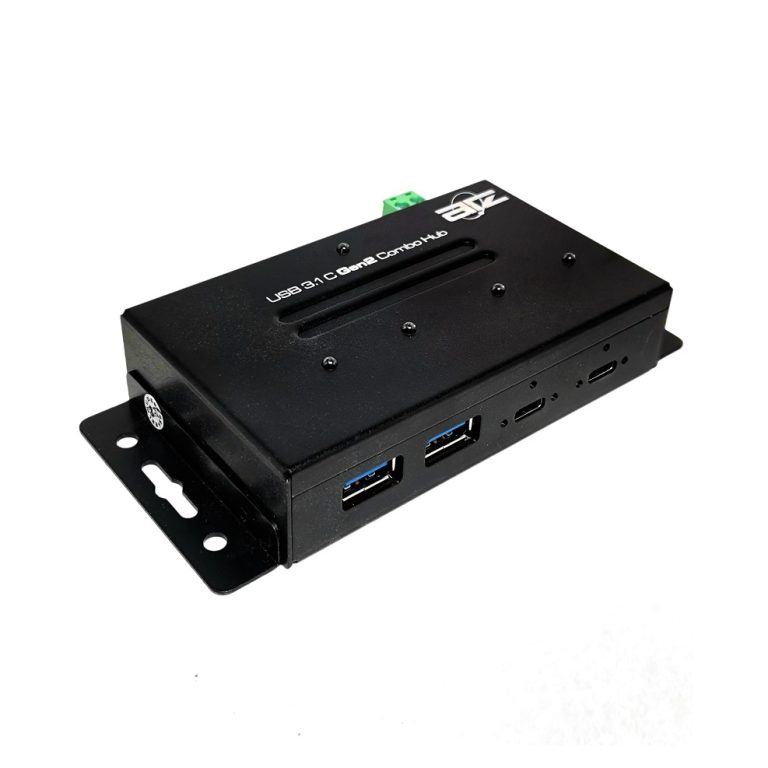

It features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. This hub’s USB-C ports, including the host port, support USB cables with locking connectors that can prevent devices and peripherals from accidentally coming loose, which are compliant with USB-IF Type-C locking specification.
Allow connection of industrial printers, sensor and other USB device / peripherals in a harsh environment.
Features:
- Connect up to 4 USB devices or peripherals
- Supports data transfer rates up to 10 Gbps
- Support USB Type C reversible plugging / locking connector
- Compliant with USB 3.1 Gen 2 specifications and USB Type C Specification
- Supports simultaneous USB 3.2 SuperSpeed+, USB 3.0 SuperSpeed, USB 2.0 High Speed, USB 1.1 Full Speed and USB 1.0 Low Speed devices
- Built in port status Indicator LED for each port
- Support over-current protection ±2.5kV-per-port overcurrent protection to safeguard your connected devices against damage and data loss from power surges.
- Support ESD surge protection ±15KV helps prevent potential static damage to connected devices.

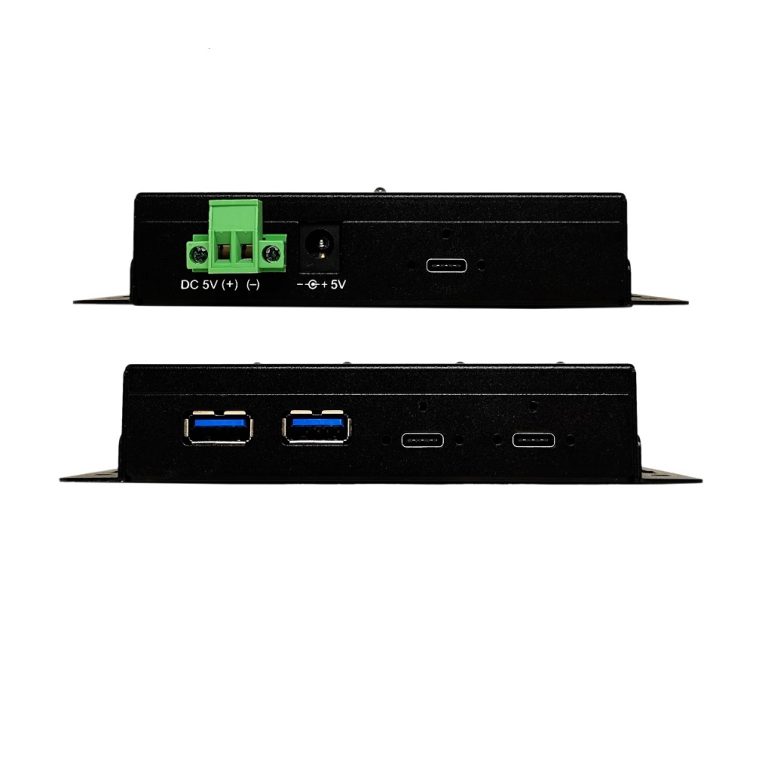

- Two self-powered sources choice (1) DC DIM of 2-wire terminal block with screw to draw power from a power terminal input, OR (2) External power adapter.
- Mount to wall or Din rail in harsh environment
- Supports USB Battery Charging BC1.2 Specification at 1.5A
( provide additional power of up to 2A for fast-charging an iPad®,smart phones, tablet or similar products ) - Type C receptacle with Locking Screw and 0.6m Type C to Type C cable included
