Features:

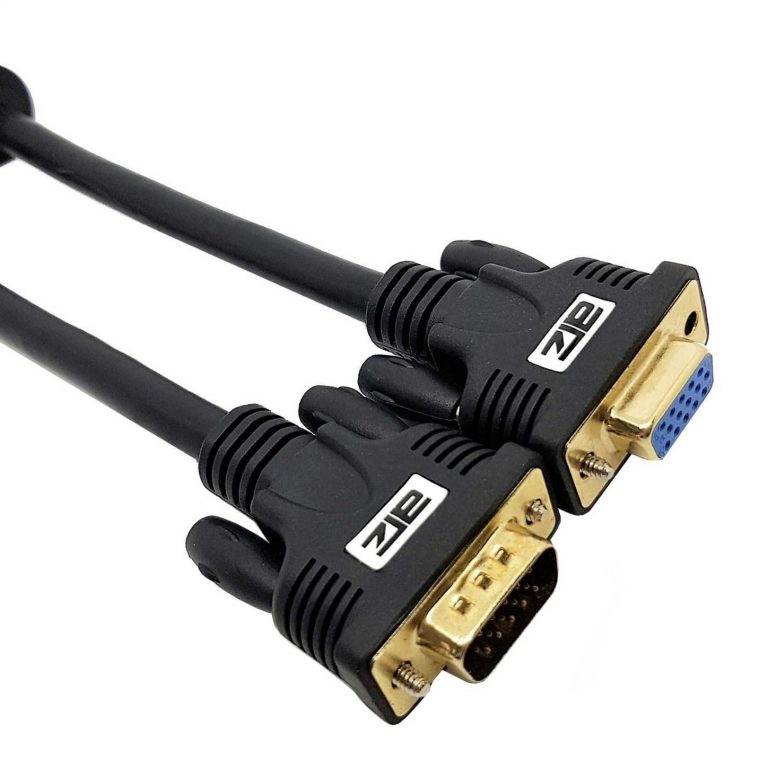

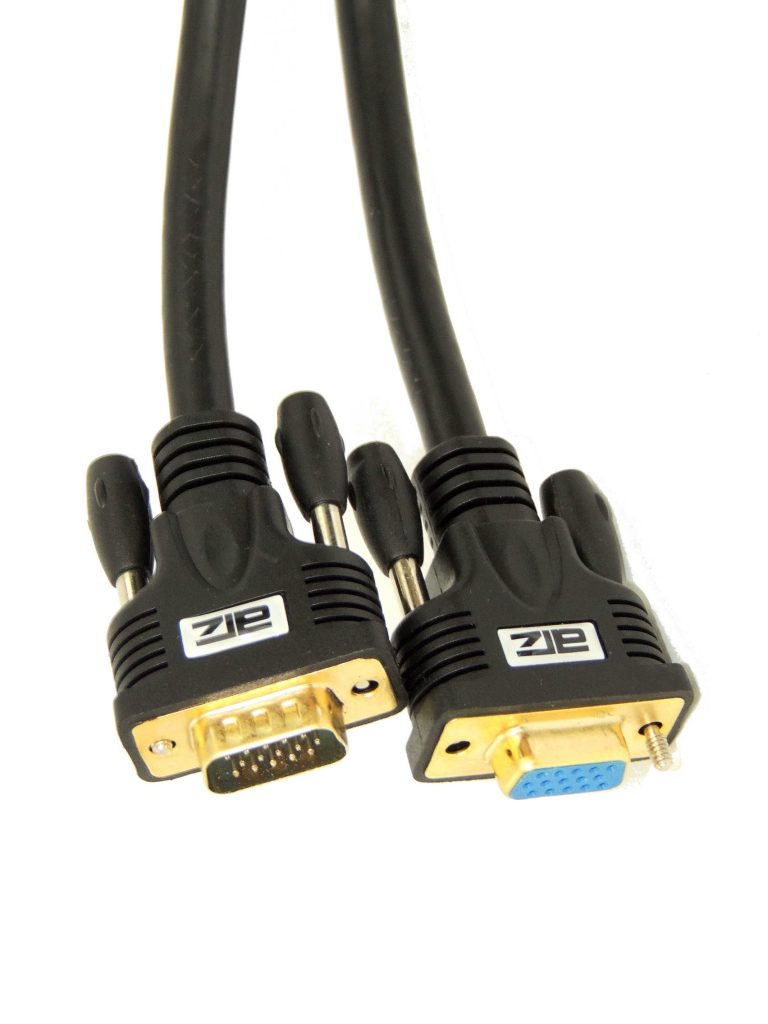

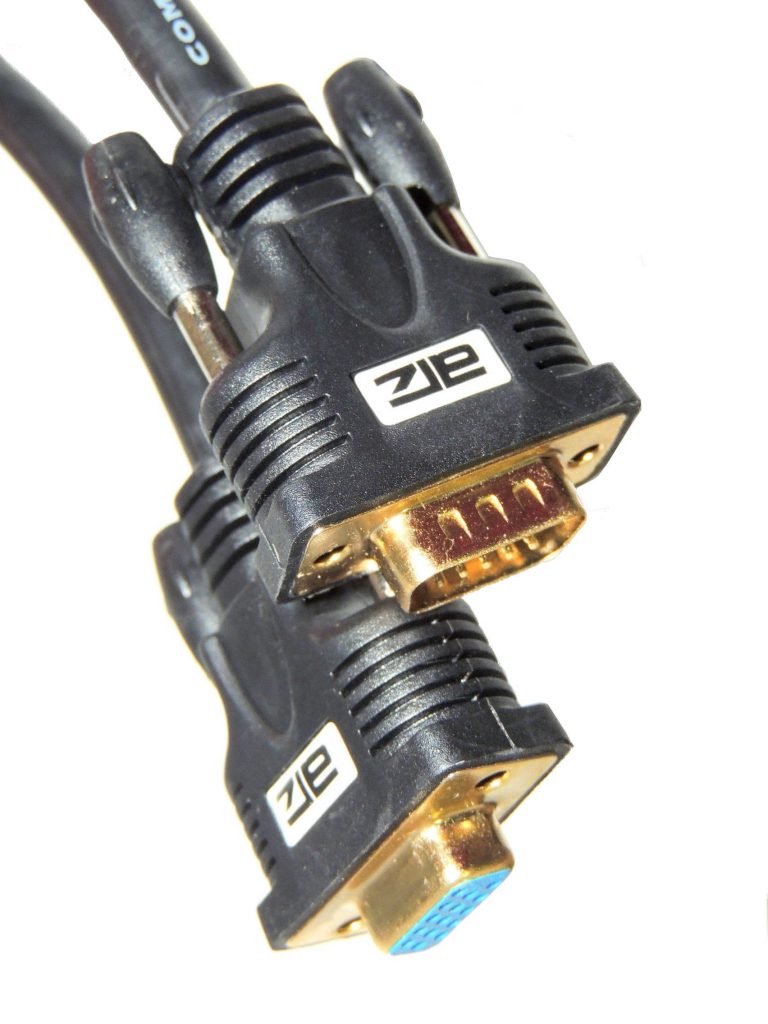

- Premium grade heavy duty VGA Cable with a High Density 15 way D connector (HD15) on both ends.
- Supports high resolution up to 2048 x 1536
- Superior cables with foil and braid shielding for maximum EMI/RFI protection
- Gold plated connectors and gold plated copper contacts ensure excellent conductivity
- Connectors: HD15 male to HD15 female molded connector
- Hood: PVC
- Ferrite cores fitted both ends to act as large inductance at high frequencies, so the core will suppress current spikes in the cables. Think of it as a “shock absorber” for very short spikes.
- Insulation: High Temperature Plastic, UL94V-0 rated
- Shell: Steel Alloy
- Contacts: Copper Alloy, gold plated over nickel
- Cable: UL Style 2919, three 75 Ohm Coaxial Cables and 4 or 5 or 7 Cores of 28AWG Conductors, overall aluminized Polyester Film Shield and Tinned Copper Braid Shield Plus Drain Wire, PVC Outer Jacket.
- Core: 17.5 x 28.5 x 9.5 (2M-10M) | 17.5 x 28.5 x 10.5 (15M-30M)
- Length: 2M/3M/5M/10M/15M/20M/30M
