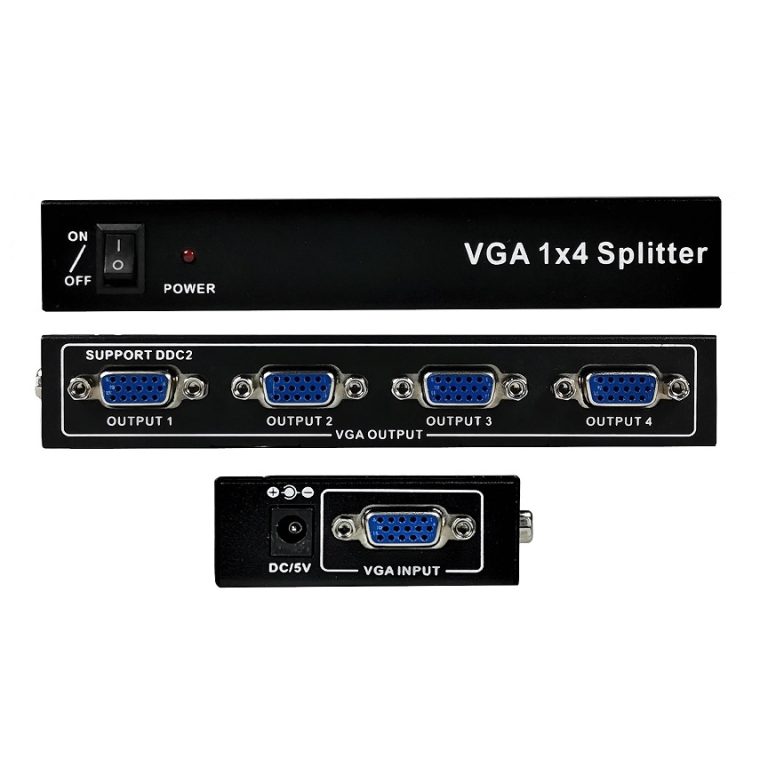

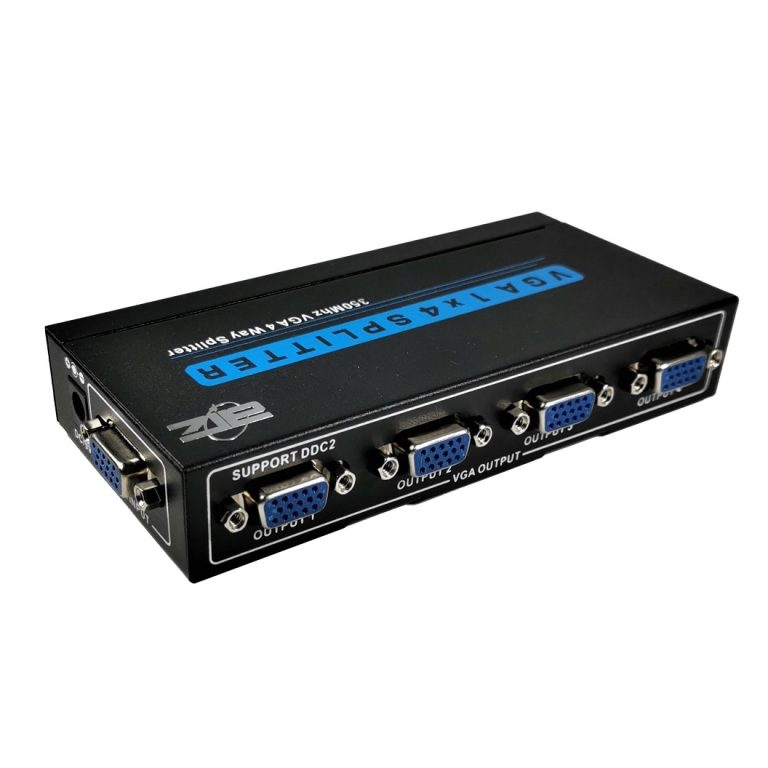

ATZ VS134 is a 1-in-4-out VGA splitter, which sends VGA signal to up to 4 VGA displays at the same time. It is compatible with VGA, XGA, SVGA, UXGA, WUXGA and multisync monitors and enables up to 64 monitors to share the information of a host computer simultaneously by daisy chaining. It is also a boosting device that extends the video signal transmission distance up to 65m, making it an excellent choice for education, security system, public system or video broadcast systems.
Features:
- VGA Splitter Input Ports: 1 x VGA HD15F connector Input Port
- VGA Splitter Output Ports: 4 x VGA HD15F connector Ports
- Fully supports resolution of: 1600×1280 1920×1440 20 2048×1536
- RGB Bandwidth: 0.5-1Vp-p
- Can be daisy chained.
- Support ultra-high 150MHz-500MHz video bandwidth(-3dB).
- Transfers Distance: Up to 65 meters.
- Power : DC-5V, 9V 300mA ~ 1000mA
- Input Electrical Level: 0.5-1Vp-p
- Input Resistance: 75ohm
- Output Electrical Level: 0.5Vp-p
