SKU: ATZ VS4D Category:

ATZ VS4D

$139.00

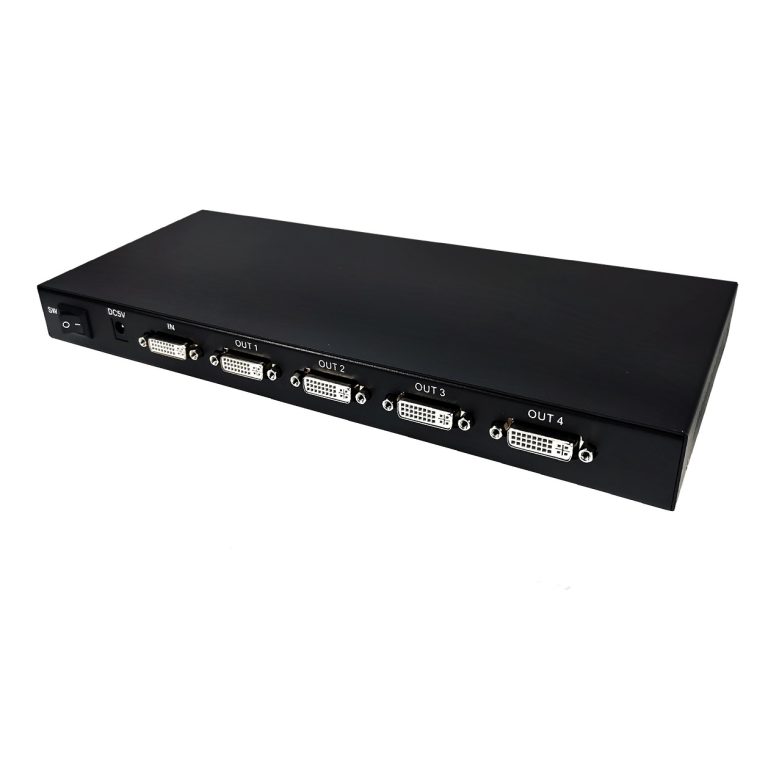

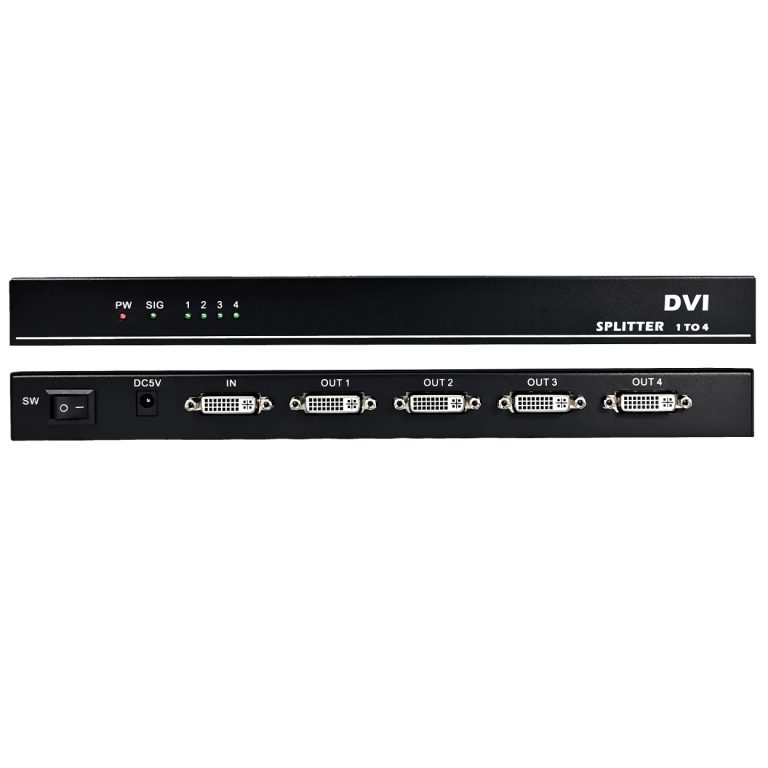

4 Port DVI Video Splitter, W/POWER


Share it:

This DVI splitter allows multiple video display units to connect to one DVI Source to display the same HD picture at the same time.
It offers a good solutions for noise, space and security concerns, data-center control, information distribution, conference room presentation, school and corporate training environments.

Features:

  • 1x DVI input and 4xDVI output
  • Support resolution: up to 4096×2160@30Hz
  • Support for long distance signal transmission
  • Lossless transmission, Easy to install.
  • Supports wide range voltage DC input (DC5V)
Weight 0.75 kg
Dimensions 20 x 20 x 10 cm
DVI interface type Dual link DVI-D
Single link input/output resolution up to 1920×1080@60Hz
Dual link input/output resolution up to 3840×2160@30Hz
Support video color format 24bit/deep color 30bit,36bit
Max signal bandwidth 340MHz
Max baud rate 3.4Gbps Serial Link
Input/Output TMDS signal 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal 5Volts p-p (TTL)
DVI input cable distance ≤10m AWM 20276 DVI standard cable
DVI output cable distance ≤10m AWM 20276 DVI standard cable
Max working current 1.2A/5V
Power adapter AC 100V240V 50HZ/60Hz, DC5V/2A
Operating Temperature range -5 to +45℃
Storage Temperature range -15 to +55℃
Operating Humidity range 10 to 90%RH (No Condensation)
Storage Humidity range 5 to 95%RH (No Condensation)
Case Dimension (L x W x H) 277x136x27mm
Weight 800g
