ATZ XLR-FF-xxM

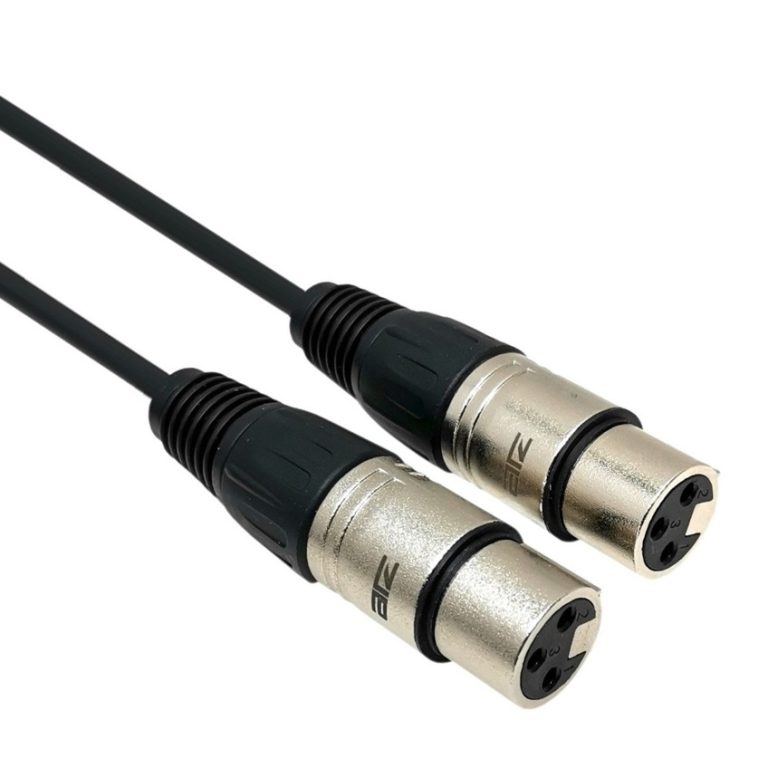

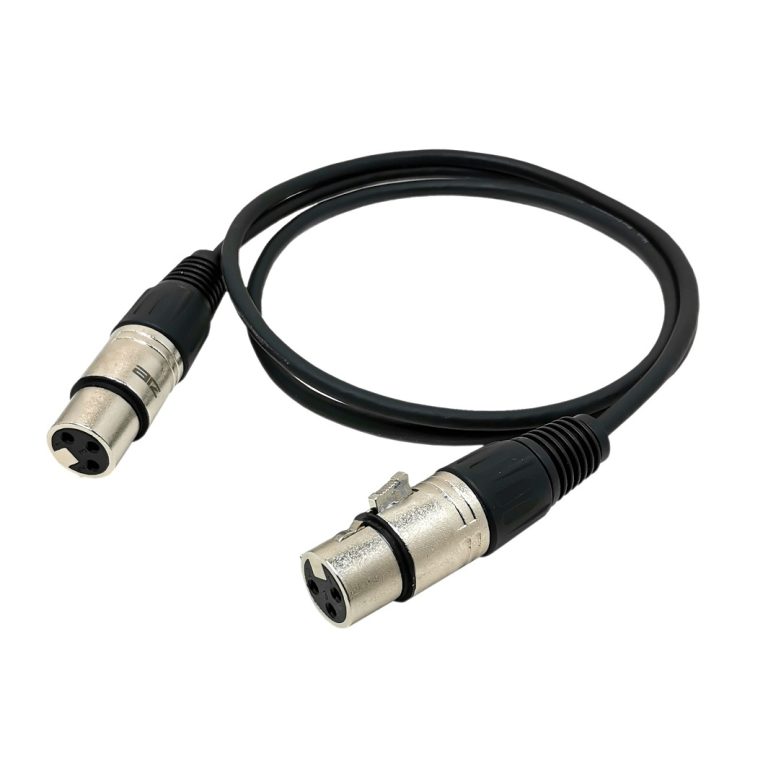

XLR 3-pin Female to Female Microphone cable (1m/2m/3m/5m/10m/15m/20m/25m/30m/40m/50m)


Share it:

== Customised lengths are available ==

Please call or email us for price.
Reseller enquiries are welcomed!

Tel: 6659 8980
Email: sales@atz.com.sg

These stereo ATZ balance XLR cable assemblies are ideal for use in professional audio, video and stage lighting equipment. They are used to carry and deliver a high quality audio signal to the microphone or other output music gear, so that the final audio sound will have less unwanted noise from outside electrical interference.

For audio professionals and enthusiasts seeking reliable, high-quality sound transmission as it build to deliver superior audio performance, with a focus on durability and reliability.

These XLR Female to XLR Female cable assemblies have 3 pins as standard and a circular socket. Pin 1 is connected to the shielding of the cable to provide a ground, whereas pins 2 and 3 carry the actual sound itself.

This XLR cable has a XLR female connector one end and a XLR female connector on the other end.

Features:

  • Connect balance line outputs to balance line inputs for optimum audio performance
  • Shield surrounding centre conductors for maximum EMI / RFI noise rejection making the sound quality undisturbed by external signals.
  • Professional Nickel-Plated Pins, anti-corrosion and oxidation resistance. With multiple plug-and-pull tests, this mic cable is perfect for your daily prolong usage
  • All-copper conductors with inner copper spiral shielding to reduce noise interference providing clear transmission
  • Multi-stranded copper center conductor and a duable cable jacket is ultra flexide to maximize mobility
  • This Balanced Mic cable designed for equipments with 3-pin XLR connectors such as SM Microphone, MXL Microphones, Behringer, shotgun microphones, studio harmonizers, mixing boards, patch bays, preamps, speaker systems
  • Ideal for microphone cable extension, Mic Mixer, Recording Studio, Podcast, Speaker System
Cable Type XLR Cable
Num of Conductor 2 C
Wire Gauge 22 AWG
Connector Type 1 3-pin XLR
Connector Type 2 3-pin XLR
Connector Plating Nickel Plated Brass Connector
Connetor Gender Female to Female
Conductor Material Tinned Copper (TC)
Conductor Construction 17 / 0.16 ± 0.008 mm
Conductor Material Tinsel Wire
Conductor Construction 2 / 0.24 ± 0.008 mm
Conductor Stranded Diameter 0.98mm
Insulation Twisted Pair 60 + / – 2mm
Insulation Material HDPE
Insulation Thickness 0.22mm
Insulation Diameter 1.4 ± 0.008 mm
Filler Material Cotton Thread
Drain Material Tinned Copper (TC)
Drain Construction 17 / 0.16 ± 0.008 mm
Tape Material Aluminum Mylar Tape
Tape Over Lap 25% Min
Spirally Material Tinned Copper (TC)
Spirally Construction 60 / 0.10 ± 0.008 mm
Jacket PVC
Jacket Thickness 0.6 mm
Jacket OD 4.3 ± 0.1 mm
Colour Black
