Description

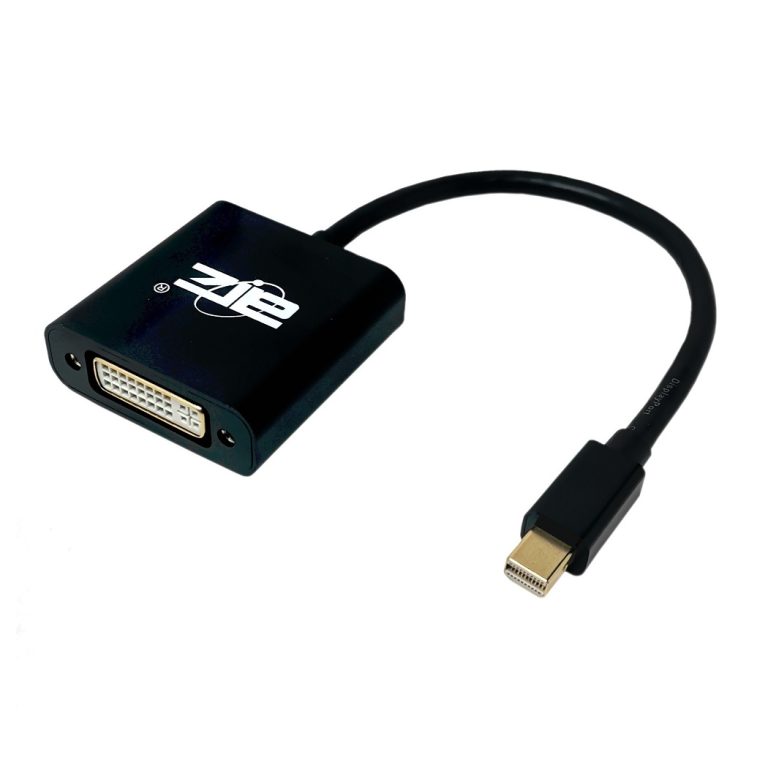

This Mini DisplayPort to DVI adapter supports Thunderbolt 2 port compatible computer to a monitor or projector with DVI port. It supports video resolutions; 720p, 1600×1200, 1280×1024, 1920×1080@60Hz, 4k@30Hz for high definition monitors or projectors.
Features:
- Supports DisplayPort 1, 2, and 4 lanes
- Support Mini DisplayPort 1.1a input and DVI 1.0/ HDMI1.4b output.\
- Compliant with DisplayPort 1.2
- Powered by Mini DisplayPort source.
- Support 3D 1080P@60Hz and 4K@30Hz 24 bit color
- Content protection of HDCP 1.3 for DisplayPort and DVI
- Integrated both HDCP Rx and Tx keys to support HDCP repeater
- Video output formats: RGB up to 12 bpc, YCbCr4:4:4 -4:2:2 up to 12 bpc
- 2V Core Power Supply & 3.3V I/O Power Supply
- Supports max. 10.8Gbps data transfer rate (all channel)
- Audio is not supported over DVI
- Support DVI 12 bit per channel (36 bit all channel) deep color.
Note: this adapter is NOT Bi-directional
Additional information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 20 x 20 x 10 cm |

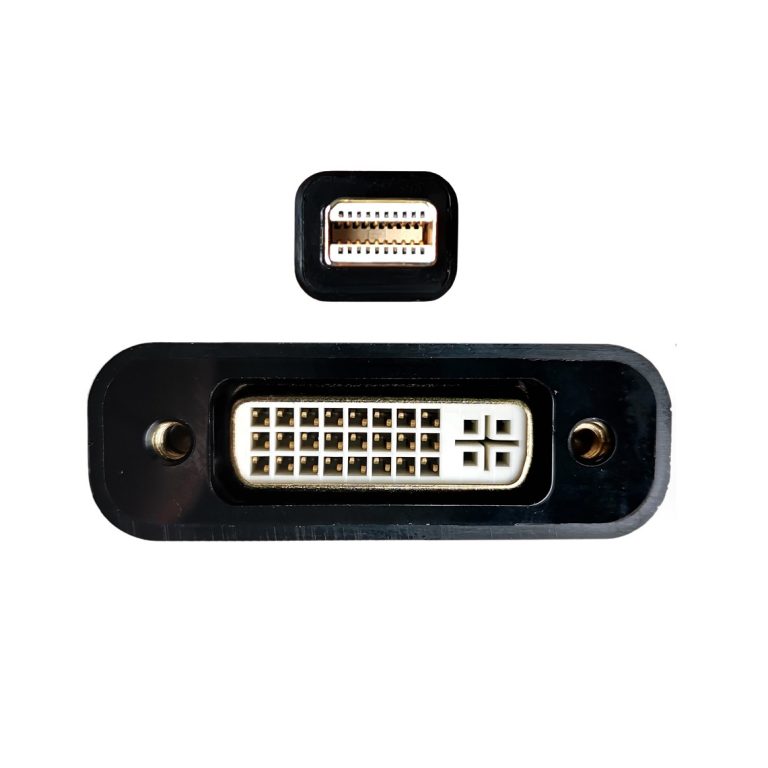

| Connector A | 1x mini-DP male [20 pins] – Gold plated |
| Connector B | 1x DVI-I female [24+5 pins] |
| Storage Temperature (℃) | -10～70 |
| Operating Temperature (℃) | 0～45 |
| Humidity (% RH) | 10～85 |
| ESD | HBM 8kV |
| Cable Type | UL20276 #32*5P+#32*5C+AEB |
| Cable OD | 5.0mm |
| Cable Length (cm) | 15 |
| Mass (g) | 40 |
| Shell Color | Black Matt |
| Shell Material | ABS (45x45mm) |
| Certification | RoHS |
