ATZ VS2D

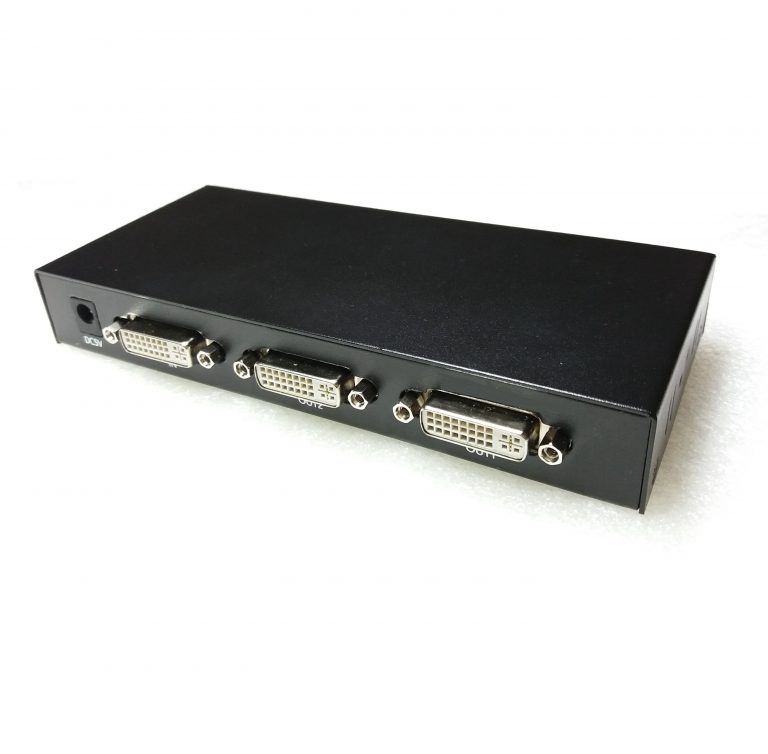

2 Port DVI Video Splitter, W/POWER
Features:
- 1x DVI Input and 2x DVI Output.
- Support dual Link DVI-D signal transmission, resolution up to 3840X2160@30Hz
- Support resolution 640X480@60Hz to 3840X2160@30Hz, compatible with the HDMI 1080P standard
- Support for long distance signal transmission
- Installs in minutes, no loss of quality
- Supports wide range voltage DC input (DC5V)
| Weight |
0.55 kg |
| Dimensions |
20 x 20 x 10 cm |
- DVI Interface Type: Dual link DVI-D
- Single Link Input/Output Resolution: up to 1920×1080@60Hz
- Dual Link Input/Output Resolution: up to 3840×2160@30Hz
- Support Video Color Format: 24bit/deep color 30bit, 36bit
- Max Signal Bandwidth: 340MHz
- Max Baud Rate: 3.4Gbps Serial Link
- Input/ Output TMDS Signal: 0.5~1.5Volts p-p(TTL)
- Input/ Output DDC Signal: 5Volts p-p (TTL)
- DVI Input Cable Distance: less than or equal to 10m AWM 20276 DVI standard cable
- DVI Output Cable Distance: less than or equal to 10m AWM 20276 DVI standard cable
- Max Working Current: 0.8A/5V
- Power Adapter: AC 100V – 240V 50HZ/60Hz, DC5V/2A
- Operating Temperature Range: -5 to +45 Celsius
- Storage Temperature Range: -15 to +55 Celsius
- Operating Humidity Range: 10 to 90% RH (No Condensation)
- Storage Humidity Range: 5 to 95% RH (No Condensation)
