FO.SMSP.SC.9.xxM

$9.00$55.00

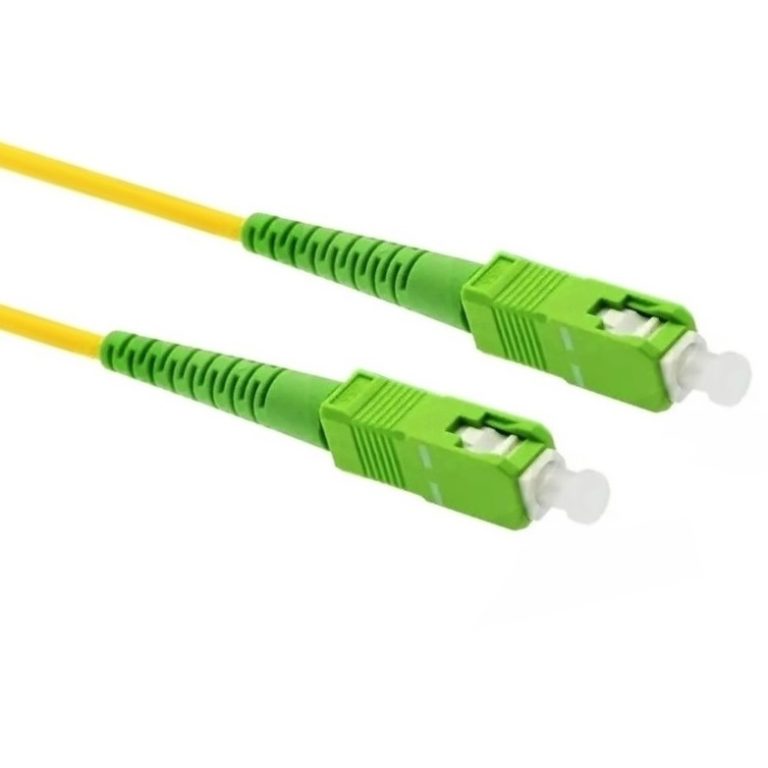

SC/APC – SC/APC Singlemode Simplex Fiber patch cord, 9/125 (1M/2M/3M/5M/10M/15M/20M/30M/40M/50M)

Clear

Share it:

Features:

The SC connectors on this simplex fiber optic patchcord have a APC “Angled Physical Contact” polish on the fiber optic connector endfaces. An APC connector has an 8º angle cut into the ferrule. These connectors are identifiable by their green color. APC fiber ends have low back reflection even when disconnected. This polish results in a highly radius domed endface surface that optimizes physical contact between the mated fiber cores. This singlemode fiber optic patchcord is ideal for a wide range of applications where back reflection must be kept to a minimum. Typical loss is less than 0.3dB and back reflection is -55dB and higher.  This fiber optic patchcord is guaranteed to meet or exceed industry standards

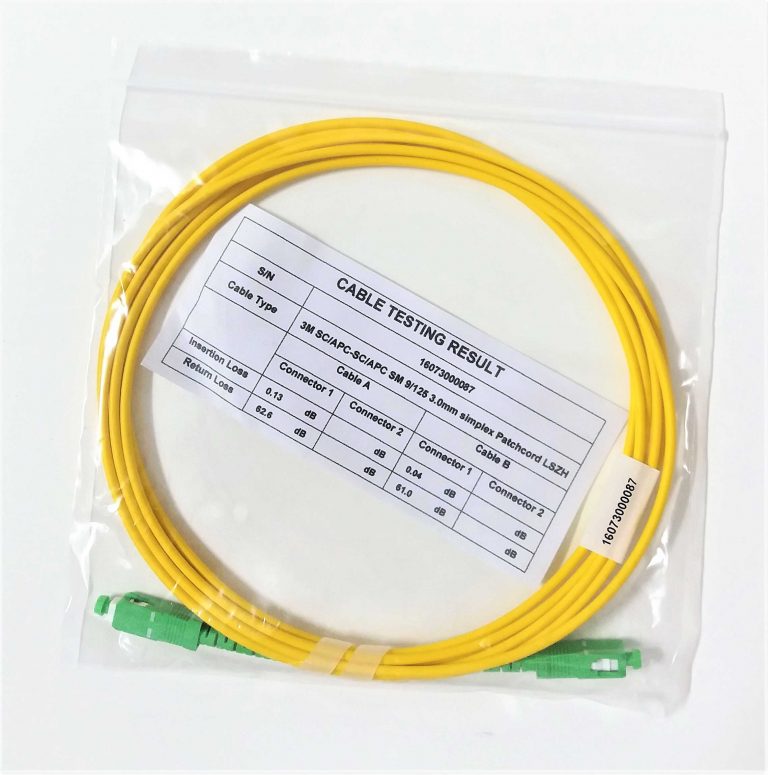

*Cables Testing results are provided for every cable

Weight N/A
Dimensions N/A
  • Cable Type: SP (Simplex)
  • Connector Type: SC (APC)
  • Fiber Mode: SM (single mode) G652D, G655, G657, 9/125µm
  • Superior qualified standard polishing
  • Cord length: 1 Meter
  • 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC)
  • 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC)
  • Meets ISO9001, ROHS and Bell core GR 326-core standards;
  • High Temperature: ( +85 sustain 100 hours) ≤ 0.2dB
  • Low Temperature: (-40 sustain 100 hours) ≤ 0.2dB
  • Temperature Circularly: (-40+85 sustain 100 hours) ≤ 0.2dB
  • Humidity: (+25+65 93 R. H. 100 hours) ≤ 0.2dB
  • Low Smoke Zero-Halogen

*Cable testing result is provided for every cable
