Description

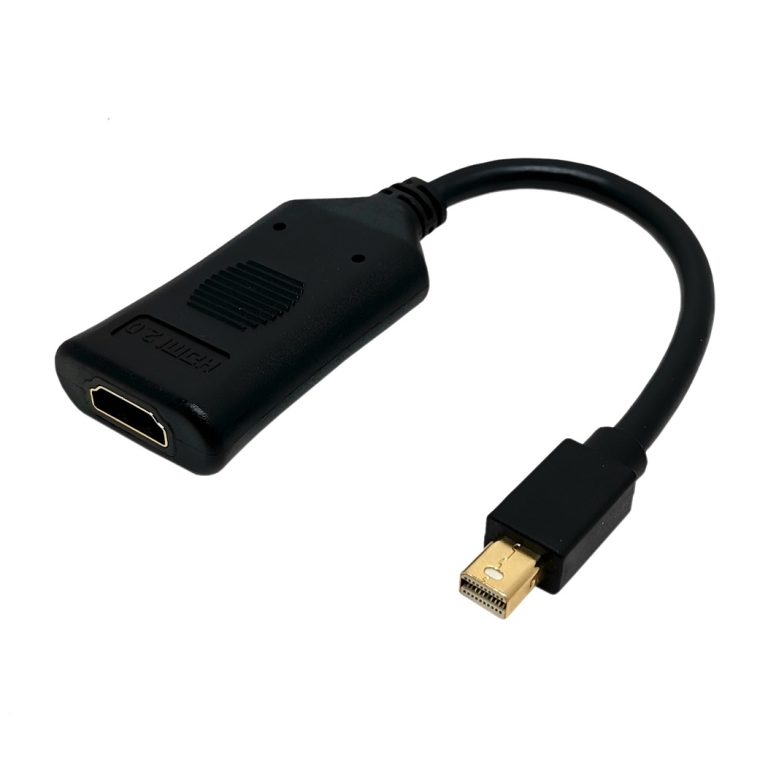

This is a Mini DisplayPort 1.2a to HDMI (4kx2k@60HZ) Adapter. It allows you to transmit signals from a Mini DisplayPort/ Thunderbolt 2 source (Macbook Pro Macbook Air etc) to an Ultra-High Definition HDMI display (TV sets, projectors, etc). With this product, you can watch videos or slideshows together on the big screen.
Active circuitry allows PCs with or without Dual-Mode DisplayPort (DP++) to connect to displays with HDMI inputs.
Note: This adapter is NOT bi-directional. It can only transfer signal from DisplayPort source to HDMI monitors/ displays/ projectors.
Features:
Active solution and supports AMD Eyefinity to extend to multiple screens for a better gaming experience
- Compliant with DP1.2a specification, and downward compatible with lower versions.
- Compliant with HDMI 2.0 and HDCP.
- EDID pass-through from PC source to display.
- Supports 3D format and compliant with lower versions.
- Supports Resolution up to 1080p@120Hz & 4K@60Hz (3840×2160 & 4096×2160).
- Supports 18Gbps HDMI bandwidth.
- Supports Audio: 1 Surround, 8-channel LPCM, HBR audio formats up to 192kHz frame rate.
- Supports power automatic management .
- Supports ATI Eyefinity™ multi-screen display function.
Additional information
| Weight | 0.15 kg |
|---|---|
| Dimensions | 20 x 20 x 10 cm |
| Connector A | 1x Mini Displayport male [20 pins] Gold plated w/copper foil |
| Connector B | 1x HDMI Type-A Female (copper foil) |
| Storage Temperature (℃) | -10～70 |
| Operating Temperature (℃) | 0～45 |
| Humidity (% RH) | 10～85 |
| ESD | HBM 8kV |
| Body Material | PVC 45P |
| Body Colour | Black |
| Overall Length (cm) | 20 |
| Weight (g) | 40 |
| Cable Type | UL20276 #32*5P+#32*4C+#28*1C+AB braided black PVC |
| Cable OD | 5.5mm |
| Cable Shielding | Triple Shielded |
| Certification | RoHS |
