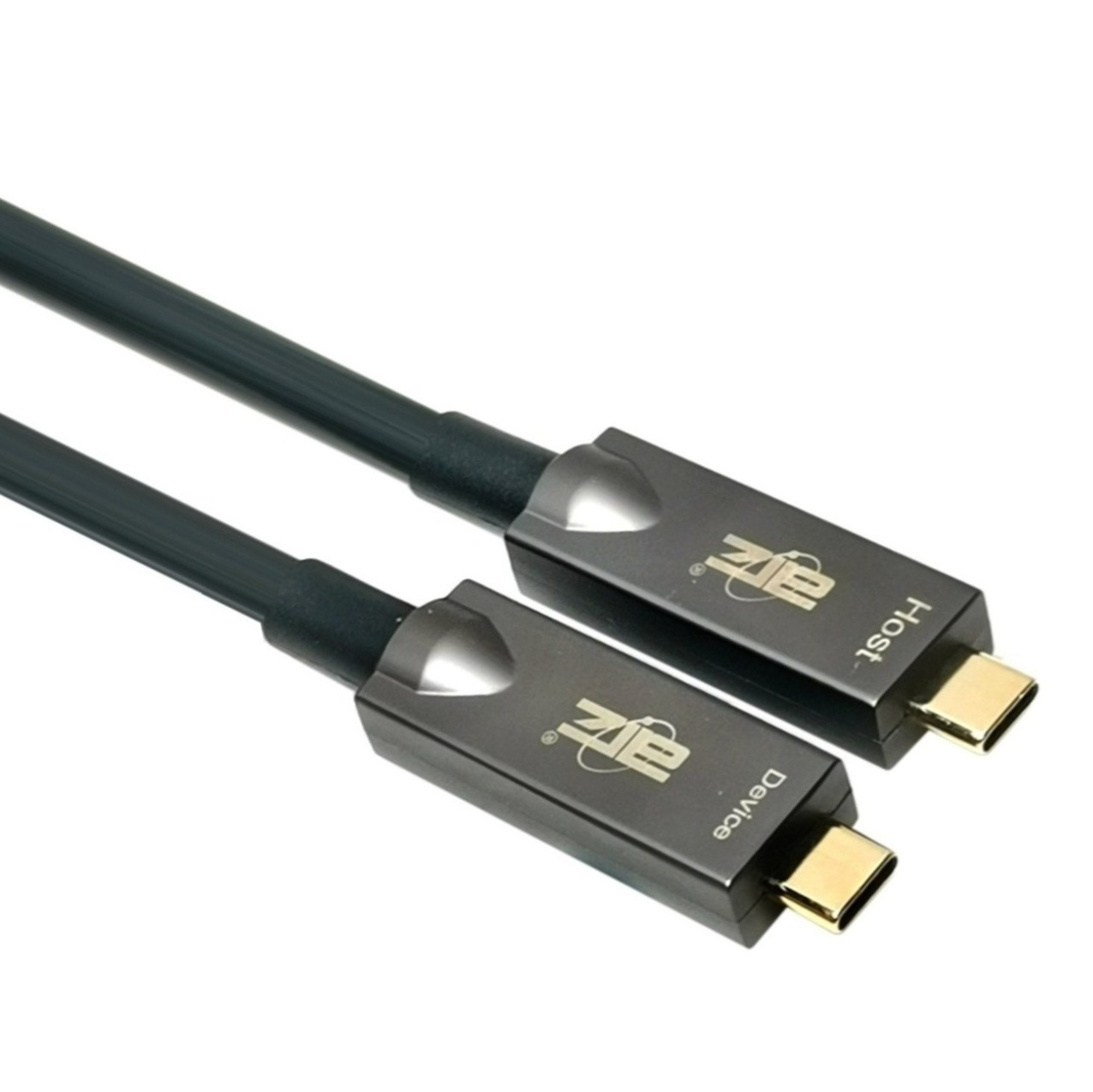

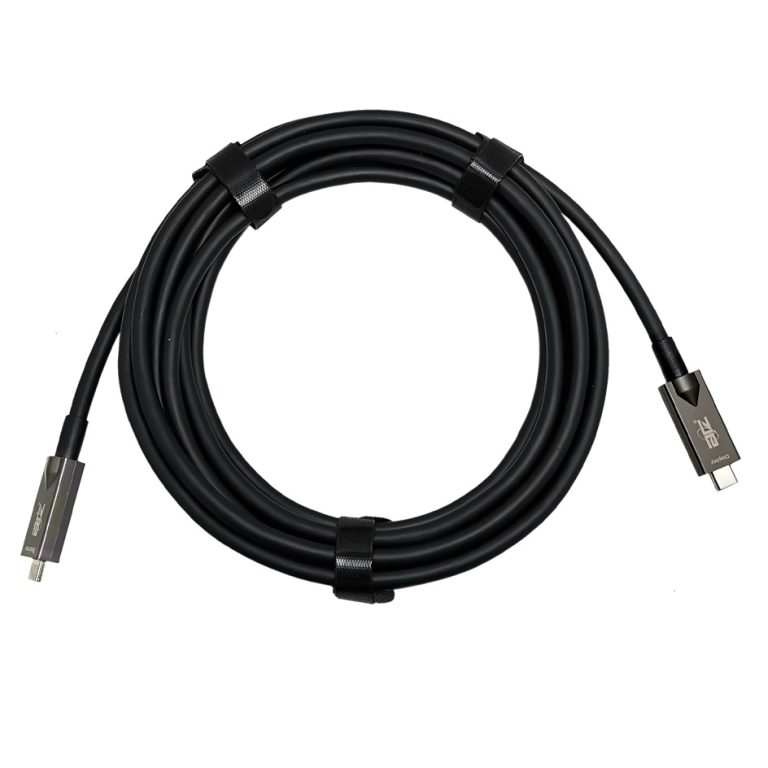

This is a FULL function USB type-C active optical cable (AOC) using optical fiber to replace copper wire as the high-speed signal transmission medium, it can perfectly transmit USB2.0, USB3.2 Gen2 and 2-lane DP1.4 data with excellent signal quality. Compared with the traditional copper wire, it is softer, slimmer, lighter and with perfect EMI/EMC feature. And it also has better reliability performance than copper wire.
Features:
-
- Support USB3.2 Gen2, 10Gbps
- Support US2.0/1.1 High Speed and Full Speed
- Supports all major operating systems: Windows, Mac OS, and Linux
- Support 4K@60Hz in DP 2 lane at DP-Alt mode 8.1Gbps per channel
- Plug and play without driver dependent
- Requires no external power supply
- High reliability
- Thinner, ighter and softer than conventional copper cable
- Highly unaffected by EMI and RFI interference
- Support Power Delivery 50W (20V 3A)
*Remarks: This is a uni-directional cable. Please ensure correct connection with connector ends labelled with to “Host” and to “Device / Display”
Applications:
- Digital Signage
- LED signboards in streets and in stadiums
- Medical Imaging Equipment
- Airplane On-board Video System
- Home Theater
- Blue-ray, 3D video, Projector, Set-up box, DVR
- Game Consoles and Computer
- TV Broadcast Station
- Conference Room Video Equipment
- Security systems
Absolute Maximum Rating
| Parameter | Symbol | Min | Max | Unit |
| Power Supply Voltage | VCC | 3.0 | 5.5 | V |
| Operating Temperature | Top | 0 | 50 | °C |
| Storage Temperature | Ts | -40 | 70 | °C |
| Relative Humidity | Hs | 10 | 80 | %RH |
