$39.00

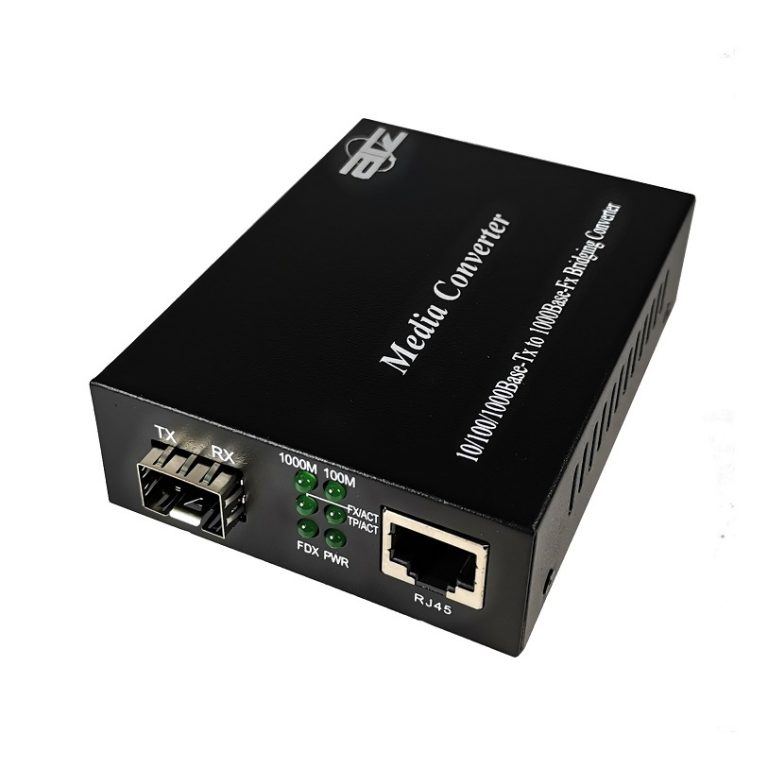

10/100/1000Base-T Ethernet to 1000Base-X fiber media converter with 1 x SFP Slot (w/o SFP transceiver)
Description
ATZ FO-MC-GE-SFP is designed to meet the various needs for extending network segments and is able to extend a copper, based network via fiber cable to a maximum distance up to 80km. (Depending on which SFP is used).
Our converter is fully compliant with IEEE802.3, IEEE802.3U, IEEE802.3z 1000Base-SX/LX, standards. It can be used as IEEE802.3ab, 10/100/1000Base-Tx, and a standalone converter or installed into one of our 14 slot Media Converter chassis. Operation status can be locally monitored through a set of diagnostic.
Features:
- Conversion between different transmission speeds and media types
- Standalone and compact hardware design
- Auto-negotiating Ethernet port (Speed and Half/Full Duplex)
- Auto-crossover Ethernet port (Supports Auto MDI/MDI-X)
- Standard open Fiber slots for SFP Transceiver
- The transmission of extra-long packets over VLAN
- Easy-to-view LED indicators provides status to easily monitor network activity
- Voltage supervisor
- RoHS Compliant
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 10 x 10 x 5 cm |
| Access mode | 10/100/1000Mbps Gigabit Ethernet |
| Optical interface | LC |
| Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
| Wavelength | 850nm/1310nm/1550nm(Option) |
| Ethernet connector | One RJ45 connector, connected to STP/UTP category-5 twisted pair One SFP Port |
| Conversion mode | Medium conversion, storing and forwarding |
| MAC address table | I K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half duplex state: back pressure mode |
| Delay | 9.6us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |

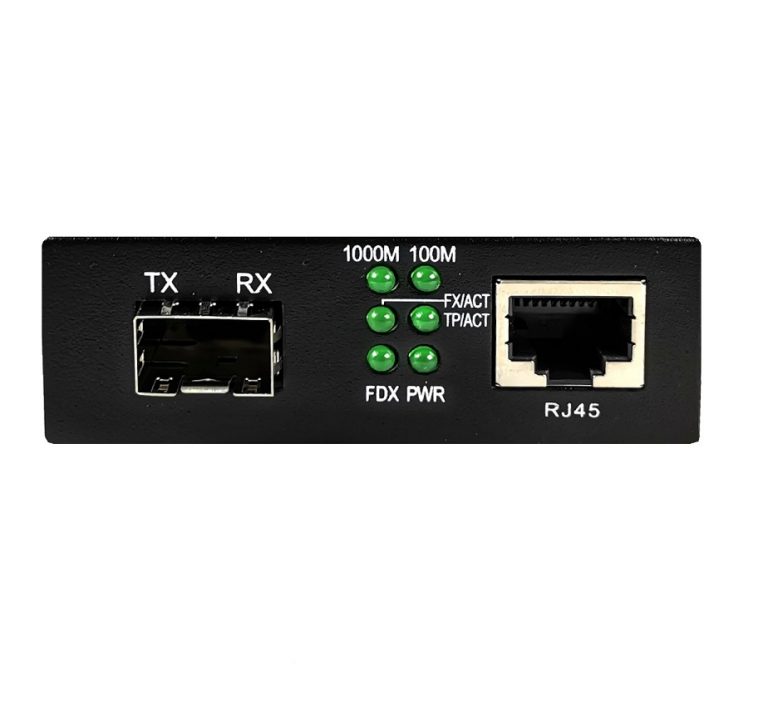

| LED | POWER (power), FX LINK (fiber link action), TP LINK1000 (twisted pair connection 1000M), TP LINK100 (twisted pair connection 100M), TP ACT (twisted pair packet forwarding action) |
| Power | 220V(175-260V)AC, 50Hz
DC:48VDC |
| Power consumption | 5W |
| Operating temperature | -10°C – 55° C |
| Operating humidity | 5%~90% |
| Storage temperature | -40°C – 70° C |
| Storage humidity | 5%~90% (non-condensing) |
| Dimensions | 26mm (H) * 70mm (W) * 94 mm (D) (external power supply) |
